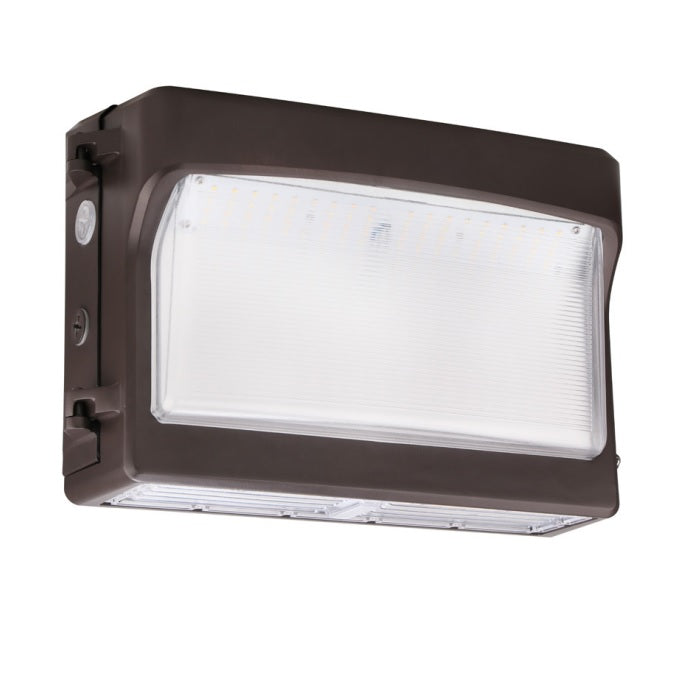

Westgate WPAX-100W-MCTP Wattage and Color Selectable LED Wall Pack Light Fixture Dimmable
Westgate WPAX-100W-MCTP Wattage and Color Selectable LED Wall Pack Light Fixture Dimmable
Specifications
Specifications
| Part Number# | WPAX-100W-MCTP |
|---|---|
| Type of Area: | Apartment Buildings, Industrial & Warehouse, Landscape & Flood, Parking Garage, Hotels, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 7,800 - 13,000 |
| Wattage: | 100 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, IP65 / IP66 / IP67, UL Listed |
| CRI: | ≥ 80 |
| Dimensions: | 14.04" (W) x 9.04" (H) x 5" (D) |
| Width: | 14.04" |
| Height: | 9.04" |
| Dimmable: | Yes |
| Product Warranty: | 7 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's LED Wall Pack Light Fixture is a versatile lighting solution that offers customizable wattage and color options. With its high light transmittance, anti-UV, and fire-resistant PC lens, this fixture ensures both safety and efficiency. The die-cast aluminum construction with a durable powder coat finish in dark bronze not only enhances its longevity but also adds a sleek aesthetic to any outdoor space. Additionally, it features multi-color temperature and power options, with switches conveniently located inside the fixture for hassle-free adjustments to suit your specific lighting needs.
Features:
• High Light Transmittance, Anti-UV, and Fire Resistant PC Lens
• Two 1/2” Knockouts on Each Side
• Die-Cast Aluminum With Powder Coat Finish (Dark Bronze)
• 7-Year Warranty
• Multi CCT and Power (Switches are inside fixture)
• Voltage: 120-277V AC 60Hz
• Wattage: 60W/80W/100W
• Power Factor: >0.9
• THD: <20%
• Efficacy: 130 LPW
• Dimming: 0~10V Dimmable
• Lumileds 2835, High CRI.
• Total Lumens: 13000LM Max
• Color Temperatures: 3000K/4000K/5000K
• Color Rendering Index: CRI ≥ 80
• Beam Angle: H127° x V85°
• Rated life: 70,000 Hrs
• High Light Transmittance, Anti-UV, and Fire Resistant Shatterproof PC Lens
• DC Button Photocell with ON/OFF switch Included
• Operating Temperature: -40ºF -113ºF
• Wet Location
• 7-Year Warranty
• IP65
Applications:
• Entrance Lighting
• Courtyard Lighting
• Industrial Lighting
• Outdoor Landscape Lighting
• Building The hotel
• Wall Lighting Area And So On
