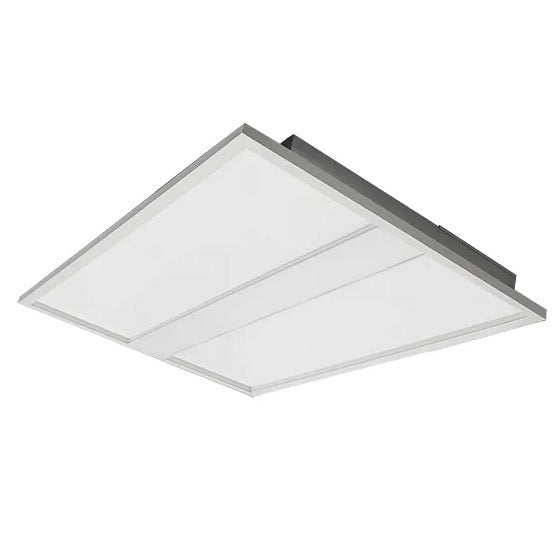

Westgate LTRB Series Wattage and Color Selectable LED Back-Lit Troffer Light Fixture Dimmable
Westgate LTRB Series Wattage and Color Selectable LED Back-Lit Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | LTRB |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hotels, Maintenance Rooms, Commercial Offices, Education, Hospitality, Retail, Banking |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 2,200 - 5,500 |
| Wattage: | 50 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, UL Listed |
| CRI: | ≥ 80 |
| Length: | 23.75" - 47.75" |
| Height: | 11.75" - 23.75" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Westgate's LTRB Series LED Back-Lit Troffer Light is perfect for various indoor commercial applications, from hotels to offices. It provides soft, wide light emission with a rated life of 50,000 hours. Featuring multiple color temperature and power options, this fixture includes pre-installed earthquake and suspension hooks for easy installation. With a beam angle of 110°, no flickering or RF interference, and an external driver mounted on top, it ensures both performance and reliability. The fixture also comes with a 5-year warranty for added peace of mind.
Features:
• Soft and Wide Light-Emitting
• 50,000 Hours Rated Life
• No infrared rays, No Ultraviolet Radiation, No Thermal Effect
• Earthquake hooks and Suspension Hooks Pre-Installed
• No flickering, No humming, No RF interference
• Multi-Color Temperature & Multi Power (Selectable Switch on Back of Fixture)
• Total Lumens (2x2 Model): 2200LM/ 3300LM/ 4400LM

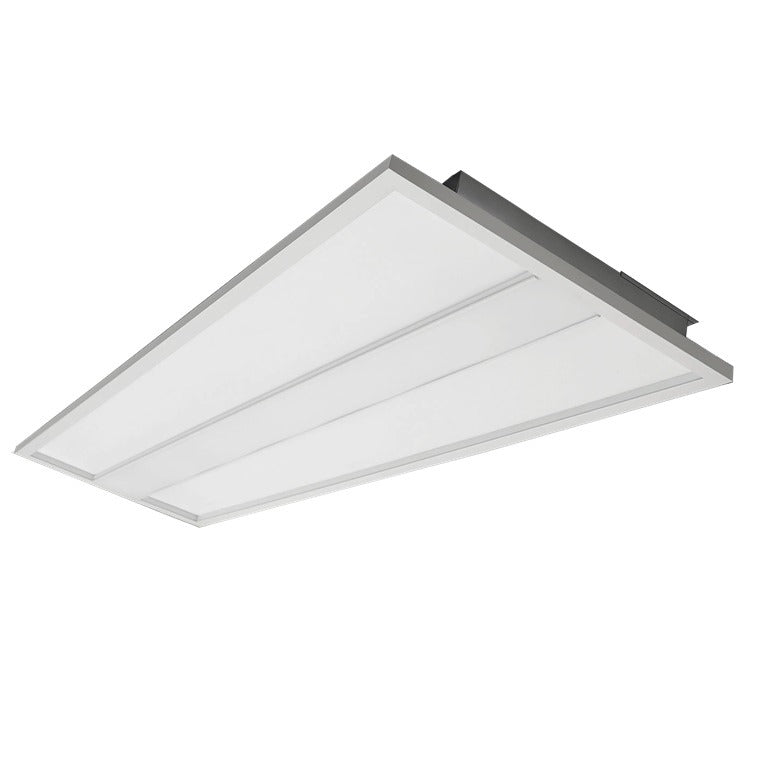

• Total Lumens (1x4 Model): 2600LM/ 3800LM/ 4800LM

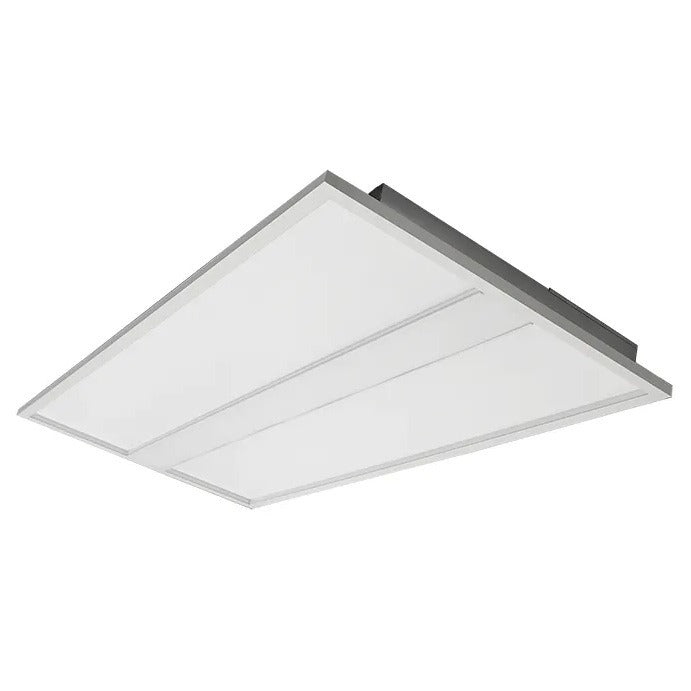

• Total Lumens (2x4 Model): 3300LM/ 4400LM/ 5500LM
• Color Temperatures: 3500K/ 4000K/ 5000K
• Multi CCT & Multi Power (selectable switch on back of fixture)
• 5-Year Warranty
• Beam Angle: 110°
• Earthquake Hooks and Suspension Hooks pre-installed
• External driver mounted on top
• IP Rating: IP20 (Indoor use only)
• Rated life: 50,000 hrs
