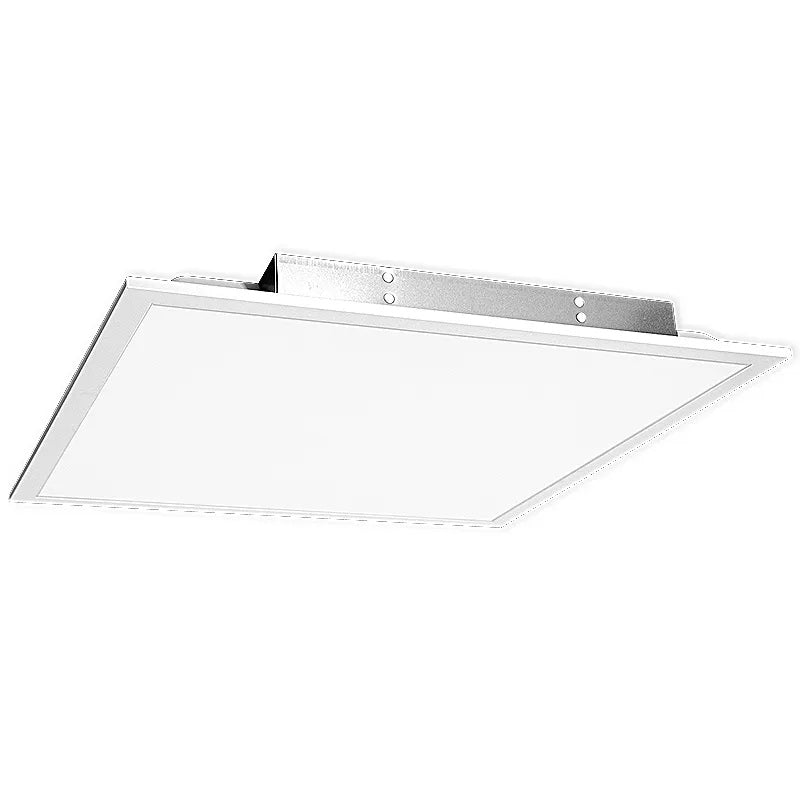

Westgate LPNG-2X2-MCTP4 DLC Listed Multi-Power and Multi-Color 2X2 LED Backlit Panel Light Dimmable
Westgate LPNG-2X2-MCTP4 DLC Listed Multi-Power and Multi-Color 2X2 LED Backlit Panel Light Dimmable
Specifications
Specifications
| Part Number# | LPNG-2X2-MCTP4 |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hotels, Maintenance Rooms, Commercial Offices, Education, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 2,200 - 4,400 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, UL Listed |
| CRI: | ≥ 80 |
| Dimensions: | 23.8" x 1.75" x 23.8" |
| Width: | 1.75" |
| Length: | 23.8" |
| Height: | 23.8" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Westgate |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
Westgate's LPNG LED Backlit Panel Light emerges as an exceptional option for a variety of commercial indoor settings, encompassing hotels, offices, retail establishments, restaurants, parking structures, storage areas, conference rooms, educational facilities, and more. It comes equipped with adjustable wattage settings (20W/30W/40W) and diverse color temperature options (3000K/3500K/4000K/5000K). Delivering safe and highly efficient illumination at 110 lumens per watt, this lighting solution is devoid of infrared rays, ultraviolet radiation, and thermal effects. With a highly recommended 50,000-hour rated life and a 5-year warranty, it stands out as a reliable choice for lighting needs.
Features:
• Soft and Wide Light-Emitting
• No infrared rays, No Ultraviolet Radiation, No Thermal Effect
• 50,000 Hours Rated Life
• No flickering, No humming, No RF interference
• Earthquake hooks and Suspension Hooks Pre-Installed
• Multi Color Temperature & Multi Power (Selectable Switch on Back of Fixture)
Lighting:
• Dimmable: 0~10V Dimming
• Total Lumens: 2200LM/ 3300LM/ 4400LM
• Color Temperatures: 3000K/ 3500K/ 4000K/ 5000K
• Color Rendering Index: CRI ≥ 80
• 5-Year Warranty
• Beam Angle: 110°
Electrical:
• Voltage: AC120V-277V 50/60Hz
• Power Factor: >0.90
• Wattage: 20W/ 30W/ 40W
• Efficacy: 110 LPW
• Fixture Operating Voltage: 36VDC
• Rated Input Current (mA): 337/ 253/ 168mA
• Total Harmonic Distortion: ≤ 20 %
Mechanical:
• White Finish
• Earthquake Hooks and Suspension Hooks pre-installed
• External driver mounted on top
• Operating Temperature: -68ºF~104ºF
• Surge Protector: 1KV
• Rated life: 50,000 hrs
