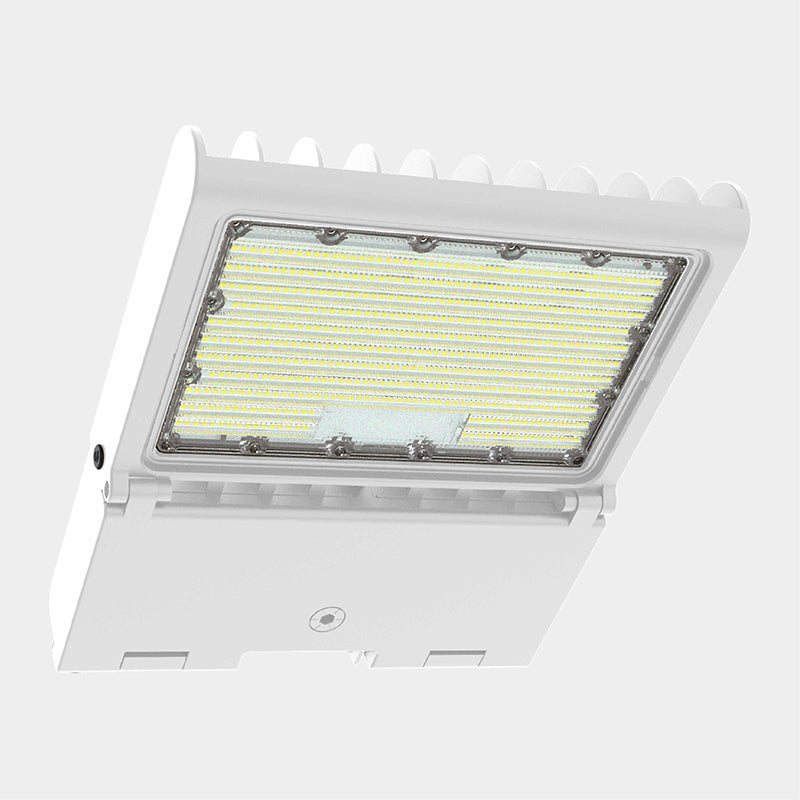

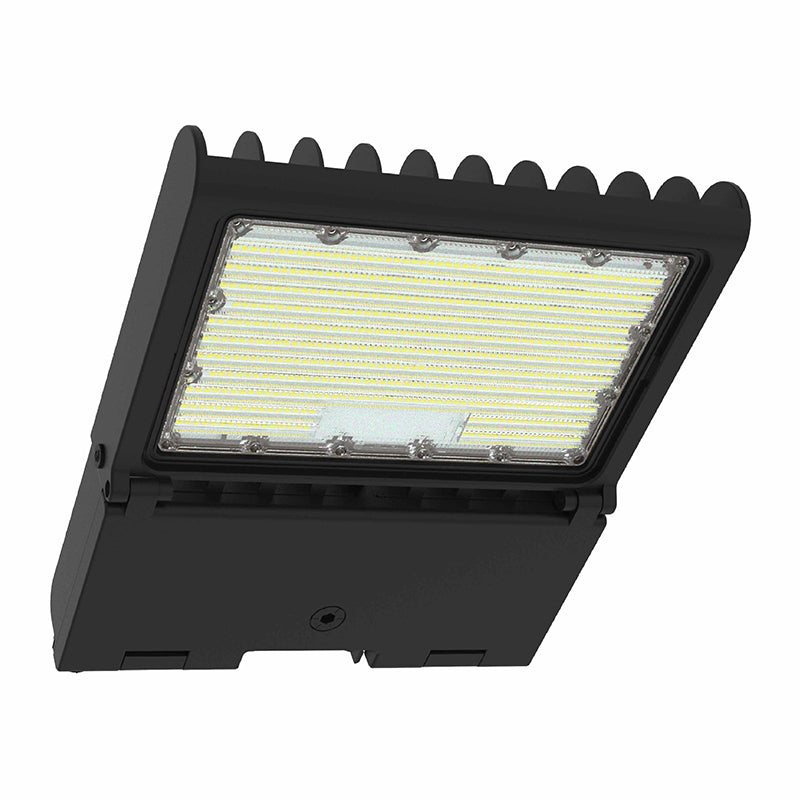

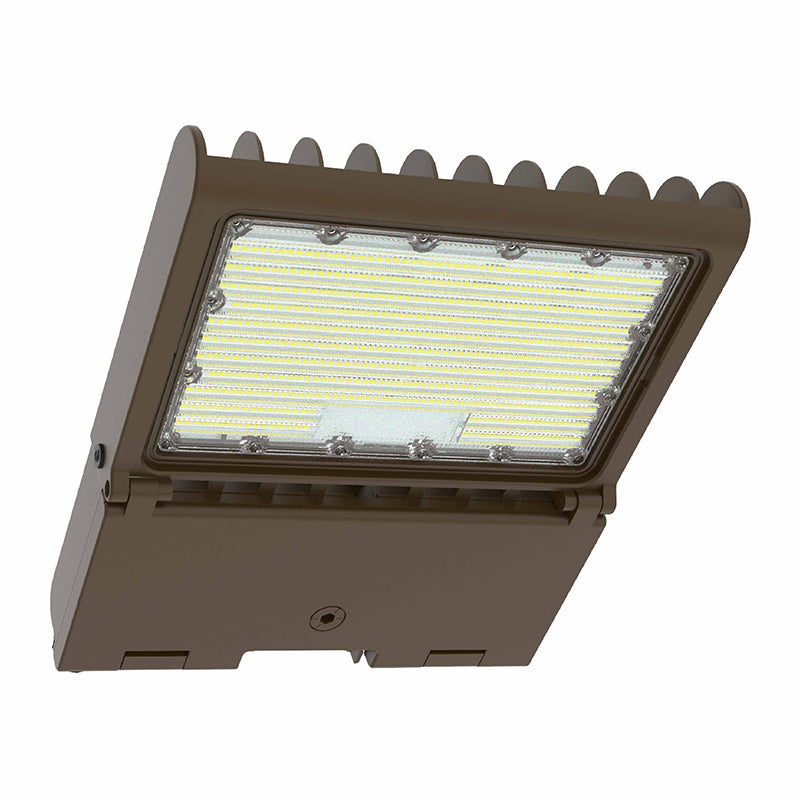

Westgate LFXPRO-LG-50-150W-MCTP DLC Listed LED Flood Light Fixture Dimmable with Adjustable Power and Color
Westgate LFXPRO-LG-50-150W-MCTP DLC Listed LED Flood Light Fixture Dimmable with Adjustable Power and Color
Specifications
Specifications
Part Number# | LFXPRO-LG-50-150W-MCTP |
---|---|
Type of Area: | Apartment Buildings, Landscape & Flood, Large Retail & Open Areas, Pole / Street / Parking Lot, Wall Mount & Building Exteriors |
Lamp Life: | 50,000+ Hours |
Lumen Output: | 6,800 - 19,200 |
Ballast Start Type: | Instant Start |
Certifications | 150W HID Equivalent, 175W HID Equivalent, 250W HID Equivalent, 320W HID Equivalent, Dimmable, DLC Approved, IP65 / IP66 / IP67, UL Listed |
CRI: | 70 |
Dimensions: | 14.88" x 12.63" x 3.38" |
Width: | 12.63" |
Length: | 14.88" |
Height: | 3.38" |
Dimmable: | Yes |
Product Warranty: | 7 Year |
Minimum Start Temperature: | -40 Deg F |
Voltage: | Multivolt 120V-277V |
Weight Each: | 8.6 lbs (Max Weight) |
Manufacturer: | Westgate |
Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
This Flood Light Fixture is power and color adjustable suitable for general site lighting, alleys, loading docks, doorway, pathway and parking areas. Built in durable housing with high light transmittance replacing up to 320W of existing HID flood light or wall packs. Excellent fixture delivering 6,800-19,200 lumens at 70 CRI with 70,000 hours rated life and backup by 7-year warranty.
Features:
• LED FLood Light
• With snap-on & bolt mounting options for one-person Installations.
• Select a mounting option (Sold separately)
• 70,000 Hours Rated Life
• 7-Year Warranty
• Optic Lens Type: III
• Multi-CCT & Multi-Power - The Switches are on the Bottom of the Fixture
Lighting:
• Dimmable: 0~10V
• Solid State Lighting technology for long life, no Maintenance needed and High-Efficiency
• Lens Type: Optical TYPE III Lens, High Light Transmittance PC, Anti-UV and Flame Resistant
• Cord Type: 3.2’ SJTW 18/3 AWG cable
• Total lumens: 19200LM Max.
• Color temperature: 3000K/ 4000K/ 5000K/ 5700K
• Color rendering index: CRI ≥ 70
• Beam Angle:90°x120°
Electrical:
• Voltage: 100-277V AC 50/60Hz
• Wattage: 50W/ 80W/ 100W/ 150W
• Power Factor: >0.9
• Output Current: 0.25A
• Efficacy: 125 LPW
• THD: <20%
