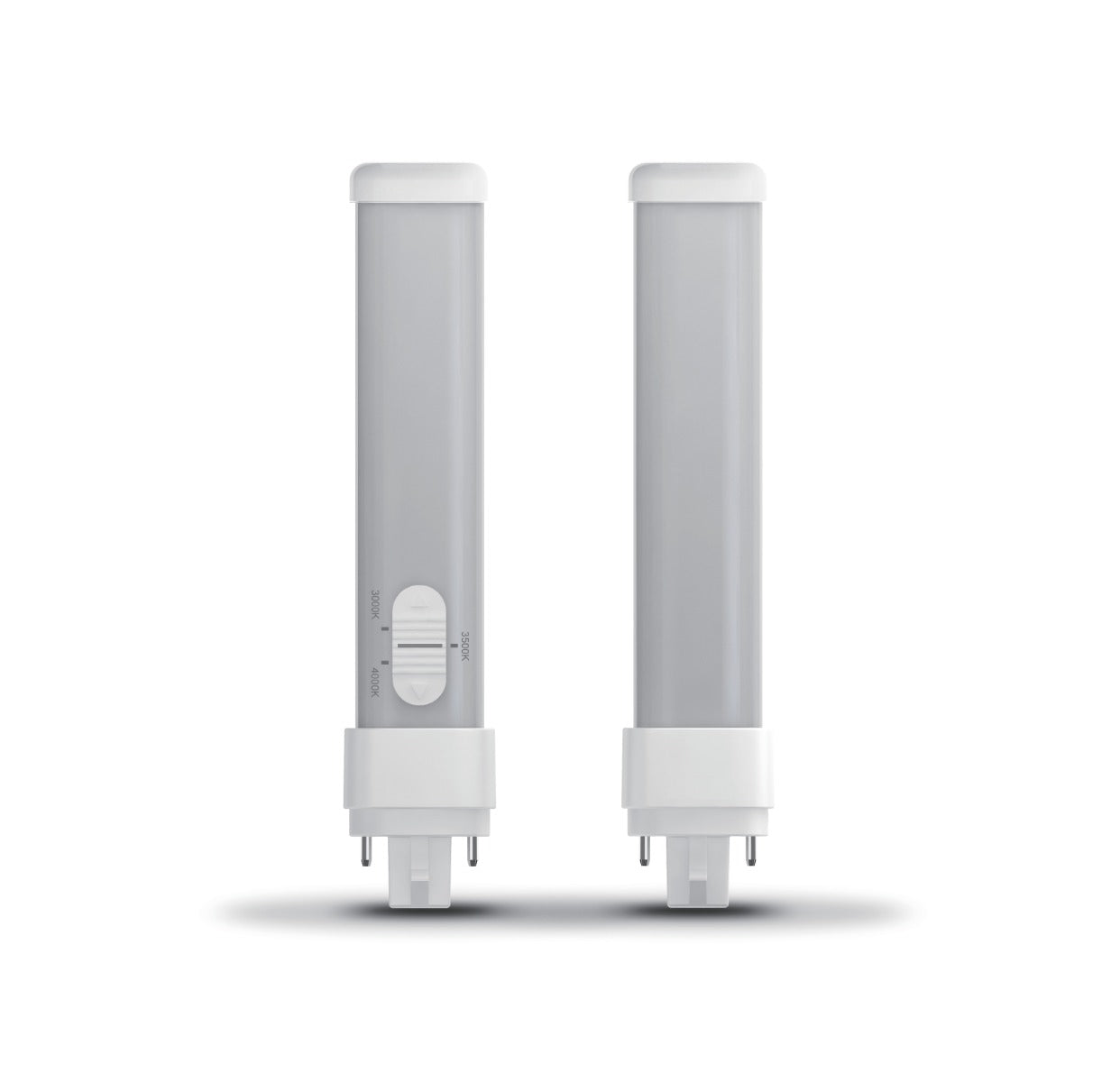

TopStar PLCH26G24Q-8CW-09P-P6-EB DLC Listed 9.5W LED PLC Lamp – G24Q Base, Horizontal, Color Selectable, Plug & Play, Rotatable, Replaces 13–42W CFL
TopStar PLCH26G24Q-8CW-09P-P6-EB DLC Listed 9.5W LED PLC Lamp – G24Q Base, Horizontal, Color Selectable, Plug & Play, Rotatable, Replaces 13–42W CFL
Specifications
Specifications
| Part Number# | PLCH26G24Q-8CW-09P-P6-EB |
|---|---|
| Type of Area: | Schools, Stairwell, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,050 |
| Wattage: | 9 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, DLC Approved, UL Listed |
| CRI: | 82 |
| Dimensions: | 6.4" |
| Length: | 6.4" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Manufacturer: | TopStar |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The TopsTar LED CCT Selectable Lamp is a plug-and-play PLC replacement designed for direct installation. It features a horizontal 6.4" design with a high efficiency of 91.31 lm/W, delivering 1050 lumens at 11.5W. The lamp offers selectable color temperatures of 3000K, 3500K, and 4000K, and is DLC listed. It is compatible with electronic ballasts ranging from 13W to 42W and supports G24q and GX24q (4-pin) base installations. A rotatable base ensures flexible positioning for various applications.
Features:
• 13W/18W/26W/32W/42W CFL replacement
• DLC qualified for energy saving (for G24q only)
• Extra long 50,000 Hours lifetime
• Rotatable Base, max 270° (horizontal lamp)
• Power factor > 0.9
• 5 Years’ warranty
• Operating Temperature: -20°C/-4°F to 35°C /95°F
• Excellent compatibility with most electronic ballasts (for G24q only)
• Non-Dimmable (G24d lamps)
• Not for Use in Fully Enclosed Fixtures
• Non-IC condition
• Compatible with G24d/GX24d & G24q/GX24q installations
