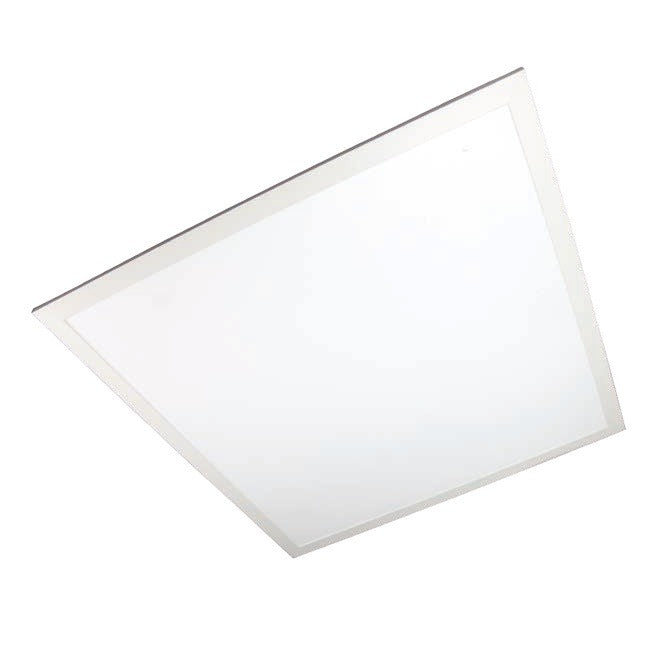

TCP Lighting DTF2UZDSW2CCT 2x2 Wattage and Color Selectable LED Back-lit Troffer Light Fixture Dimmable
TCP Lighting DTF2UZDSW2CCT 2x2 Wattage and Color Selectable LED Back-lit Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | DTF2UZDSW2CCT |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hospitals, Hospitality, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,600 - 4,200 |
| Wattage: | 32 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 24" x 24" x 2.75" |
| Width: | 24" |
| Length: | 24" |
| Height: | 2.75" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | TCP Lighting |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
TCP Lighting's DTF 2x2 LED Back-lit Troffer is a wattage and color-selectable fixture designed as a cost-effective, high-efficiency replacement for traditional fluorescent troffers. Its backlit technology ensures full panel diffusion and uniform illumination, outperforming edge-lit panels in both aesthetics and performance. Ideal for offices, schools, retail spaces, and commercial ceilings, the troffer features a frosted diffuser for reduced glare, a 120° beam angle, and easy installation into standard T-bar grid ceilings. With 0-10V dimming, IC and IP20 ratings, and a 50,000-hour rated lifespan, it offers long-lasting, energy-efficient lighting with flexible configuration options.
Features:
• Backlit technology provides even, uniform lighting
• 120° beam angle
• Frosted diffuser for reduced glare and aesthetic appeal
• Meets or exceeds the look and performance of edge-lit panels
• IP20 rated
• IC rated for direct contact with insulation
• Designed for easy drop into T-bar grid ceilings
• 0-10V dimming driver (standard)
• LED driver with integrated junction box
• System rated for long 50,000 hour life
