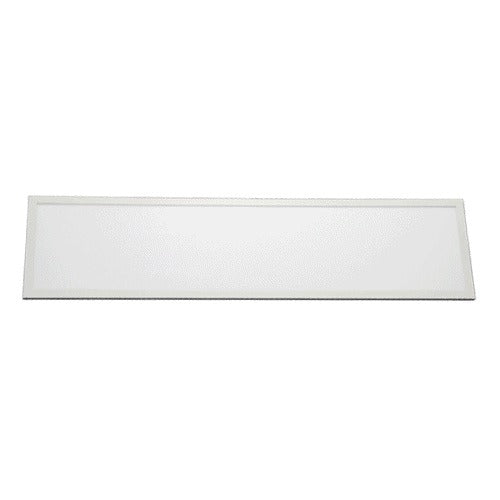

TCP Lighting DTF1UZDSW2CCT 1x4 Wattage and Color Selectable LED Back-lit Troffer Light Fixture Dimmable
TCP Lighting DTF1UZDSW2CCT 1x4 Wattage and Color Selectable LED Back-lit Troffer Light Fixture Dimmable
Specifications
Specifications
| Part Number# | DTF1UZDSW2CCT |
|---|---|
| Type of Area: | Office & Small Retail, Schools, Hospitals, Hospitality, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 2,600 - 4,200 |
| Wattage: | 36 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 48" x 12" x 2.75" |
| Width: | 12" |
| Length: | 48" |
| Height: | 2.75" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | TCP Lighting |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
TCP Lighting's DTF 1x4 LED Back-lit Troffer is a wattage and color-selectable fixture designed to replace traditional T5, T8, and T12 fluorescent troffers with a slim, energy-efficient solution. Utilizing backlit technology, it provides full panel diffusion and superior uniformity, delivering even, glare-free lighting with a frosted diffuser and a 120° beam angle. Perfect for commercial applications such as offices, schools, and retail spaces, the troffer installs easily into T-bar grid ceilings and is rated for damp locations, IC contact, and IP20. Equipped with a 0-10V dimming driver and an integrated junction box, it offers a long service life of 50,000 hours while maintaining excellent performance and aesthetic appeal.
Features:
• Backlit technology provides even, uniform lighting
• 120° beam angle
• Frosted diffuser for reduced glare and aesthetic appeal
• Meets or exceeds the look and performance of edge-lit panels
• IP20 rated
• IC rated for direct contact with insulation
• Designed for easy drop into T-bar grid ceilings
• UL/cUL damp location rated
• 0-10V dimming driver (standard)
• LED driver with integrated junction box
• System rated for long 50,000 hour life
