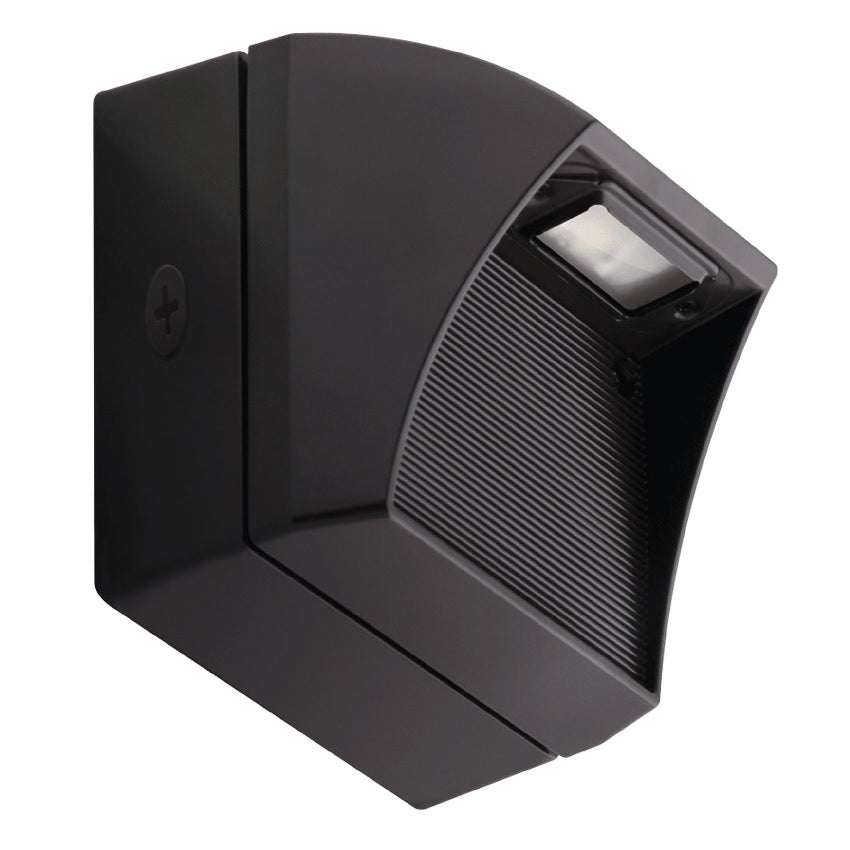

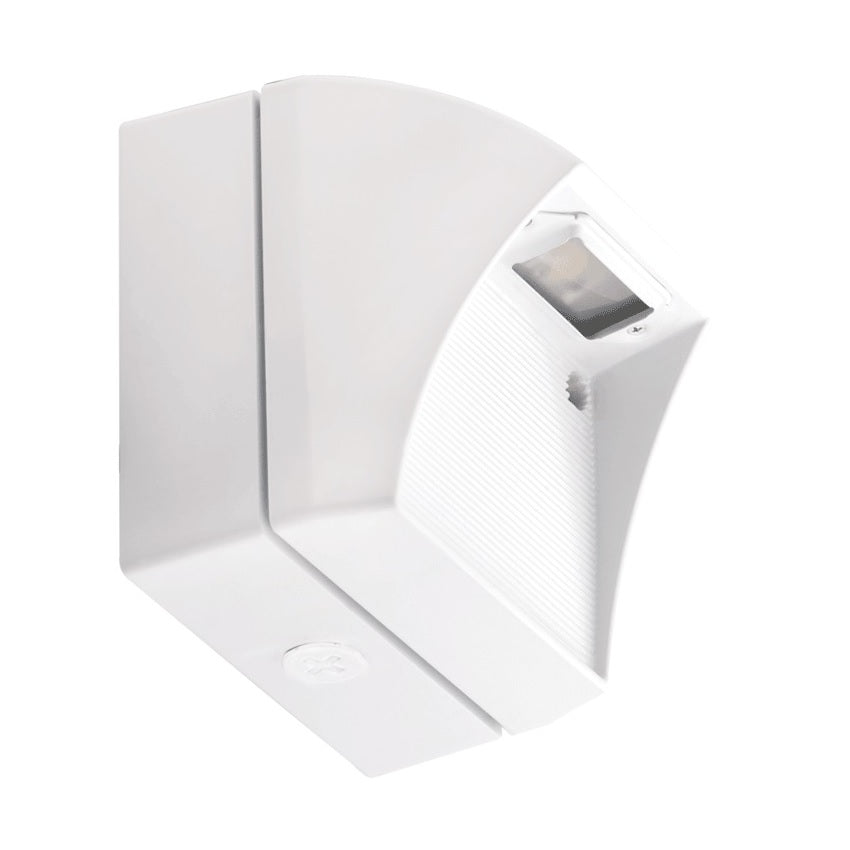

RAB Lighting WPLED5 5 Watt LED Wallpack Light Fixture 120-277V
RAB Lighting WPLED5 5 Watt LED Wallpack Light Fixture 120-277V
-
Specsheet:
Specifications
Specifications
| Part Number# | WPLED5 |
|---|---|
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 128-196 |
| Ballast Factor: | 1.00 |
| Wattage: | 5 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 50W HID Equivalent, IP65 / IP66 / IP67, Lighting Facts, LM79 / LM80, Made In America Compliant, UL Listed, Title 24 Compliant |
| CRI: | 69 (5000K) >80 (3000K and 4000K) |
| Dimensions: | 5.00" x 2.375" |
| Length: | 5.00" |
| Height: | 2.375" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 3.30 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
With only 5 watts RAB's energy efficient LED wallpack replaces a 13W CFL or 60W incandescent. Made with a durable, die-cast aluminum housing and a thermal managment system designed to maintain low operating temperatures and provide a long life of 100,000 hours. It delivers a range of 128-196 lumens depending on your choice of color temperature. This fixture is UL Listed and includes a 5 year warranty.
Listings:
• UL Listing: Suitable for wet locations in downlight position only. Suitable for mounting within 1.2m (4ft) off the ground.
• IESNA LM-79 & IESNA LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and 80, and have received the Department of Energy "Lighting Facts" label.
• California Title 24: See WPLED5/PCS with swivel photocell for a 2013 California Title 24 compliant model.
LED Characteristics:
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• Color Consistency: 7-step (5000K) and 3-step (4000K and 3000k) MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT (Correlated color temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2008.
Constuction:
• IP Rating: Ingress Protection rating of IP66 for dust and water.
• Finish: Environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, contains no VOC or toxic heavy metals.
• Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures.
• Thermal Management: Integral cast aluminum mounting pad for optimum heat sinking to ensure cool operation with maximum LED life and light output.
• Housing: Precision die cast aluminum housing and mounting plate. 1 1/2" backbox with three 1/2" conduit entry points.
• Green Technology: RAB LEDs are Mercury and UV free.
Product Numbers:
WPLED5, WPLED5/PCS
WPLED5N, WPLED5N/PCS
WPLED5NW, WPLED5NW/PCS
WPLED5W, WPLED5W/PCS
WPLED5Y, WPLED5Y/PCS
WPLED5YW, WPLED5YW/PCS
