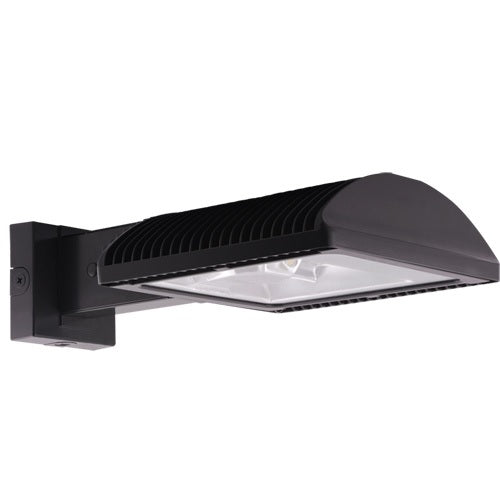

RAB Lighting WPLED4T78 78 Watt LED Wallpack Light Fixture Type IV Distribution
RAB Lighting WPLED4T78 78 Watt LED Wallpack Light Fixture Type IV Distribution
-
Specsheet:
Specifications
Specifications
| Part Number# | WPLED4T78/D10/WS2 |
|---|---|
| Type of Area: | Large Retail & Open Areas, Pole / Street / Parking Lot |
| Color Temp: | 5100K - Daylight White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 10,157 |
| Ballast Factor: | 1.00 |
| Wattage: | 78 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 400W HID Equivalent, ANSI, Dark Sky Compliant, IP65 / IP66 / IP67, Lighting Facts, LM79 / LM80, Made In America Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | 67 |
| Dimensions: | 25.42" X 15.00" X 6.631" |
| Width: | 15.00" |
| Length: | 25.42" |
| Height: | 6.631" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Weight Each: | 34.75 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB Lighting's 78-watt high-efficiency wall pack offers excellent cost savings and is ideal for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas with its Type IV distribution and semicircular distribution. Made with a durable, die-cast aluminum housing and a thermal management system designed to maintain low operating temperatures, efficient output, and a long LED life of 100,000 hours. It delivers 10,157 lumens with a variety of color temperature options. This fixture is DLC qualified, eligible for utility rebates, and Dark Sky Approved with a 5-year warranty. The optional dimmable driver requires a separate 0-10V DC Dimming circuit. Bi-Level operation allows 33%-66%-and 100% output modes.
Listings:
• Dark Sky Approved: The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire.
• UL Listing: Suitable For Wet Locations.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• California Title 24: See WPLED4T78/BL for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
Construction:
• The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semi-circular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
• IP Rating: Ingress Protection rating of IP66 for dust and water.
• Ambient Temperature: Suitable for use in 40°C ambient temperatures.
• Cold Weather Starting: The minimum starting temperature is -40°F/-40°C.
• Thermal Management Housing: Superior thermal management with external Air-Flow fins.
• Housing: Die-cast aluminum housing, lens frame, and mounting arm.
• Mounting: Heavy-duty mounting arm with O ring seal & stainless steel screw.
• Reflector: Specular vacuum-metalized polycarbonate.
• Gaskets: High-temperature silicone gaskets.
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals.
• Green Technology: Mercury and UV-free, and RoHS-compliant.
• For use on LEED Buildings: IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction.
