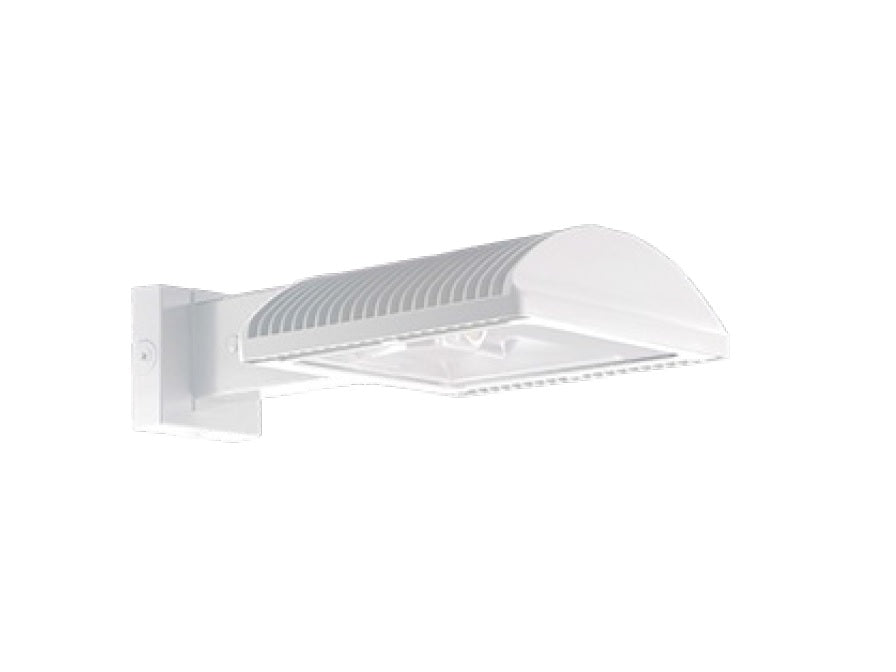

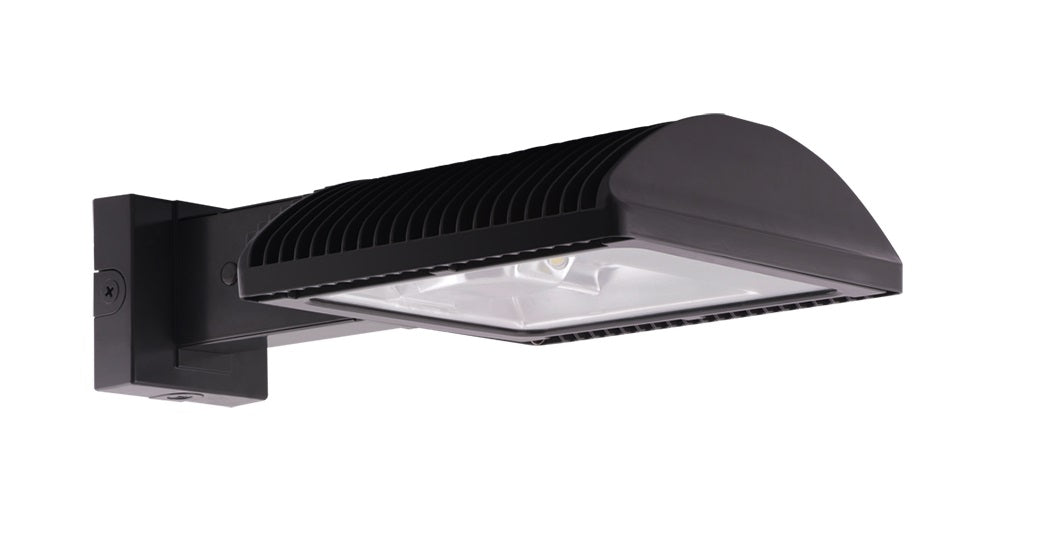

RAB Lighting WPLED4T125 125 Watt LED Wallpack Light Fixture Type IV Distribution
RAB Lighting WPLED4T125 125 Watt LED Wallpack Light Fixture Type IV Distribution
-
Specsheet:
Specifications
Specifications
| Part Number# | WPLED4T125 |
|---|---|
| Type of Area: | Wall Mount & Building Exteriors |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 10,952-12,513 |
| Ballast Factor: | 1.00 |
| Wattage: | 125 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 320W HID Equivalent, ANSI, Dark Sky Compliant, DLC Approved, IP65 / IP66 / IP67, Lighting Facts, LM79 / LM80, Made In America Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | 65 |

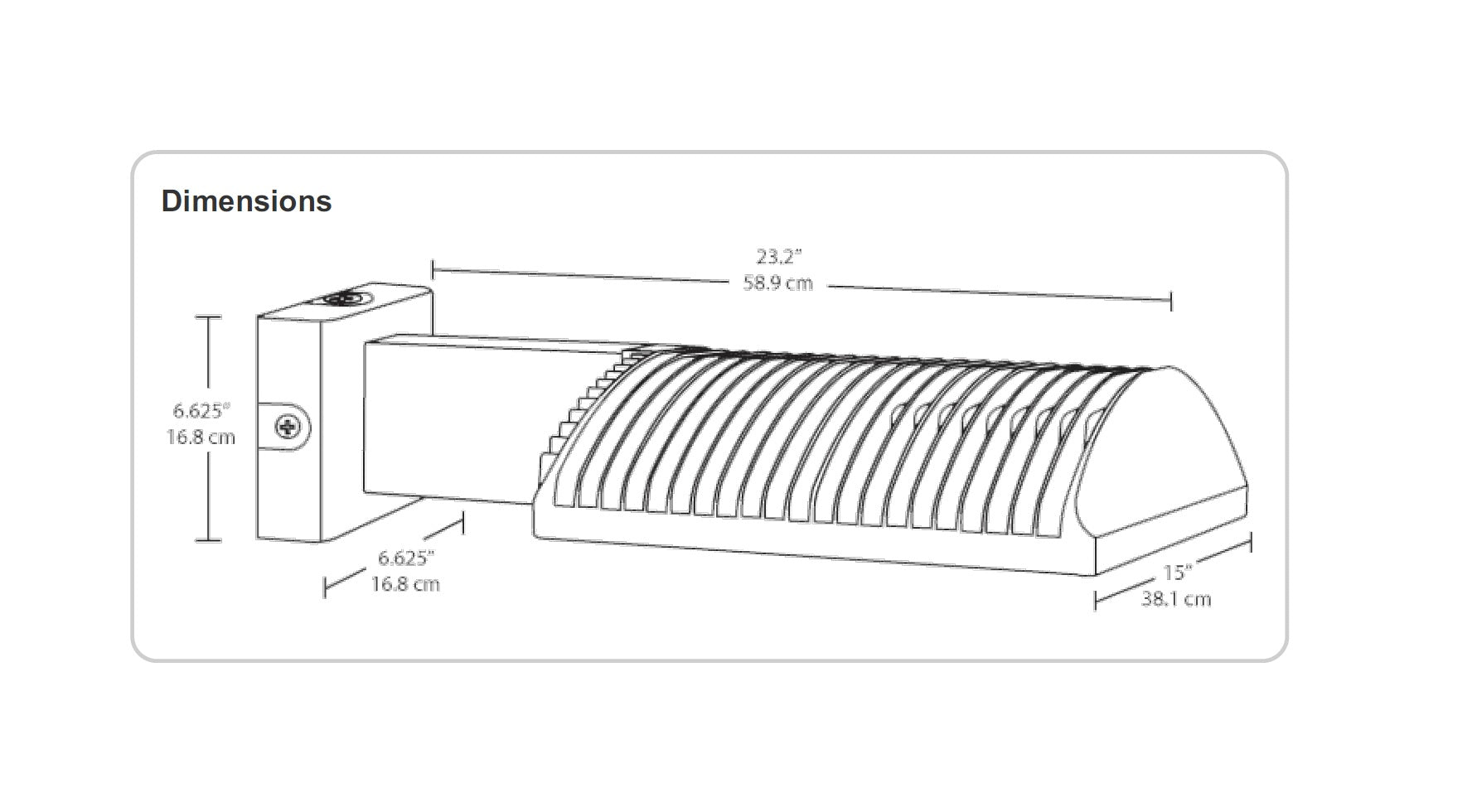

| Dimensions: | 23.20" X 15.00" X 6.625" |
| Width: | 15.00" |
| Length: | 23.20" |
| Height: | 6.625" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Weight Each: | 34.75 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB Lighting's 125 watt high efficiency wallpack offers excellent cost savings and is ideal for mounting on the sides of buildings and walls, illuminating the perimeter of parking areas with its Type IV distribution. Made with a durable, die-cast aluminum housing and a thermal managment system designed to maintain low operating temperatures, efficient output, and a long LED life of 100,000 hours. It delivers 10,952-12,513 lumens with a variety of color temperature options. This fixture is DLC qualified, eligible for utility rebates, and Dark Sky Approved with a 5 year warranty.
Note: The WPLED4T125 Wallpack fixtures with a 0-10V dimmable driver are NOT DLC listed or Dark Sky Approved. Additionally, the WPLED4T125 fixtures operating with 480V are also NOT DLC listed.
Listings:
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Excluding the WPLED4T125 with a 0-10V dimmable driver and the WPLED4T125 operating with 480V.
• Dark Sky Approved: The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire. Excluding the WPLED4T125 with a 0-10V dimmable driver.
• UL Listing: Suitable For Wet Locations.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• California Title 24: See WPLED4T125/D10 or WPLED4T125/BL for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
Construction:
• The Type IV distribution (also known as a Forward Throw) is especially suited for mounting on the sides of buildings and walls, and for illuminating the perimeter of parking areas. It produces a semiCircular distribution with essentially the same candlepower at lateral angles from 90° to 270°.
• IP Rating: Ingress Protection rating of IP65 for dust and water.
• Ambient Temperature: Suitable for use in 40°C ambient temperatures.
• Cold Weather Starting: The minimum starting temperature is -40°F/-40°C.
• Thermal Management Housing: Superior thermal management with external Air-Flow fins.
• Housing: Die-cast aluminum housing, lens frame and mounting arm.
• Mounting: Heavy-duty mounting arm with O ring seal & stainless steel screw.
• Reflector: Specular vacuum-metallized polycarbonate.
• Gaskets: High-temperature silicone gaskets.
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant.
• For use on LEED Buildings: IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction.
Product SKU's:
WPLED4T125, WPLED4T125/BL, WPLED4T125/D10, WPLED4T125/PC, WPLED4T125/PC2, WPLED4T125/PCS
WPLED4T125/PCS2, WPLED4T125/PCT, WPLED4T125FX, WPLED4T125FX/BL, WPLED4T125FX/D10,
WPLED4T125FX/PCS2, WPLED4T125FXW, WPLED4T125FXW/BL, WPLED4T125FXW/D10, WPLED4T125FXW/PCS,
WPLED4T125FXW/PCS2, WPLED4T125FXW/PCS2, WPLED4T125N, WPLED4T125N/BL, WPLED4T125N/D10,
WPLED4T125N/PC2, WPLED4T125N/PCS, WPLED4T125N/PCS2, WPLED4T125N/PCT, WPLED4T125NFX,
WPLED4T125NFX/D10, WPLED4T125NFX/PCS, WPLED4T125NFX/PCS2, WPLED4T125NFXW, WPLED4T125NFXW/BL,
WPLED4T125NFXW/D10, WPLED4T125NFXW/PCS, WPLED4T125NFXW/PCS2, WPLED4T125NW, WPLED4T125NW/BL,
WPLED4T125NW/D10, WPLED4T125NW/PC, WPLED4T125NW/PC2, WPLED4T125NW/PCS2, WPLED4T125NW/PCS
WPLED4T125NW/PCT, WPLED4T125W, WPLED4T125W/BL, WPLED4T125W/D10, WPLED4T125W/PC,
WPLED4T125W/PCS, WPLED4T125W/PCS2, WPLED4T125W/PCT, WPLED4T125Y, WPLED4T125Y/BL,
WPLED4T125Y/PC, WPLED4T125Y/PC2, WPLED4T125Y/PCS, WPLED4T125Y/PCS2, WPLED4T125Y/PCT,
WPLED4T125YFX/BL, WPLED4T125YFX/D10, WPLED4T125YFX/PCS, WPLED4T125YFX/PCS2, WPLED4T125YFXW
WPLED4T125YFXW/BL, WPLED4T125YFXW/D10, WPLED4T125YFXW/PCS, WPLED4T125YFXW/PCS2, WPLED4T125YW
WPLED4T125YW/BL, WPLED4T125YW/D10, WPLED4T125YW/PC, WPLED4T125YW/PC2, WPLED4T125YW/PCS,
WPLED4T125YW/PCS2, WPLED4T125YW/PCT, WPLED4T125/480, WPLED4T125/480/PCS4, WPLED4T125/480/PCT4
WPLED4T125FX/480, WPLED4T125FX/480/PCS4, WPLED4T125FXW/480, WPLED4T125FXW/480/PCS4, WPLED4T125N/480
WPLED4T125N/480, WPLED4T125N/480/PCS4, WPLED4T125N/480/PCT4, WPLED4T125NFX/480,
WPLED4T125NFXW/480, WPLED4T125NFXW/480/PCS4, WPLED4T125NW/480, WPLED4T125NW/480/PCS4,
WPLED4T125W/480, WPLED4T125W/480/PCS4, WPLED4T125W/480/PCT4, WPLED4T125Y/480, WPLED4T125Y/480/PCS4
WPLED4T125Y/480/PCT4, WPLED4T125YFX/480, WPLED4T125YFX/480/PCS4, WPLED4T125YFXW/480,
WPLED4T125YW/480, WPLED4T125YW/480/PCS4, WPLED4T125YW/480/PCT4, WPLED4T125FX/PCS, WPLED4T1250N/PC,
WPLED4T125NFX/BL, WPLED4T125W/PC2, WPLED4T125Y/D10, WPLED4T125YFX, WPLED4T125NW/480/PCT4
WPLED4T125YFXW/480/PCS4, WPLED4T125NFX/480/PCS4
