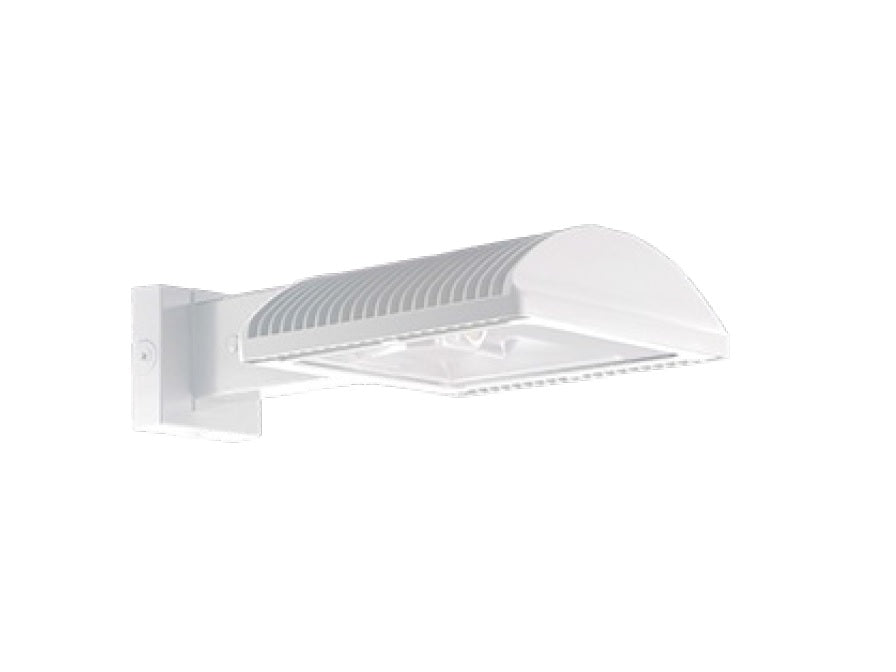

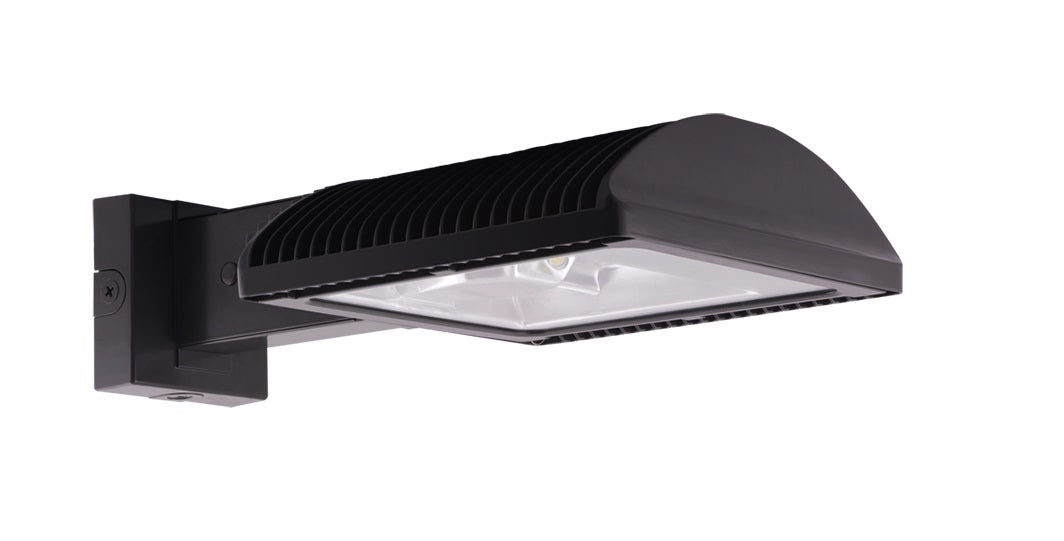

RAB Lighting WPLED2T105 105 Watt LED Wallpack Light Fixture Type II Distribution
RAB Lighting WPLED2T105 105 Watt LED Wallpack Light Fixture Type II Distribution
-
Specsheet:
Specifications
Specifications
| Part Number# | WPLED2T105 |
|---|---|
| Type of Area: | Wall Mount & Building Exteriors |
| Color Temp: | 5000K - Daylight White |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 13,213 |
| Ballast Factor: | 1.00 |
| Wattage: | 100 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 320W HID Equivalent, ANSI, Dark Sky Compliant, DLC Approved, IP65 / IP66 / IP67, Lighting Facts, LM79 / LM80, Made In America Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | 65 |

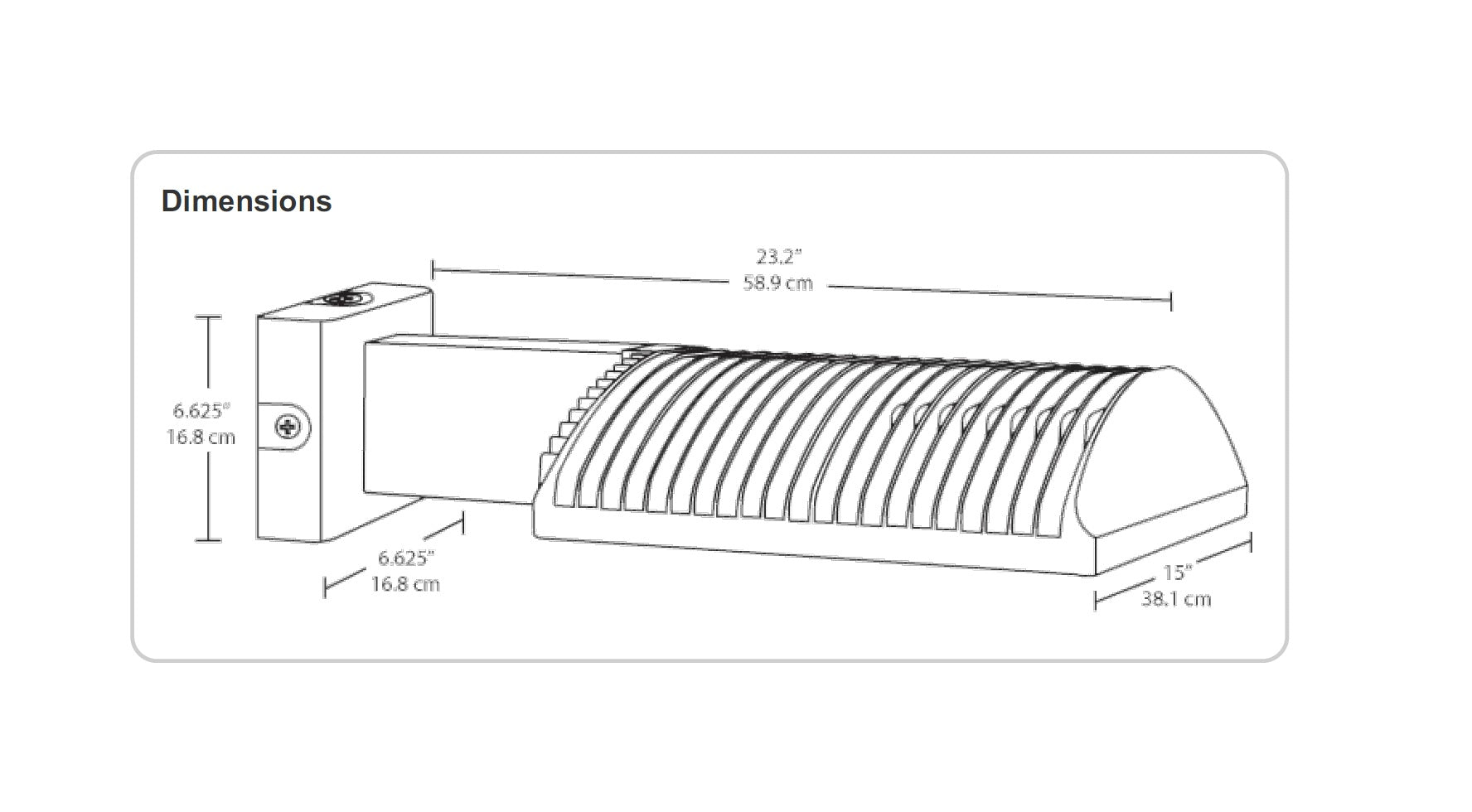

| Dimensions: | 23.20" X 15.00" X 6.625" |
| Width: | 15.00" |
| Length: | 23.20" |
| Height: | 6.625" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 34.75 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB Lighting's 105 watt high efficiency wallpack offers excellent cost savings and is ideal for wide walkways, ramps, entrance roadways and other long and narrow lighting applications with its Type II distribution. Made with a durable, die-cast aluminum housing and a thermal managment system designed to maintain low operating temperatures, efficient output, and a long LED life of 100,000 hours. It delivers 8,299-10,098 lumens with a variety of color temperature options. This fixture is DLC qualified, eligible for utility rebates, and Dark Sky Approved with a 5 year warranty.
Note: The WPLED2T105/480 fixtures operating with 480V are NOT DLC listed.
Listings:
• DLC Listed: This product is on the Design Lights Consortium (DLC) Qualified Products List and is eligible for rebates from DLC Member Utilities. Excluding all WPLED2T105/480 operating with 480V.
• Dark Sky Approved: The International Dark Sky Association has approved this product as a full cutoff, fully shielded luminaire.
• UL Listing: Suitable For Wet Locations.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.
• California Title 24: See WPLED2T105/BL for a 2013 California Title 24 compliant product. Any additional component requirements will be listed in the Title 24 section under technical specifications on the product page.
Construction:
• The Type II distribution is ideal for wide walkways, on ramps and entrance roadways, bike paths and other long and narrow lighting applications. This type is meant for lighting larger areas and usually is located near the roadside. This type of lighting is commonly found on smaller side streets or jogging paths.
• IP Rating: Ingress Protection rating of IP65 for dust and water.
• Ambient Temperature: Suitable for use in 40°C ambient temperatures.
• Cold Weather Starting: The minimum starting temperature is -40°F/-40°C.
• Thermal Management Housing: Superior thermal management with external Air-Flow fins.
• Housing: Die-cast aluminum housing, lens frame and mounting arm.
• Mounting: Heavy-duty mounting arm with O ring seal & stainless steel screw.
• Reflector: Specular vacuum-metallized polycarbonate.
• Gaskets: High-temperature silicone gaskets.
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant.
• For use on LEED Buildings: IDA Dark Sky Approval means that this fixture can be used to achieve LEED Credits for Light Pollution Reduction.
Product SKU's:
WPLED2T105, WPLED2T105/BL, WPLED2T105/PC, WPLED2T105/PC2, WPLED2T105/PCS, WPLED2T105/PCS2, WPLED2T105/PCT, WPLED2T105FX,
WPLED2T105FX/BL, WPLED2T105FX/PCS2, WPLED2T105FXW, WPLED2T105FXW/BL, WPLED2T105FXW/PCS, WPLED2T105FXW/PCS2, WPLED2T105FXW/PCS2, WPLED2T105N, WPLED2T105N/BL, WPLED2T105N/PC2, WPLED2T105N/PCS, WPLED2T105N/PCS2,
WPLED2T105N/PCT, WPLED2T105NFX, WPLED2T105NFX/PCS,
WPLED2T105NFX/PCS2, WPLED2T105NFXW, WPLED2T105NFXW/BL,
WPLED2T105NFXW/PCS, WPLED2T105NFXW/PCS2, WPLED2T105NW,
WPLED2T105NW/BL, WPLED2T105NW/PC, WPLED2T105NW/PC2,
WPLED2T105NW/PCS2, WPLED2T105NW/PCS, WPLED2T105NW/PCT,
WPLED2T105W, WPLED2T105W/BL, WPLED2T105W/D10, WPLED2T105W/PC, WPLED2T105W/PCS, WPLED2T105W/PCS2, WPLED2T105W/PCT,
WPLED2T105Y, WPLED2T105Y/BL, WPLED2T105Y/PC, WPLED2T105Y/PC2,
WPLED2T105Y/PCS, WPLED2T105Y/PCS2, WPLED2T105Y/PCT,
WPLED2T105YFX/BL, WPLED2T105YFX/PCS, WPLED2T105YFX/PCS2, WPLED2T105YFXW, WPLED2T105YFXW/BL, WPLED2T105YFXW/PCS,
WPLED2T105YFXW/PCS2, WPLED2T105YW, WPLED2T105YW/BL, WPLED2T105YW/PC, WPLED2T105YW/PC2, WPLED2T105YW/PCS,
WPLED2T105YW/PCS2, WPLED2T105YW/PCT, WPLED2T105/480,
WPLED2T105/480/PCS4, WPLED2T105/480/PCT4, WPLED2T105FX/480,
WPLED2T105FX/480/PCS4, WPLED2T105FXW/480, WPLED2T105FXW/480/PCS4, WPLED2T105N/480, WPLED2T105N/480, WPLED2T105N/480/PCS4,
WPLED2T105N/480/PCT4, WPLED2T105NFX/480, WPLED2T105NFXW/480,
WPLED2T105NFXW/480/PCS4, WPLED2T105NW/480, WPLED2T105NW/480/PCS4
WPLED2T105W/480, WPLED2T105W/480/PCS4, WPLED2T105W/480/PCT4,
WPLED2T105Y/480, WPLED2T105Y/480/PCS4, WPLED2T105Y/480/PCT4,
WPLED2T105YFX/480, WPLED2T105YFX/480/PCS4, WPLED2T105YFXW/480,
WPLED2T105YW/480, WPLED2T105YW/480/PCS4, WPLED2T105YW/480/PCT4,
WPLED2T105FX/PCS,WPLED2T1050N/PC, WPLED2T105NFX/BL,
WPLED2T105W/PC2, WPLED2T105YFX, WPLED2T105NW/480/PCT4
WPLED2T105YFXW/480/PCS4, WPLED2T105NFX/480/PCS4
