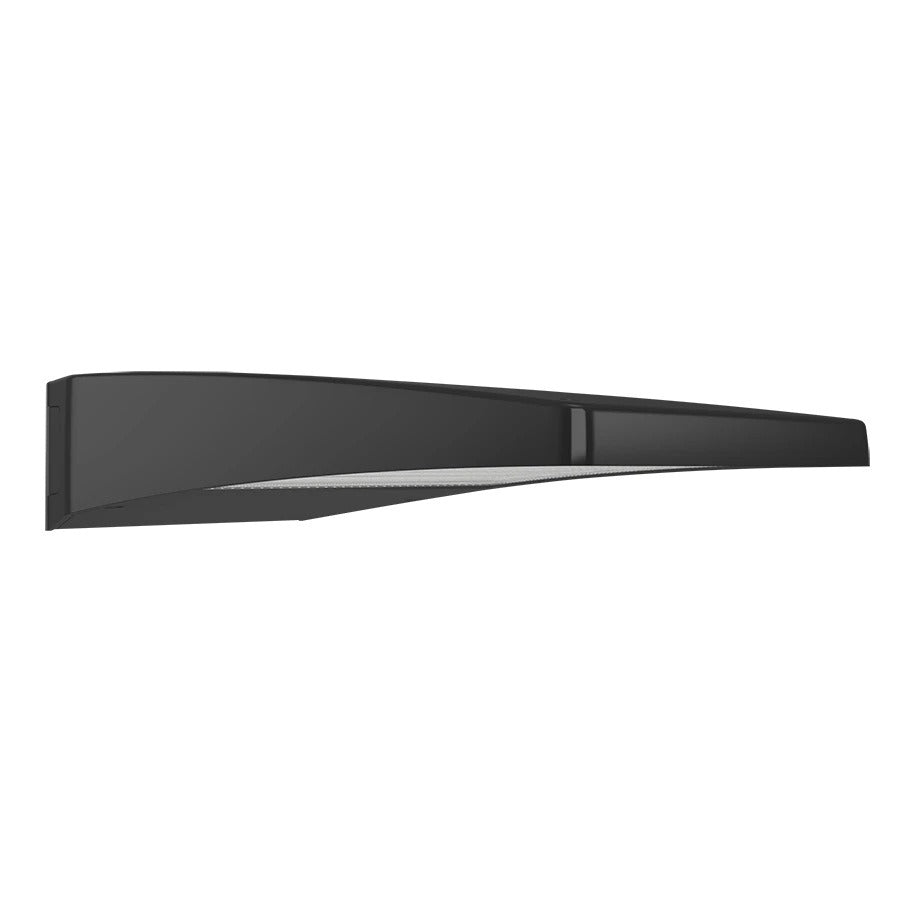

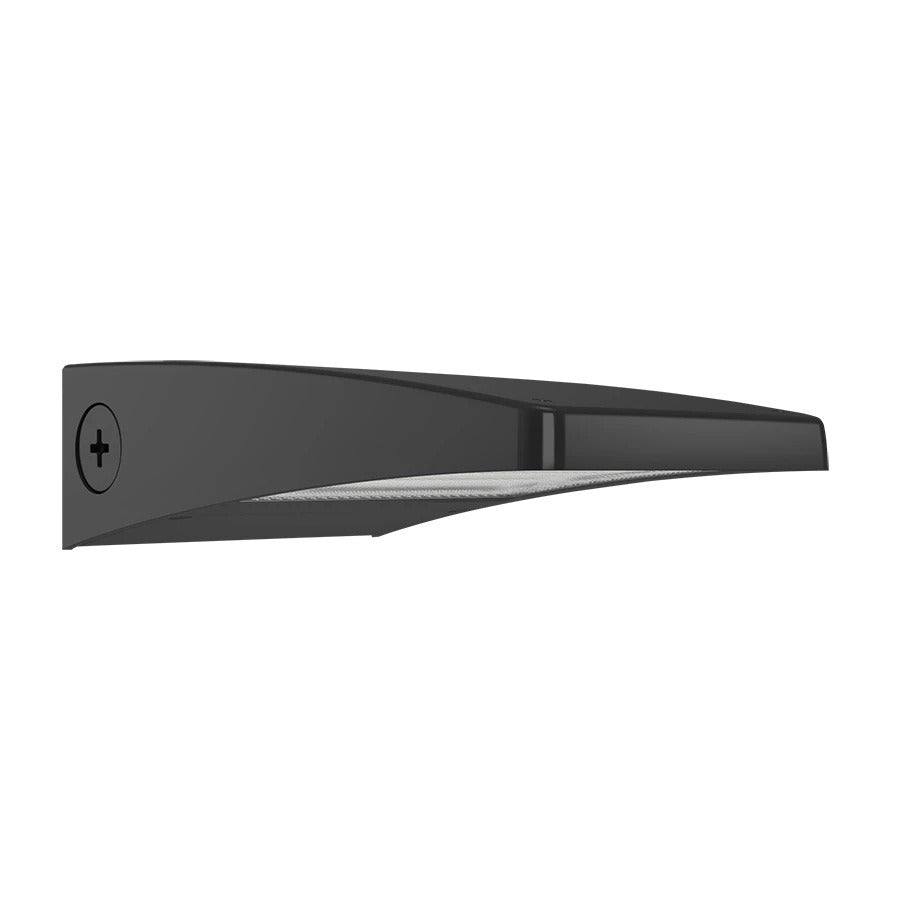

RAB Lighting WPLED Wattage and Color Selectable LED Wallpack Light Fixture Dimmable
RAB Lighting WPLED Wattage and Color Selectable LED Wallpack Light Fixture Dimmable
Specifications
Specifications
| Part Number# | WPLED |
|---|---|
| Type of Area: | Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 833 - 4,151 |
| Wattage: | 31 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Approved, ROHS, UL Listed |
| CRI: | >80 |
| Width: | 5" |
| Length: | 8.81" - 11.25" |
| Height: | 5.81" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 2.6 - 3.8 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
RAB Lighting's WPLED LED Wallpack Light Fixture is a versatile, energy-efficient outdoor lighting solution. With field-adjustable wattage options and selectable color temperatures, it offers customizable illumination for various applications. This fixture is built for longevity and optimal performance and features durable die-cast aluminum housing, an acrylic lens, and high-reflection polycarbonate components. Backed by a 100,000-hour lifespan and a 5-year no-compromise warranty, it meets DLC 5.1 requirements for top-tier rebates and includes an integrated photocell for enhanced energy savings.
Features:
• Field Adjustable Light Output: 13W/10W/6W and 32W/24W/16W
• Color temperature selectable by 3000K, 4000K, and 5000K
• 0-10V dimming standard
• Suitable for wet locations
• Designed to meet DLC 5.1 requirements, qualifies for the highest tier of rebates.
• Integrated photocell included with on/off switch
• 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color
• Allows for conformance to the IDA's fully shielding requirement, emitting no light above 90 degrees.
• Die-cast aluminum housing
• Acrylic lens
• High reflection polycarbonate
• Mercury and UV-free. RoHS-compliant components.
• Formulated for high durability and long-lasting color
• Integrated j-box and an optional wall plate included.
• 100,000-Hour LED lifespan
• 5-Year, no-compromise warranty
