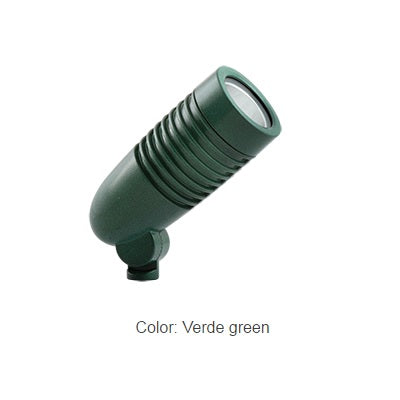

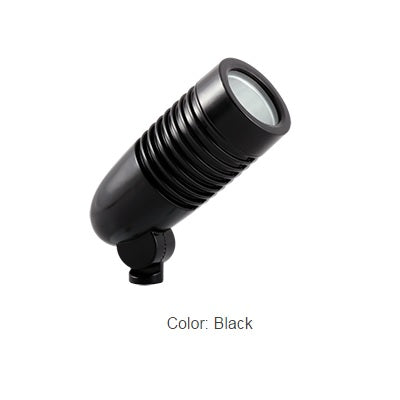

RAB Lighting’s LFLED5 series is a small LED floodlight package with choice in color temperatures of 3000K, 4000K, 5000K with and a NEMA beamspread of 4H X 4V make this a great accent light. A tool-less conversion to spot and narrow spot are available, with options for 3H X 3V accessory lenses and hoods. Great replacement for 35W MR16 Floodlight with an 85% energy efficiency. Cool operation prevents burning foliage or fingers, perfect for small-scale landscaping accent with a specialized microprismatic lens delivering consistent light.

LFLED5 complies with 2013 California Title 24 building and electrical codes as a commercial outdoor non-pole-mounted fixture < 30 Watts when used with a photosensor control. Select catalog number PCS900(120V) or PCS900/277 to order a photosensor.

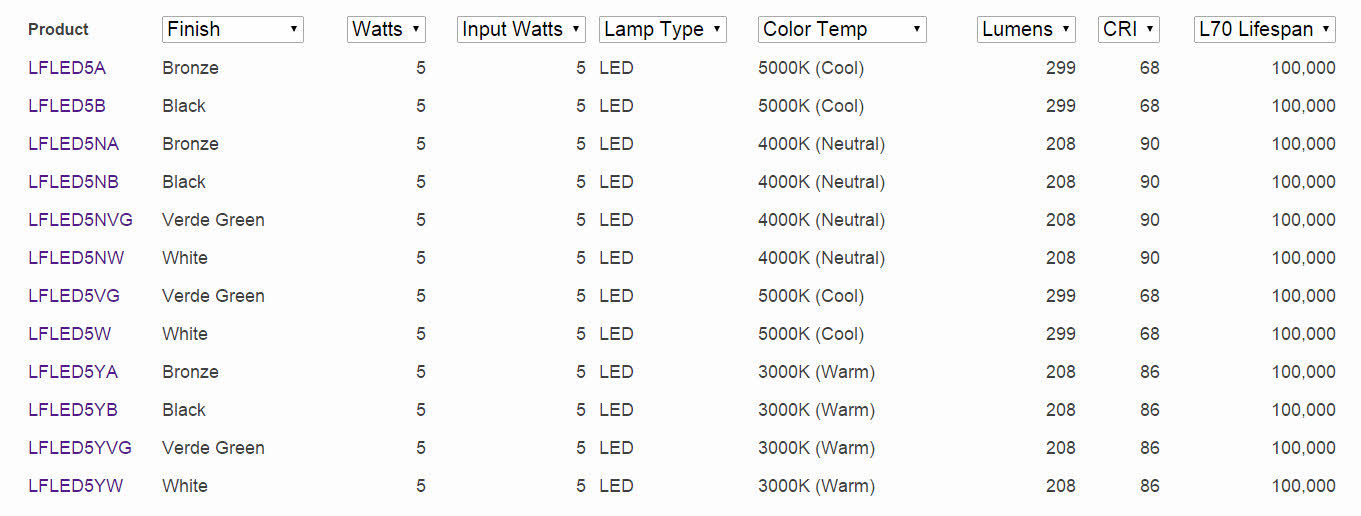

LED Characteristics:
• Lifespan: 100,000-hour LED lifespan based on IES LM-80 results and TM-21 calculations.
• LEDs: 5 Watt high output, long-life LED.
• Color Consistency: 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color.
• Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for (SSL) Products, ANSI C78.377-2008.

Listings:
• UL Listing: Suitable for wet locations. Suitable for ground mounting.
• IESNA LM-79 & LM-80 Testing: RAB LED luminaires have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have received the Department of Energy "Lighting Facts" label.

Construction:
• Cold Weather Starting: Minimum starting temperature is -40°F/-40°C
• Ambient Temperature: Suitable for use in 40°C (104°F) ambient temperatures
• Thermal Management: Optimized using computational fluid dynamics software to ensure long LED and driver lifespan
• Housing: Precision die-cast aluminum housing, hood and mounting arm.
• Gaskets: High-temperature silicone
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contains no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant.

Electrical:
• Drivers: Constant Current, Class 2, 100-277V, 50-60Hz, 100-240VAC 0.3-0.15A, 277VAC 0.18A,

Optical:
• NEMA Type: NEMA Beam Spread of 4H X 4V with options for 3H X 3V
• Microprismatic diffusion lens for even light distribution

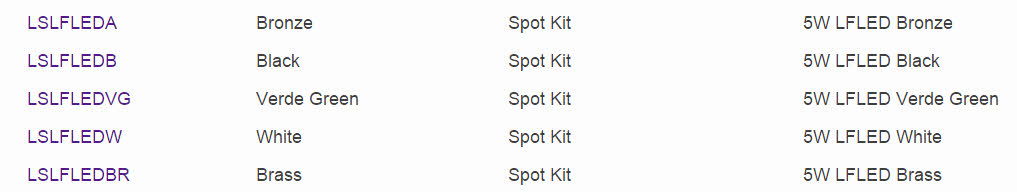

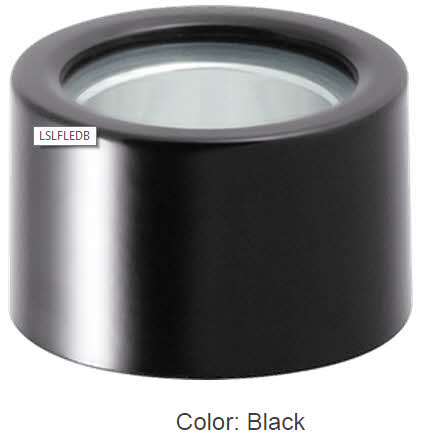

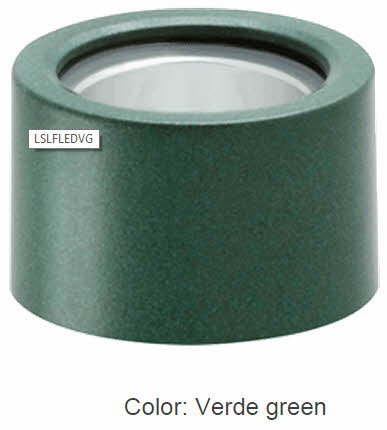

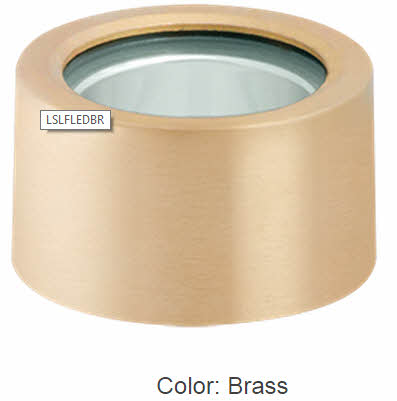

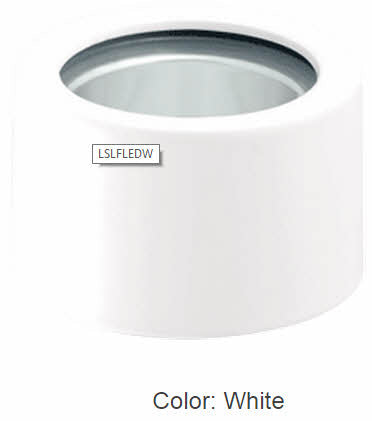

• Spot Lens: Optional spot lens enables a tool-less conversion to a NEMA Type 3H x 3V. Great for accent lighting or grazing buildings for an artistic touch.

Additional:
• Equivalency: The LFLED5 is equivalent in delivered lumens to a 35W MR16.
• Country of Origin: Designed by RAB in New Jersey and assembled in the USA by RAB's IBEW Local 3 workers.
• Buy American Act Compliant: This product is a COTS item manufactured in the United States, and is compliant with the Buy American Act.
• Recovery Act (ARRA) Compliant: This product complies with the 52.225-21 "Required Use of American Iron, Steel, and Manufactured Goods-- Buy American Act-- Construction Materials (October 2010).
• Trade Agreements Act Compliant: This product is a COTS item manufactured in the United States, and is compliant with the Trade Agreements Act.
• GSA Schedule: Suitable in accordance with FAR Subpart 25.4.
