RAB Lighting H22 Series LED UFO High Bay Light Fixture – Dimmable, Adjustable Wattage, Color Temp & Optics
RAB Lighting H22 Series LED UFO High Bay Light Fixture – Dimmable, Adjustable Wattage, Color Temp & Optics
Specifications
Specifications
| Part Number# | H22 |
|---|---|
| Type of Area: | Industrial & Warehouse, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 14,874 - 36,461 |
| Wattage: | 240 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 200W HID Equivalent, 250W HID Equivalent, 320W HID Equivalent, 400W HID Equivalent, ANSI, Dimmable, DLC Premium, LM79 / LM80, NSF, ROHS, UL Listed |
| CRI: | >80 |

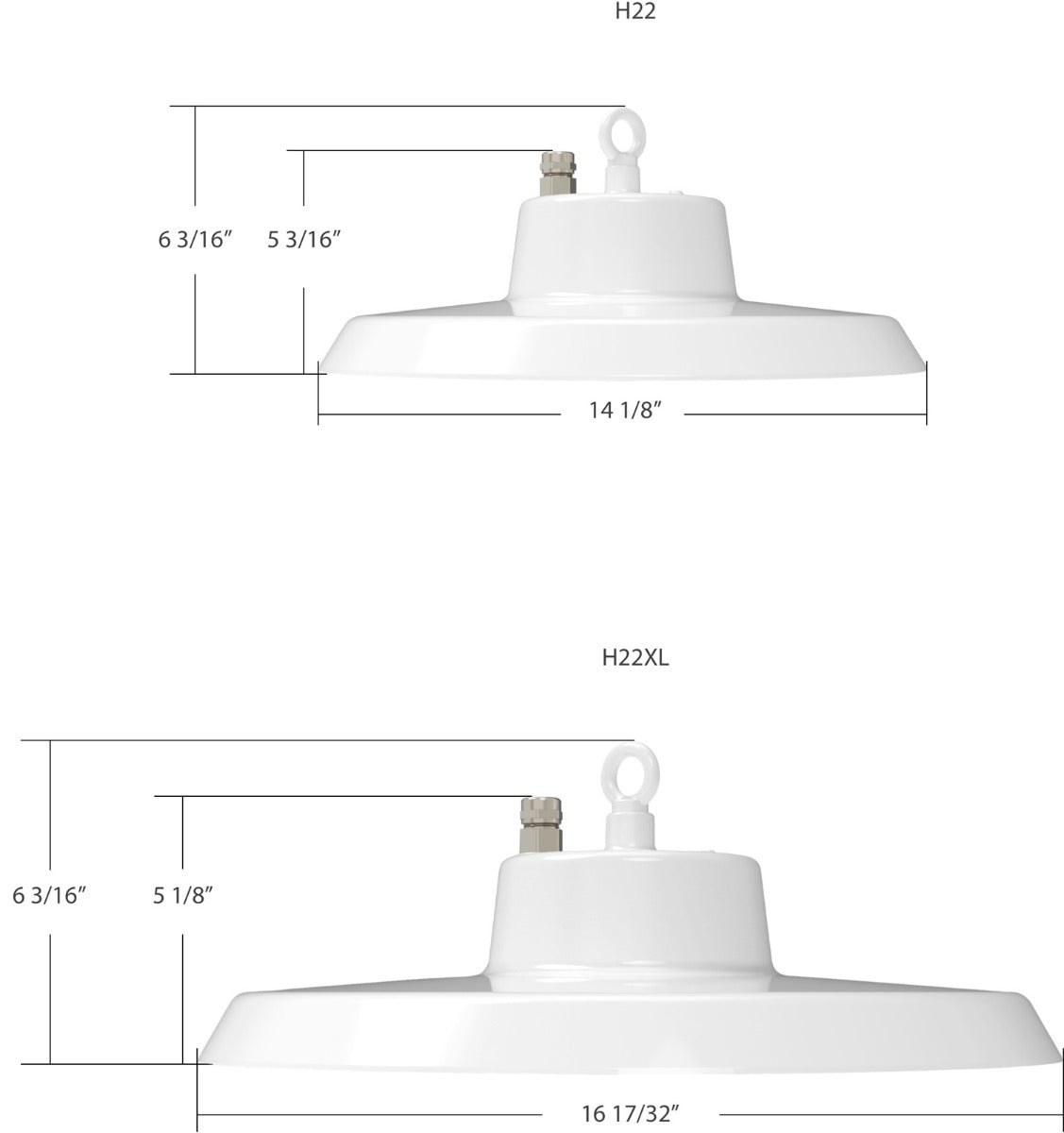

| Dimensions: | 14.12" - 16.53" |
| Height: | 6.18" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5.56 - 8.6 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits input:
The RAB Lighting H22 Series LED UFO High Bay Light Fixture delivers maximum versatility and performance for industrial and commercial lighting applications. With field-adjustable wattages (100W–240W), color temperatures (3000K, 4000K, 5000K), and optics (105°, 90°, 60°), it ensures optimal illumination for any environment. Built to last with a 100,000-hour LED lifespan, this DLC Premium-listed fixture features IP69K and IK10 ratings for durability, plus NSF certification for food-preparation areas. Offering dimmable functionality, multiple voltage options, and a 5-year limited warranty, the H22 Series is the ultimate solution for warehouses, manufacturing facilities, and high-ceiling spaces.
Features:
• 100,000-Hour LED lifespan
• DLC Premium Listed
• NSF certified for use in food-preparation facilities
• IP69K Rating
• IK10 Rating

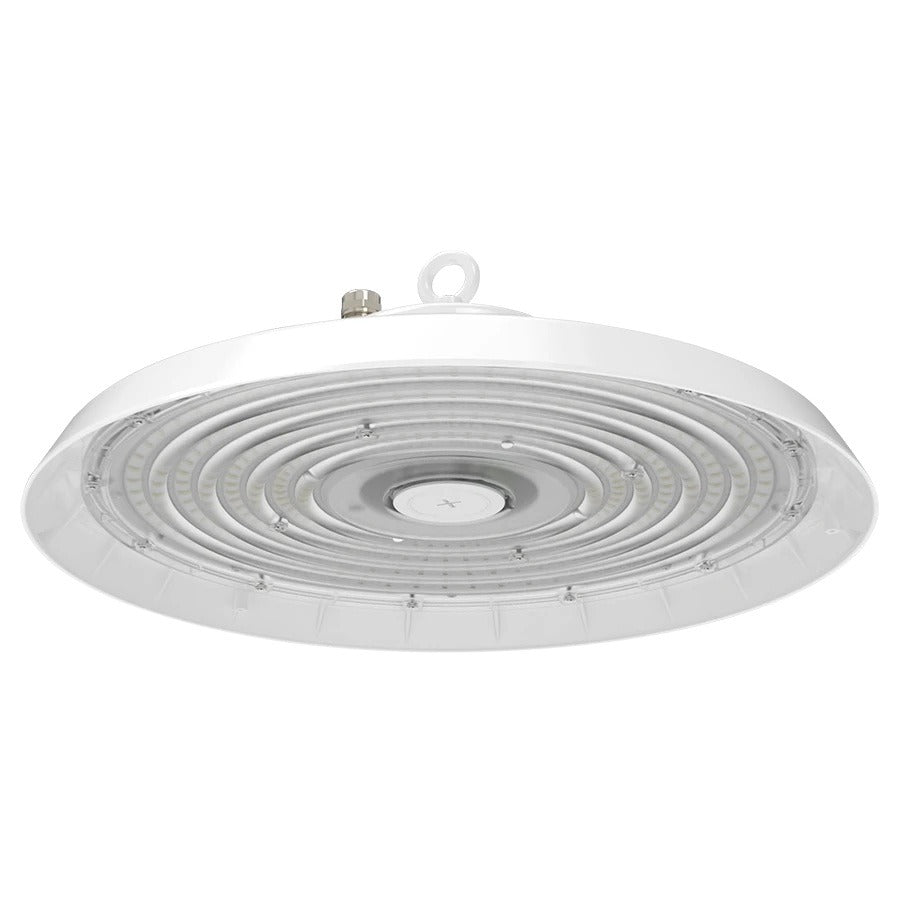

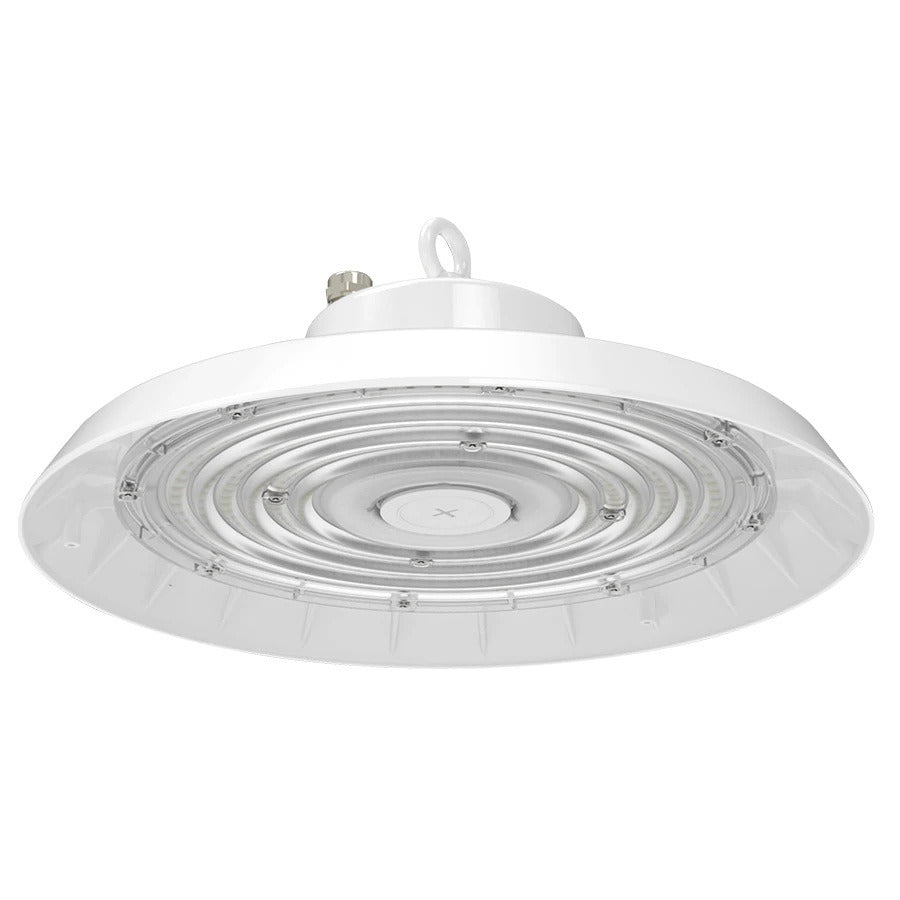

• Power and CCT tunable fixture in two sizes: H22 (150/120/100W) and H22XL (240/200/150W)
• CCT: 3000/4000/5000K adjustable
• Built-in optics adjustable with a switch: 105°/90°/60°
• Input voltage: 120-277V and 480V
• Suitable for wet locations
• Battery backup sold separately: EMHB30 and EMHB40/480
• Compatible with all existing sensors for H17 (PIR40, MVS50, PIR40/LCB, MVS50/LCB)
• 5-years, limited warranty
