RAB Lighting BULLET2X12 24 Watts LED Flood Kit with CU4 & Hood with Adjustable Dual Heads 120V
RAB Lighting BULLET2X12 24 Watts LED Flood Kit with CU4 & Hood with Adjustable Dual Heads 120V
-
Specsheet:
Specifications
Specifications
| Part Number# | BULLET2X12A |
|---|---|
| Type of Area: | Apartment Buildings, Gas Station & Convenience Store, Gym & Sports, Home & Architectural, Landscape & Flood, Office & Small Retail, Stairwell, Wall Mount & Building Exteriors |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,600 - 1,914 |
| Wattage: | 24 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Lighting Facts, LM79 / LM80, Made In America Compliant, UL Listed, Title 24 Compliant |
| CRI: | 80+ |

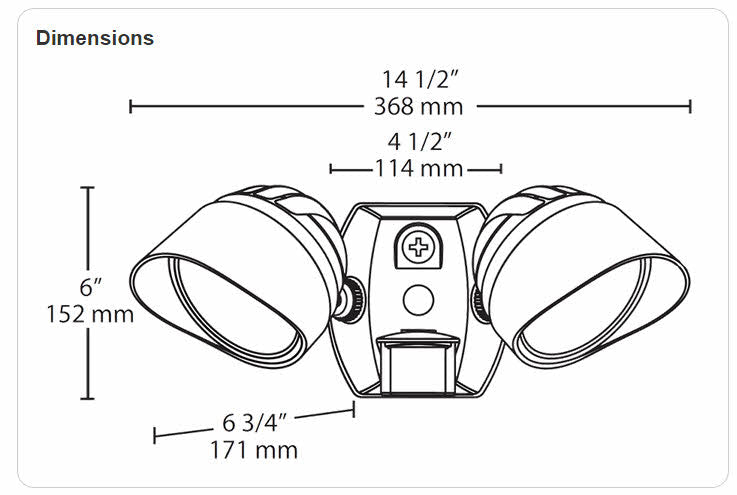

| Dimensions: | 14.5" x 6.75" x 6" |
| Width: | 6.75" |
| Length: | 14,5" |
| Height: | 14.5" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V |
| Weight Each: | 6.30 lbs |
| Manufacturer: | RAB Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
RAB Lighting’s BULLET2x12 line of floodlight offer the choices you want. Available in 3000K, 4000K and 5000K color temperatures and with choices of housing colors: black, white, bronze, green/verde. These units make great efficient, economical replacements to 2X75W BR30/halogen/wide flood. The microprismatic diffusion lens assures smooth and even light distribution. 100,000-hour LED Lifespan makes this an economical and low-maintenance part of your design.

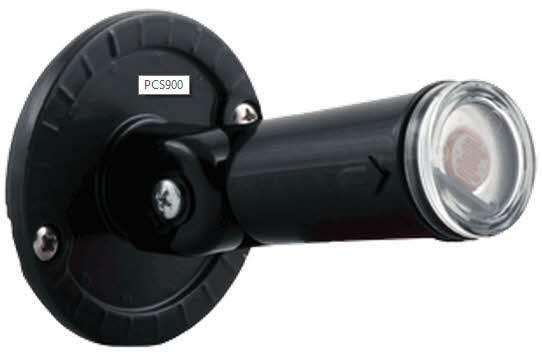

BULLET2x12 complies with 2013 California Title 24 building and electrical codes as a residential outdoor lighting fixture with no additional hardware required and as a commercial outdoor non-pole-mounted fixture ≤ 30 Watts when used with a photosensor control. Select catalog number PCS900 to order a photosensor.
Listings:
• UL Listing: Suitable for wet locations
• IESNA LM-79 & LM-80 Testing: RAB LED luminaries have been tested by an independent laboratory in accordance with IESNA LM-79 and LM-80, and have been received the Department of Energy "Lighting Facts" label.
• California Title 24: See compliance statement for use with PCS900 photosensor.
LED Characteristics:
• LEDs: Multi-chip, high-output, long-life LEDs
• Lifespan: 100,000-Hour LED lifespan based on IES LM-80 results and TM-21 calculation
- Color Stability: LED color temperature is warrantied to shift no more than 200K in CCT over a 5 year period.
• Color Uniformity: RAB's range of CCT (Correlated Color Temperature) follows the guidelines of the American National Standard for Specifications for the Chromaticity of Solid State Lighting (SSL) Products, ANSI C78.377-2011.
Electrical and LED Info:
• Driver: Innovative integrated driver technology with 120V TRIAC and ELV dimming
• Type: Constant Current
• Driver: 120V: 0.22A, Input Watts: 26W

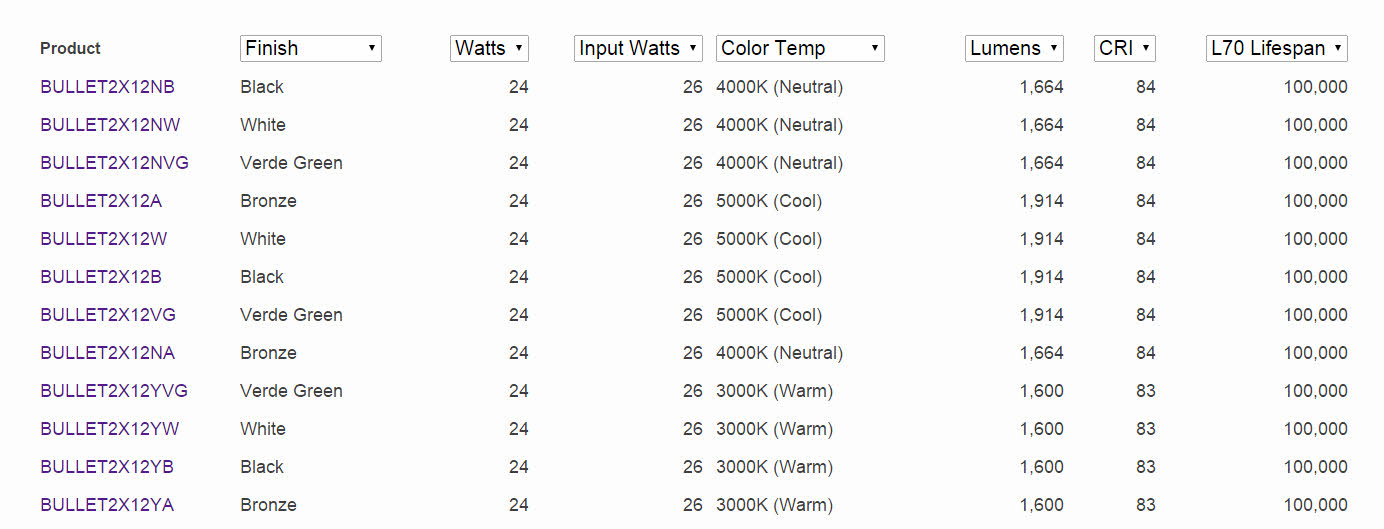

• Color Temp: 3000K (Warm), 83 CRI, Lumens: 1,600, Efficacy: 61 LPW, Efficiency: 91, 26W
• Color Temp: 4000K (Neutral), 84 CRI, Lumens:1,664, Efficacy: 64 LPW, Efficiency: 92, 24W
• Color Temp: 5000K (Neutral), 84 CRI, Lumens: 1,914, Efficacy: 74 LPW, Efficiency: 92, 26W
Construction:
• Thermal Management: Superior heat sinking with external Air-Flow fins
• Housing: Die-cast aluminum housing, lens frame and mounting plate.

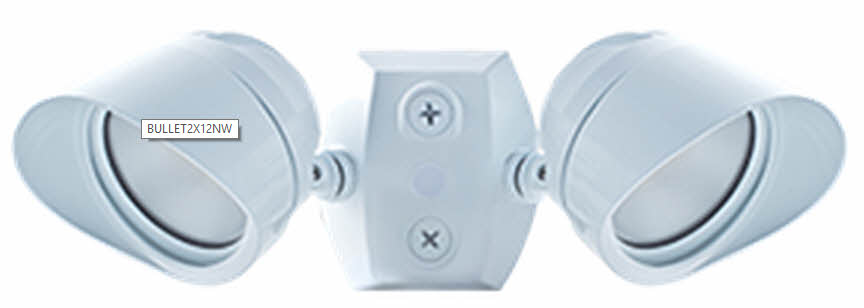

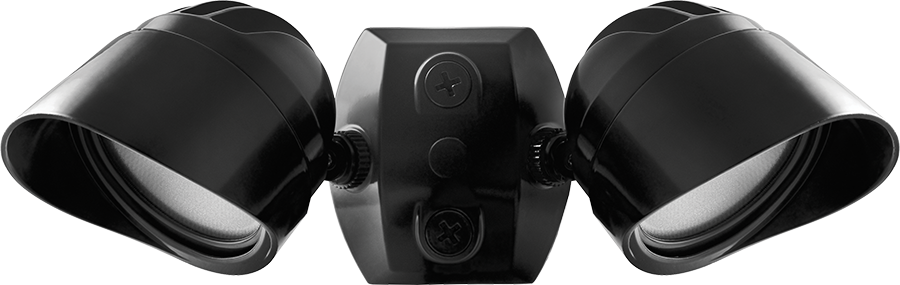

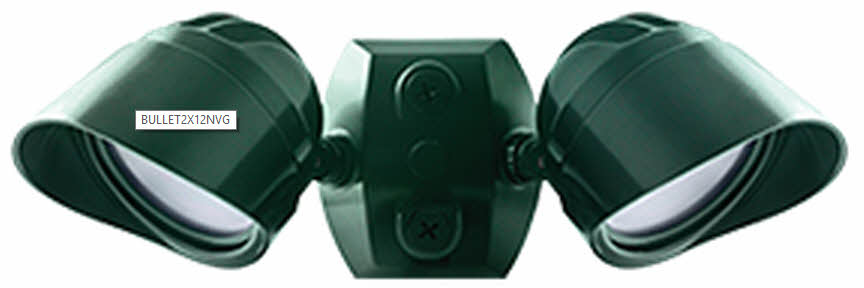

• Color choices: Black, White, Bronze, Green/Verde
• Reflector: Semi-specular, vacuum-metalized polycarbonate
• Lens: Microprismatic diffusion lens for smooth and even light distribution
• Mounting: Heavy-duty mounting arm with "O" ring seal and stainless steel screws
• Gaskets: High-temperature silicone gaskets
• Finish: Our environmentally friendly polyester powder coatings are formulated for high-durability and long-lasting color, and contain no VOC or toxic heavy metals.
• Green Technology: Mercury and UV free, and RoHS compliant. Polyester powder coat finish formulated without the use of VOC or toxic heavy metals.
Model Numbers:
BULLET2X12A, BULLET2X12B, BULLET2X12NA, BULLET2X12NB, BULLET2X12NW, BULLET2X12W, BULLET2X12YW
