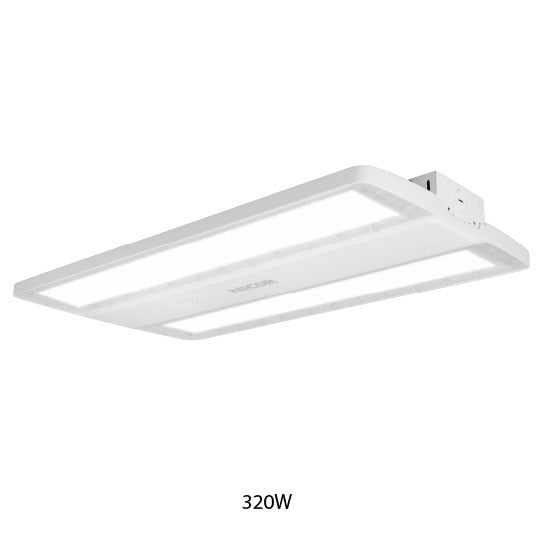

Nicor Lighting HML4320SUS8S 320W Power and Color Select LED High-Performance High Bay Light Fixture Dimmable
Nicor Lighting HML4320SUS8S 320W Power and Color Select LED High-Performance High Bay Light Fixture Dimmable
Specifications
Specifications
| Part Number# | HML4320SUS8S |
|---|---|
| Type of Area: | Large Retail & Open Areas, Commercial Offices, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 5,459 - 6,493 |
| Wattage: | 320 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, FCC Compliant, LM79 / LM80, ROHS, UL Listed |
| CRI: | 80 |
| Dimensions: | 22.0" x 12.4" x 1.9" |
| Width: | 12.4" |
| Length: | 22.0" |
| Height: | 1.9" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V-347V |
| Manufacturer: | Nicor |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Nicor's HML4 320-Watt LED high bay fixture is designed for industrial and commercial spaces. It features selectable wattage, color temperature (3500K/4000K/5000K), and beam angles for ultimate flexibility. Built from durable die-cast aluminum, it includes integrated cooling and supports advanced Bluetooth mesh controls. With DLC Premium certification and multiple mounting options, it delivers reliable, high-performance lighting in any setting.
Specifications:
• 3 adjustable CCT options: 3500K, 4000K, 5000K; >80 CRI
• Beam angle selection: 90x90°, 65x95°, 45x100° optical distributions
• 5 selectable wattage options: 320/300/280/260/240W
• Operation temperature (fixture only): -40°F to 122°F (-30°c to 50°C); sensor and EM modes vary
• Input voltage: 120-247V
• Dimming: 0-10V standard
• NLC (Network Lighting Controls) harvesting functions
• Multiple mounting options includes V-hook & chain, pendant & surface kits available
• Single piece, die cast aluminum housing with integrated cooling
• Prismatic optical design to reduce glare
