NaturaLED CWX40S/8C3 Wattage and Color Selectable LED Compact Cutoff Wallpack Light Fixture with Photocell
NaturaLED CWX40S/8C3 Wattage and Color Selectable LED Compact Cutoff Wallpack Light Fixture with Photocell
Specifications
Specifications
| Part Number# | CWX40S/8C3 |
|---|---|
| Type of Area: | Apartment Buildings, Schools, Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 2,600 - 5,200 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 175W HID Equivalent, 250W HID Equivalent, Dimmable, DLC Premium, ETL Listed, FCC Compliant, IP65 / IP66 / IP67, LM79 / LM80, ROHS, Title 24 Compliant |
| CRI: | >80 |
| Dimensions: | 6.57" x 3.94" x 2.36" |
| Width: | 3.94" |
| Length: | 6.57" |
| Height: | 2.36" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.63 lbs |
| Manufacturer: | NaturaLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

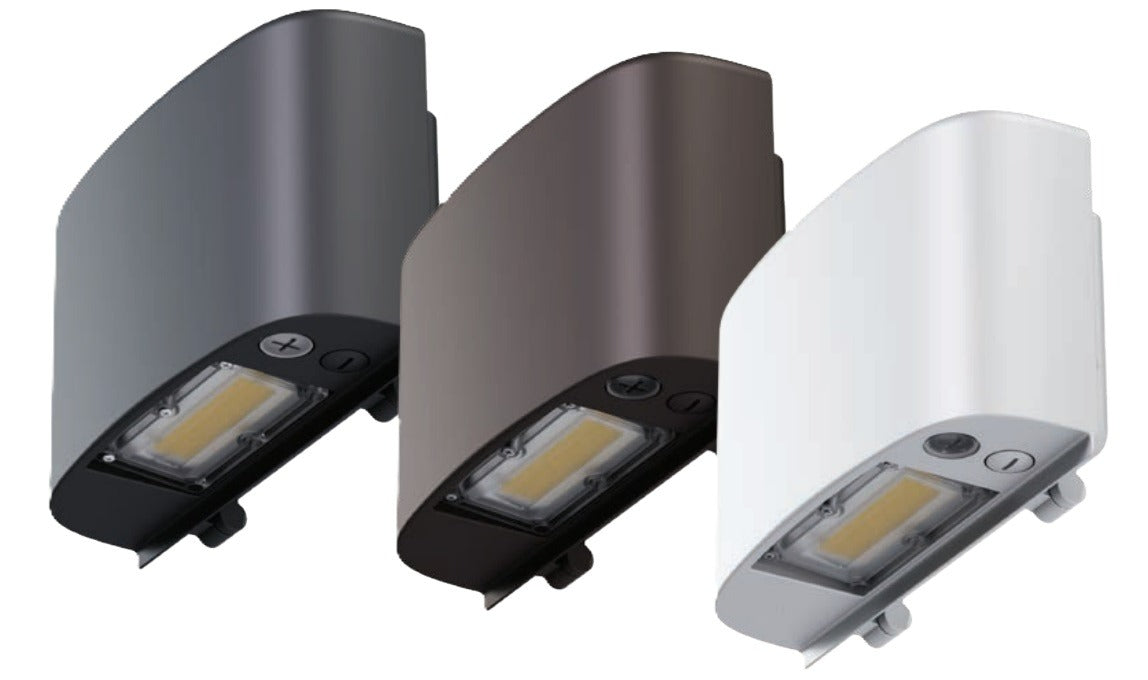

This NaturaLED CWX40S/8C3 is a wattage and color-selectable LED compact cut-off wall pack light fixture designed for versatility and durability. It features wattage options from 15-40W and color temperatures of 3000K, 4000K, and 5000K. It operates on a wide voltage range (120-277V) and includes 0-10V dimming. Built with a robust die-cast aluminum housing and borosilicate glass lens it is IP65-rated for outdoor use and functions in extreme temperatures (-40°F to 122°F). Additional features include DLC Premium qualification, 4KV surge protection, and optional accessories like sensors, photocells, and emergency drivers, all backed by a 5-year warranty.
Features:
• DLC Premium Qualified
• IP65 Rated
• ETL, cETL Listed
• Wattage & Color Selectable
• Wattage: 15-40W
• Color Temp: CCT3 (30/40/50K)
• Voltage: 120-277V
• Surge Protection: 4KV
• Dimmable: 0-10V
• CRI >80
• Operating temperature: - 40°F - 122°F
• Beam Angle: Cutoff
• Lens: Borosilicate Glass Lens
• Material: Die Cast Aluminum
• Colors: Bronze, Black, White
• Warranty: 5 Year
• Optional for Purchase: Sensors, Photocell, Emergency Drivers, Remote Control
