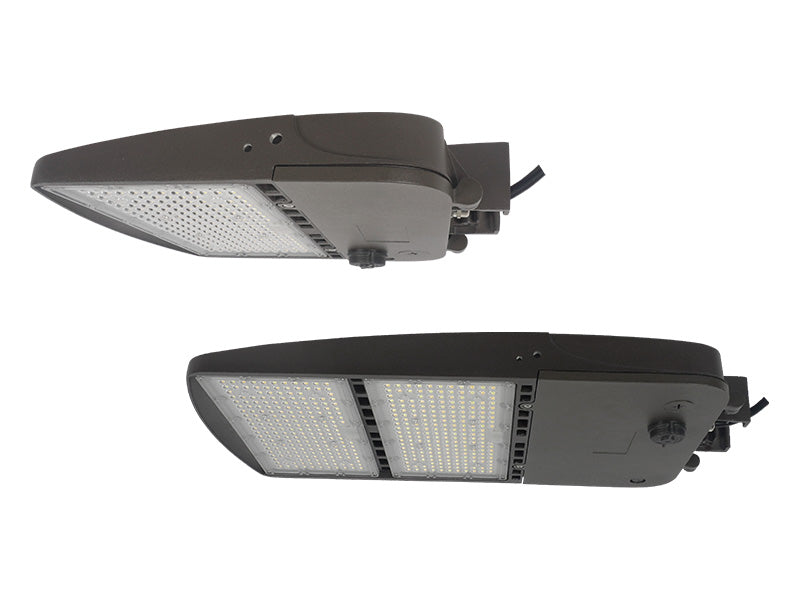

NaturaLED CAL Z10 Series Wattage and Color Selectable LED Compact Area Light Fixture Dimmable
NaturaLED CAL Z10 Series Wattage and Color Selectable LED Compact Area Light Fixture Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | CAL |
|---|---|
| Type of Area: | Landscape & Flood, Large Retail & Open Areas, Parking Garage, Pole / Street / Parking Lot, Wall Mount & Building Exteriors, Road & Street |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 9,100 - 40,397 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, 1000W HID Equivalent, CUL Listed, Dimmable, DLC Premium, ETL Listed, FCC Compliant, IP65 / IP66 / IP67, LM79 / LM80, ROHS, UL Listed |
| CRI: | >70 |
| Width: | 12.40" |
| Length: | 13.14" - 22.72" |
| Height: | 2.42" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 6.6 - 12.30 lbs. |
| Manufacturer: | NaturaLED |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
NaturaLED's Compact Area Light features sturdy die-cast aluminum housing and advanced thermal management, making it ideal for lighting parking lots, streets, walkways, and flood and wall applications. It delivers even, consistent light with various wattage options, and it is capable of replacing fixtures up to 1500W HID. Certified DLC Premium, rated IK10 and IP65, this fixture offers five mounting options: Pole Mount, Adjustable Pole, Slip Fitter, Yoke Mount, and Wall Mount. It also includes a preinstalled Z10 Receptacle for easy plug-and-play control upgrades during or after installation.
Features:
• DLC Premium
• IP65 Rated
• UL/cUL Listed
• IK Rating: IK10
• Wattage & Color Selectable
• Z10 Receptacle Pre-installed
• Wattage: 70-150W, 200-300W
• Color Temp: CCT3 (30/40/50K)
• Voltage: 120-277V, 120-347V
• Surge Protection: 6KV
• Dimmable: 0-10V
• CRI >70
• Operating temperature: - 40°F - 122°F
• Power Cable Length: 6-ft
• Beam: Distribution: Type 3 (Optional purchase available for Type 4, Type 5 Lens)
• Lens: UV Resistant Polycarbonate Lens
• Material: Die Cast Aluminum
• Color: Bronze
• Warranty: 5 Year
• Optional Accessories for Purchase: Mounts, Lens, Sensors, Photocell, Surge Protector
