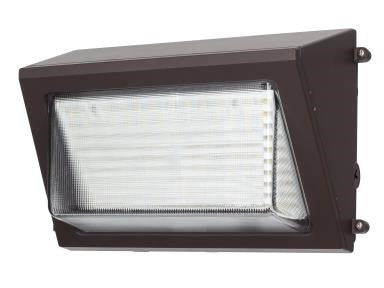

MaxLite WCF40U-WCSBPC Wattage and Color Selectable LED Compact Open Face Wall Pack Light Fixture Dimmable
MaxLite WCF40U-WCSBPC Wattage and Color Selectable LED Compact Open Face Wall Pack Light Fixture Dimmable
Specifications
Specifications
| Part Number# | WCF40U-WCSBPC |
|---|---|
| Type of Area: | Large Retail & Open Areas, Parking Garage, Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 5,600 |
| Wattage: | 40 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, FCC Compliant, IP65 / IP66 / IP67, UL Listed |
| CRI: | ≥80 |
| Dimensions: | 14.60" x 9.25" x 7.48" |
| Width: | 9.25" |
| Length: | 14.60" |
| Height: | 7.48" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.23 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Maxlite's WallMax Compact Open Face Wall Pack is an affordable, versatile option for general wall lighting needs. It offers selectable wattage and color temperature, along with an integrated photocell that can be enabled or disabled. The housing size is designed to match existing HID footprints, and it includes an optional battery backup. Additionally, the unit allows for the installation of the c-Max receptacle (CEA Accessory), enabling compatibility with a wide range of c-Max field-installable controls.
Features:
• CCT selectable between 3000K, 4000K or 5000K
• Universal Voltage: 120-277V
• Wattage Selectable in 40W+ versions
• Battery Backup Options: -20°C
• Visors & Wire guards are available
• Photocell (On/Off) Standard
• CRI: ≥80
• Field installable c-Max receptacle (CEA Accessory) to allow c-Max Controls capability
• 6kV Surge Protection
Construction:
• Rugged die cast housing with corrosion resistant polyester powder paint finish
• Impact resistant prismatic borosilicate glass
• 4 1/2 conduit holes, one on each side
