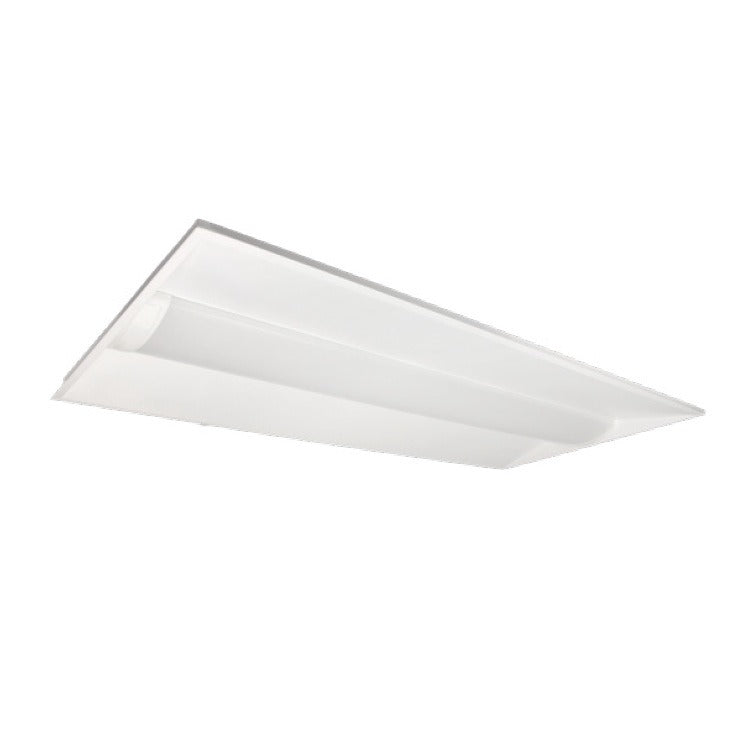

Maxlite MLVT24D22WCSCR Wattage and Color Selectable 2x4 ArcMAX Controls Ready G2 LED Troffer Light Fixture
Maxlite MLVT24D22WCSCR Wattage and Color Selectable 2x4 ArcMAX Controls Ready G2 LED Troffer Light Fixture
Specifications
Specifications
| Part Number# | MLVT24D22WCSCR |
|---|---|
| Type of Area: | Large Retail & Open Areas, Education, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 3,540 - 5,270 |
| Wattage: | 22 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Approved, FCC Compliant, LM79 / LM80, ROHS, UL Listed |
| CRI: | ≥80 |
| Dimensions: | 47.80" x 23.70" x 2.10" |
| Width: | 23.70" |
| Length: | 47.80" |
| Height: | 2.10" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5.60 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
MaxLite's MLVT 2x4 ArcMAX™ G2 offers selectable wattage and color temperature (3500K, 4000K, 5000K), making it a versatile choice for various commercial interiors. Designed as a high-efficiency replacement for traditional fluorescent troffers, it features MaxLite’s advanced “UniGlo” optics for uniform brightness, low glare, and excellent color rendering. With Controls Ready compatibility, it supports plug-and-play integration with cMax nodes for features like daylight sensing, occupancy detection, Bluetooth control, and energy monitoring. Delivering up to 150 lumens per watt and backed by 0-10V dimming, this troffer ensures performance, flexibility, and easy integration into smart lighting systems.
Features:
• Advanced “UniGlo” optics provides uniform brightness across the lens
• Fixed Wattage and Wattage Selectable Available
• Controls Ready – can be paired with the new cMax controls nodes
• CCT Selectable: 3500K, 4000K, 5000K
• Industry highest efficacy of 150 LPW
• On EM mode, the fixture output a minimum of 1050 lumens for 90 minutes, when fully charged
• 0-10V Dimming
Controls Features:
• Multifunction and Energy Monitoring
• Daylight Sensor
• Occupancy Sensor
• Integral Sensor Receptacle
• High-End Trim
• Bluetooth
• Luminaire Level Lighting Control (LLLC)
