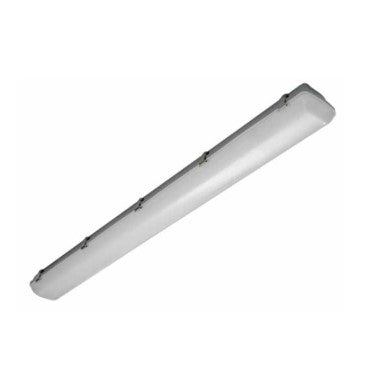

MaxLite LSV4U23WCSCR 4-Foot Wattage and Color Selectable Vapor Tight Light Fixture Control Ready Dimmable
MaxLite LSV4U23WCSCR 4-Foot Wattage and Color Selectable Vapor Tight Light Fixture Control Ready Dimmable
Specifications
Specifications
| Part Number# | LSV4U23WCSCR |
|---|---|
| Type of Area: | Industrial & Warehouse, Parking Garage, Stairwell, Commercial Offices, Factory / Industrial |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,990 / 4,550 / 6,240 |
| Wattage: | 23 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Premium, ETL Listed, FCC Compliant, IP65 / IP66 / IP67, ROHS |
| CRI: | ≥80 |
| Dimensions: | 49.80" x 5.00" x 3.50" |
| Width: | 5.00" |
| Length: | 49.80" |
| Height: | 3.50" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5.95 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
MaxLite's 4-Foot Wattage and Color Selectable Vapor Tight Light Fixture is a versatile fixture offering the flexibility of choosing from 9 different combinations of Color Temperature and wattage, allowing you to customize the lighting to your specific needs. It is compatible with the new cMax control nodes, providing advanced lighting control options. The fixture features 0-10V dimming functionality as a standard feature, allowing you to adjust the brightness as desired. With a high CRI of over 80, it ensures accurate and vibrant lighting. It's polycarbonate (PC) housing, stainless steel clips, and hermetically sealed lens provide an IP65 rating, making it resistant to dust and water. In emergency mode, the fixture automatically adjusts the CCT to 5000K and outputs a minimum of 700 lumens for 90 minutes when fully charged, ensuring reliable backup lighting during power outages. Upgrade to the MaxLite Vapor Tight Light Fixture and experience customizable lighting, advanced controls compatibility, and long-lasting performance.
Features:
• CCT and Wattage selectable (9 possible combinations with each fixture)
• Controls Ready – can be paired with the new cMax controls nodes
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• L70 lumen maintenance of 100,000 hours
• Operating temperature: -40°F to +104°F , except fixtures with EM option
• Polycarbonate (PC) housing with stainless steel clips and lens hermetically sealed for IP65 rating
• On EM mode, the fixture CCT will be set to 5000K
• On EM mode, the fixture output a minimum of 700 lumens for 90 minutes, when fully charged
• Default setting for WCS models is set to lower wattage and 4000K
• Fixture may be surface mounted or pendant/Rod mounted (accessories sold separately)
