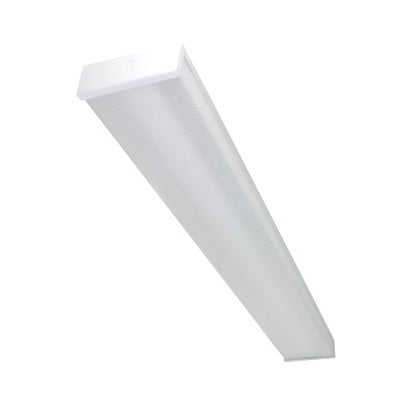

Maxlite LSU4U23WCSCR 4-Foot LED Wattage and Color Selectable Utility Wrap Light Fixture Control Ready Dimmable
Maxlite LSU4U23WCSCR 4-Foot LED Wattage and Color Selectable Utility Wrap Light Fixture Control Ready Dimmable
Specifications
Specifications
| Part Number# | LSU4U23WCSCR |
|---|---|
| Type of Area: | Apartment Buildings, Parking Garage, Stairwell |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,990 / 4,550 / 6,240 |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | ≥80 |
| Dimensions: | 48.60" x 6.50" x 2.50" |
| Width: | 6.50" |
| Length: | 48.60" |
| Height: | 2.50" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.27 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
Enhance your lighting setup with the MaxLite 4-Foot LED Wattage and Color Selectable Utility Wrap Light Fixture. This versatile fixture allows you to customize the Color Temperature and wattage to suit your specific lighting requirements. With the ability to select from multiple options, you can achieve the desired ambiance and brightness in your space. The fixture is compatible with the new cMax control nodes, enabling advanced control capabilities and integration into your lighting control system. It offers an impressive L70 lumen maintenance of 100,000 hours, ensuring long-lasting performance and reducing the need for frequent replacements. The sheet metal (steel) housing and PMMA lens provide a smooth and diffused distribution of light, enhancing visual comfort. In emergency mode, the fixture automatically adjusts the CCT to 5000K and delivers a minimum output of 700 lumens for 90 minutes when fully charged, providing reliable backup lighting during power outages.
Features:
• CCT and Wattage selectable
• Controls Ready – can be paired with the new cMax controls nodes
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• L70 lumen maintenance of 100,000 hours
• Sheet metal (steel) housing and PMMA lens for smooth diffused distribution
• Operating temperature: -4°F to 122°F, except fixtures with EM option
• On EM mode, the fixture CCT will be set to 5000K
• Default setting for WCS models is set to lower wattage and 4000K
• Fixture may be surface (accessories sold separately)
• On EM mode, the fixture output a minimum of 700 lumens for 90 minutes, when fully charged
