MaxLite LS2-CSCR LED Wattage and Color Selectable Control Ready Linear Strip Light Fixture Dimmable
MaxLite LS2-CSCR LED Wattage and Color Selectable Control Ready Linear Strip Light Fixture Dimmable
Specifications
Specifications
| Part Number# | LS2-CSCR |
|---|---|
| Type of Area: | Home & Architectural, Industrial & Warehouse, Commercial Offices, Factory / Industrial |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,600 / 3,250 / 3,900 | 2,990 / 4,420 / 6,110 | 8,450 / 9,750 / 11,700 |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 47.30" x 3.30" x 3.60" | 94.20" x 3.30" x 3.60" | 22.2" x 3.30" x 3.60" |
| Width: | 3.30" |
| Length: | 47.30" | 94.20 |
| Height: | 3.60" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.74 to 9.26 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
Details
Details

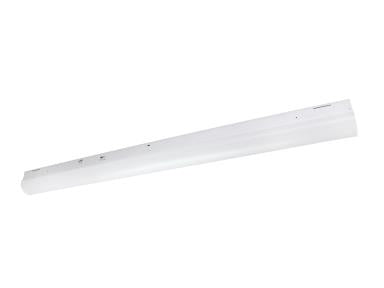

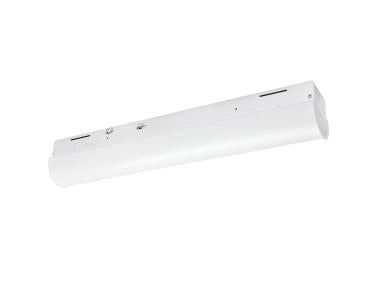

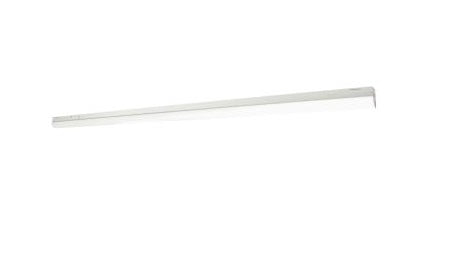

Upgrade your lighting system with the versatile MaxLite 2-foot, 4-foot, or 8-foot LED Wattage and Color Selectable Control Ready Linear Strip Light Fixture. This fixture allows you to choose from 9 different combinations of Color Temperature and wattage, providing flexibility to meet your specific lighting requirements. It is compatible with the new cMax control nodes, enabling advanced lighting control options. Its sheet metal (steel) housing and PMMA lens provide a smooth and diffused distribution of light. With an operating temperature range of -4°F to 122°F, it is suitable for a wide range of environments. In emergency mode, the fixture automatically adjusts the CCT to 5000K and outputs a minimum of 700 lumens for 90 minutes when fully charged, providing reliable backup lighting during power outages. The fixture can be a surface, pendant, or stem mounted with the use of separately sold accessories, offering flexibility in installation options. Upgrade to the MaxLite Linear Strip Light Fixture and experience customizable lighting, advanced controls compatibility, and long-lasting performance.
• CCT and Wattage selectable (9 possible combinations with each fixture)
• Controls Ready – can be paired with the new cMax controls nodes
• 0-10V dimming standard
• CRI>80
• Universal voltage 120-277V
• L70 lumen maintenance of 100,000 hours
• Sheet metal (steel) housing and PMMA lens for smooth diffused distribution
• Operating temperature: -4°F to 122°F, except fixtures with EM option
• On EM mode, the fixture CCT will be set to 5000K
• Default setting for WCS models is set to lower wattage and 4000K
• Fixture may be surface, pendant, or stem mounted (accessories sold separately)
• On EM mode, the fixture output a minimum of 700 lumens for 90 minutes, when fully charged
