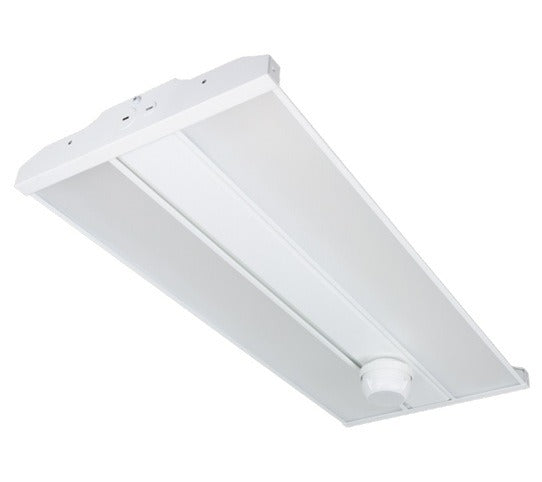

Maxlite HLS Series Wattage and Color Selectable LED Linear High Bay Light Fixture Dimmable
Maxlite HLS Series Wattage and Color Selectable LED Linear High Bay Light Fixture Dimmable
Specifications
Specifications
| Part Number# | HLS |
|---|---|
| Type of Area: | Industrial & Warehouse, Manufacturing Plants, Commercial Offices, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 17,000 - 60,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | ≥ 80 |
| Width: | 10.20" |
| Length: | 16.50" - 22.80" |
| Height: | 1.80" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Weight Each: | 5.39 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
MaxLite's HLS Series LED Linear High Bay is a high-efficacy fixture designed for demanding high-ceiling applications such as warehouses, manufacturing plants, and retail spaces. Offering up to 150 lumens per watt, it delivers between 17,000 and 60,000 lumens depending on the selected wattage and length, with CCT options of 4000K and 5000K (default set to 5000K). The compact design includes an integrated sensor port compatible with MaxLite's c-Max system for plug-and-play advanced controls, qualifying for DLC NLC utility rebates.
Features:
• V-hooks and 40” knotted chain included in standard model
• On EM mode, the fixture output is a minimum of 3750lm for 90 minutes, when fully charged
• CCT Selectable available on all wattages. Fixtures are set to 5000K as a default factory setting
• UL Listed for damp locations
• 10-year standard warranty
