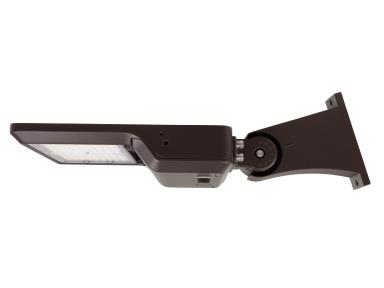

Maxlite AE100UT3-WCSBFCR Wattage and Color Selectable 100-Watt LED Slim Area Light Fixture Dimmable - While Supplies Last
Maxlite AE100UT3-WCSBFCR Wattage and Color Selectable 100-Watt LED Slim Area Light Fixture Dimmable - While Supplies Last
-
Specsheet:
Specifications
Specifications
| Part Number# | AE100UT3-WCSBFCR |
|---|---|
| Type of Area: | Pole / Street / Parking Lot, Road & Street |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 6,943 - 13,406 |
| Wattage: | 100 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, 175W HID Equivalent, 200W HID Equivalent, 250W HID Equivalent, CUL Listed, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed, Title 24 Compliant |
| CRI: | ≥80 |
| Dimensions: | 20.75" x 10.39" x 6.29" |
| Width: | 10.39" |
| Length: | 20.75" |
| Height: | 6.29" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 7.56 - 7.83 lbs |
| Manufacturer: | Maxlite |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Maxlite's 60/80/100-Watt Slim AE Area Light Fixture is designed to provide exceptional efficiency in a lightweight package, making it an ideal choice for both new and retrofit outdoor projects. It delivers up to 13,406 lumens with Type 3 light distributions. This fixture is versatile and can meet a wide range of pole-mounted lighting requirements. It offers impressive flexibility with options for selecting color temperature (CCT), and wattage, and comes with standard field-installable c-Max control capability. In addition to its impressive features, the Slim AE Area Fixture comes with a 10-year warranty, providing peace of mind and long-term reliability.
Features:
• Controls Ready with the ability to field install a variety of c-Max controls along with upgrades in the future
• CCT selectable between 3000/4000/5000K (450W is dedicated CCT)
• Wattage selectable on most versions
• Universal 120-277V standard, high voltage 277-480V option
• 10kA surge protection included in addition to driver surge protection, option for higher 20kA protection
• ANSI 3G vibration rated
• TAA compliance available - contact Maxlite for details
• Available in two mountings - Flexible Arm or Slipfitter
• Arm fits both square or round poles
