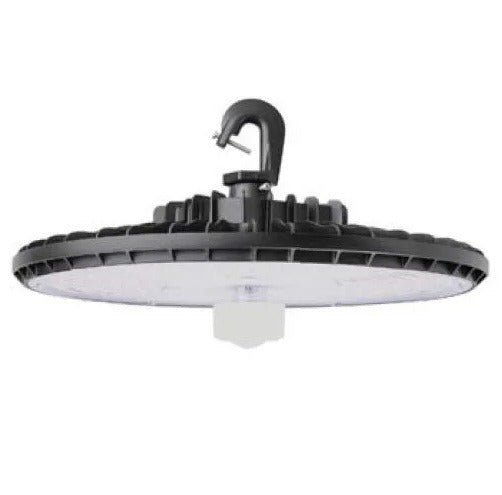

Louvers International SHB08230W27VDDKBAD2 Saturn Series 14-Inch LED Ring High Bay – Selectable Wattage & Color Temp
Louvers International SHB08230W27VDDKBAD2 Saturn Series 14-Inch LED Ring High Bay – Selectable Wattage & Color Temp
Specifications
Specifications
| Part Number# | SHB08230W27VDDKBAD2 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 13,500 - 32,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, IP65 / IP66 / IP67, LM79 / LM80, UL Listed |
| CRI: | >80 |
| Dimensions: | 14.1" MOL x 7.5" |
| Length: | 14.1" |
| Height: | 7.5" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Louvers International |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Louvers International SHB08230W27VDDKBAD2 Saturn 14" 230W LED Ring High Bay delivers powerful, energy-efficient lighting with wattage and color selectable options. Designed with advanced heat-conducting cast housing, it ensures optimal performance, long life, and consistent lumen output ranging from 6,000 to 40,000 lumens. Its anti-UV prismatic lens provides uniform light distribution and glare control, while offering color temperature flexibility from 3000K to 5000K. With 0-10V dimming, universal voltage compatibility, surge protection, and DLC Premium qualification, this fixture is ideal for commercial and industrial applications.
Features:
• Casting thermally conducts LED heat to optimize performance and long life
• Light engines are available in color-tunable versions. The CCT can be changed to three CCTs (3000K, 4000K, 5000K) or two CCTs (4000K, 5000K).
• Scalable Lumen Packages from 6,000 to 40,000 Lumens
• Anti-UV prismatic translucent lens is designed to shape the light uniformity and control the glare light
• Universal 120-277VAC input voltage
• 0-10V dimming standard with a dimming range of 100% to 10%
• PF >90%, THD <20%, 6KV surge protection
• Operating Temperature Range:
-40°C to 45°C (-40˚F to +113˚F) or -40°C to 50°C (-40˚F to +122˚F)
• DLC Premium Qualified
