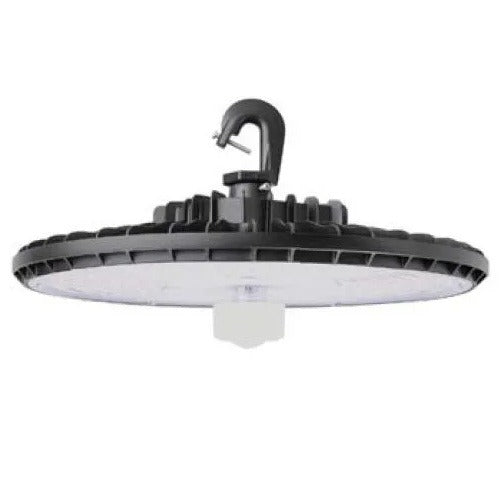

Louvers International SHB08210W27VDDKBAD2 Saturn Series 14-Inch LED Ring High Bay – Selectable Wattage & Color Temp
Louvers International SHB08210W27VDDKBAD2 Saturn Series 14-Inch LED Ring High Bay – Selectable Wattage & Color Temp
Specifications
Specifications
| Part Number# | SHB08210W27VDDKBAD2 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Commercial Offices, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 13,500 - 32,000 |
| Wattage: | 210 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, IP65 / IP66 / IP67, LM79 / LM80, UL Listed |
| CRI: | >80 |
| Dimensions: | 14.1" MOL x 7.5" |
| Length: | 14.1" |
| Height: | 7.5" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Louvers International |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Louvers International Saturn 14-Inch LED Ring High Bay delivers exceptional brightness and energy efficiency for commercial and industrial spaces. With selectable wattage and color temperature (3000K, 4000K, 5000K), it offers flexibility for various lighting needs. Its heat-conducting cast housing ensures optimal thermal performance, long lifespan, and stable lumen output from 6,000 to 40,000 lumens. The anti-UV prismatic lens provides uniform illumination and reduces glare. Featuring 0–10V dimming, universal 120–277VAC compatibility, 6KV surge protection, and DLC Premium certification, this high bay fixture guarantees reliable performance and long-term energy savings.
Features:
• Casting thermally conducts LED heat to optimize performance and long life
• Light engines are available in color-tunable versions. The CCT can be changed to three CCTs (3000K, 4000K, 5000K) or two CCTs (4000K, 5000K).
• Scalable Lumen Packages from 6,000 to 40,000 Lumens
• Anti-UV prismatic translucent lens is designed to shape the light uniformity and control the glare light
• Universal 120-277VAC input voltage
• 0-10V dimming standard with a dimming range of 100% to 10%
• PF >90%, THD <20%, 6KV surge protection
• Operating Temperature Range:
-40°C to 45°C (-40˚F to +113˚F) or -40°C to 50°C (-40˚F to +122˚F)
• DLC Premium Qualified
