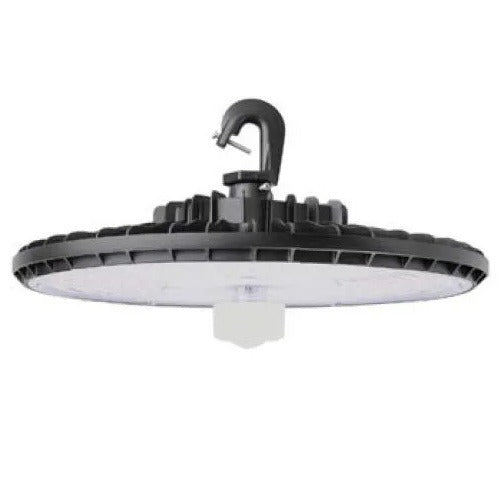

Louvers International SHB08150W27VDDKBAD2 Saturn Series 11-Inch LED Ring High Bay – Selectable Wattage & Color Temp
Louvers International SHB08150W27VDDKBAD2 Saturn Series 11-Inch LED Ring High Bay – Selectable Wattage & Color Temp
Specifications
Specifications
| Part Number# | SHB08150W27VDDKBAD2 |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Commercial Offices, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 9,800 - 24,000 |
| Wattage: | 150 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, IP65 / IP66 / IP67, LM79 / LM80, UL Listed |
| CRI: | >80 |
| Dimensions: | 10.7" MOL x 7.5" |
| Length: | 10.7" |
| Height: | 7.5" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Louvers International |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Louvers International Saturn Series 11-Inch LED Ring High Bay delivers powerful, efficient illumination for industrial and commercial spaces. With selectable wattage and color temperature options (3000K, 4000K, 5000K), it offers flexibility for diverse environments. The thermally conductive housing enhances LED performance and lifespan, while the anti-UV prismatic lens provides uniform, glare-free lighting. Operating on 120–277VAC with 0–10V dimming, it ensures energy efficiency and easy control. Featuring scalable lumen outputs from 6,000 to 40,000 lumens, 6KV surge protection, and DLC Premium certification, the Saturn Series is built for reliability and long-term savings.
Features:
• Casting thermally conducts LED heat to optimize performance and long life
• Light engines are available in color-tunable versions. The CCT can be changed to three CCTs (3000K, 4000K, 5000K) or two CCTs (4000K, 5000K).
• Scalable Lumen Packages from 6,000 to 40,000 Lumens
• Anti-UV prismatic translucent lens is designed to shape the light uniformity and control the glare light
• Universal 120-277VAC input voltage
• 0-10V dimming standard with a dimming range of 100% to 10%
• PF >90%, THD <20%, 6KV surge protection
• Operating Temperature Range:
-40°C to 45°C (-40˚F to +113˚F) or -40°C to 50°C (-40˚F to +122˚F)
• DLC Premium Qualified
