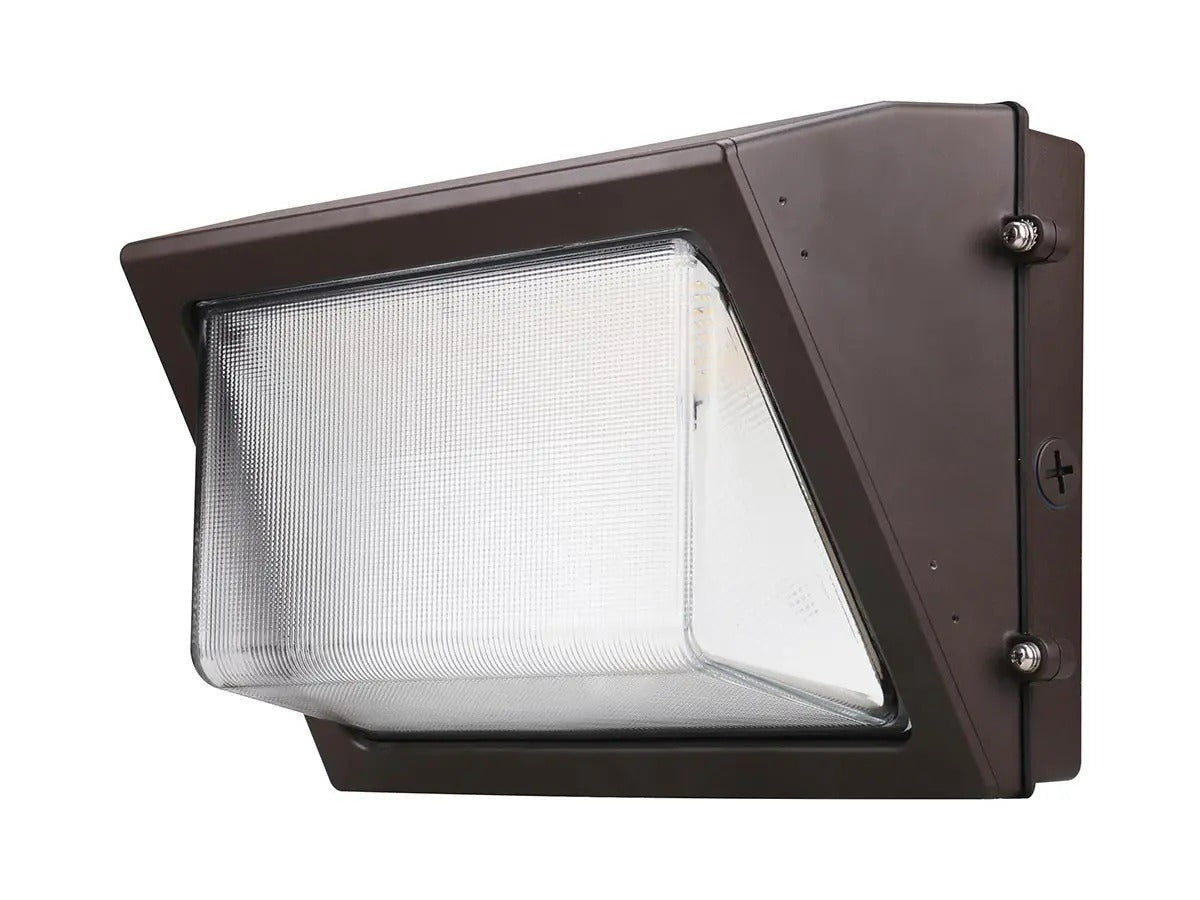

Linmore LED AW20S-A2-ADJ ACE Series Wattage and Color Selectable LED Wall Pack Light Fixture Dimmable
Linmore LED AW20S-A2-ADJ ACE Series Wattage and Color Selectable LED Wall Pack Light Fixture Dimmable
Specifications
Specifications
| Part Number# | AW20S-A2-ADJ |
|---|---|
| Type of Area: | Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lamp Life: | 150,000 Hours |
| Lumen Output: | 1,800 - 15,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, IP65 / IP66 / IP67, ROHS, UL Listed |
| CRI: | 80+ |
| Width: | 2.8" - 6.5" |
| Length: | 5.4" - 14.2" |
| Height: | 8.6" - 8.7" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 1.5 - 8 lbs |
| Manufacturer: | LinmoreLED |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Linmore's ACE Wall Pack Series is a versatile, DLC Premium Listed, ideal for efficient and durable lighting. It features two housing sizes: Small, delivering 1,800 to 3,900 lumens, and Medium, offering 5,600 to 15,000 lumens. With an impressive efficiency of up to 150 lumens per watt and a robust silicon-sealed gasket, it operates reliably in ambient temperatures up to 50°C (122°F). Designed for it boasts a rapid installation process, an easy-open design, and an optional emergency battery backup for the medium housing size.
Features:
• Two housing sizes
SM: 1,800 to 3,900 Lumens
MD: 5,600 to 15,000 Lumens
• Up to 150 LPW
• Up to 50°C (122°F) Ambient
• Silicon Sealed Gasket
• Rapid Installation
• Easy Open Design
• Emergency Battery Backup (available for Medium housing)
