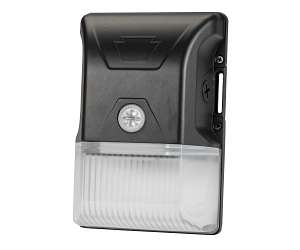

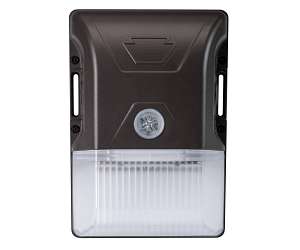

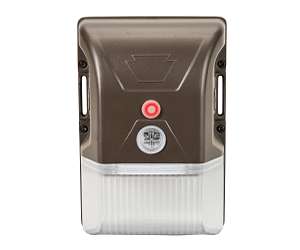

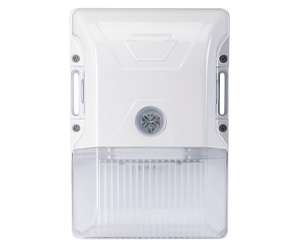

Keystone KT-WPLED20-S1-8CSB-VDIM 20-Watt Color Selectable Small Non-Cutoff LED Wall Pack Fixture Replaces 50-70W MH
Keystone KT-WPLED20-S1-8CSB-VDIM 20-Watt Color Selectable Small Non-Cutoff LED Wall Pack Fixture Replaces 50-70W MH
Specifications
Specifications
| Part Number# | KT-WPLED20-S1-8CSB-VDIM |
|---|---|
| Type of Area: | Apartment Buildings, Schools, Stairwell, Commercial Offices |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 2,330 - 2,430 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Premium, FCC Compliant, IP65 / IP66 / IP67, UL Listed |
| CRI: | >80 |
| Dimensions: | 5.81" x 3.09" x 8.61" |
| Width: | 3.09" |
| Length: | 5.81" |
| Height: | 8.61" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Keystone KT-WPLED20-S1-8CSB-VDIM is a 20-watt color-selectable small non-cutoff LED wall pack designed to replace 50–70W metal halide fixtures. Its low-profile, ADA-compliant housing and impact-resistant polycarbonate lens make it perfect for entryways, pathways, stairwells, and general outdoor security lighting. Featuring 0–10V dimming, a built-in dusk-to-dawn photocell, and a selectable color temperature, it offers reliable performance and customizable illumination. UL Certified for wet locations, IP65 rated, and built to last over 100,000 hours, this fixture delivers energy-efficient, long-lasting lighting for commercial and residential applications.
Features:
• Small low profile design can be mounted virtually anywhere, offering uniform vertical and horizontal distribution pattern for general safety and security illumination needs
• Heavy-duty, die-cast aluminum housing with (3) 1/2” threaded conduit hubs: (1) on back and (1) on each side
• Powered by Keystone 0–10V dimming LED drivers, dimmable to 10%
• Built-in dusk-to-dawn photocell behind translucent 1/2” threaded plug with anti-yellowing agent
• ADA Compliant with low-profile housing less than 4” deep
• Impact-resistant highly diffused polycarbonate lens with anti-yellowing agent offers reduced glare for low mounting height applications
• Ambient operating temperature: −40°C/−40°F to 45°C/113°F, with EM: 0°C/32°F to 45°C/113°F
• UL Certified for wet locations; IP65 rated
• Fixture impact rating IK07
• Power Factor: > 0.95
• THD: < 20%
• LED chip lifetime: L70 @ > 100,000 hrs @ 25°C/77°F ambient fixture temp
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
