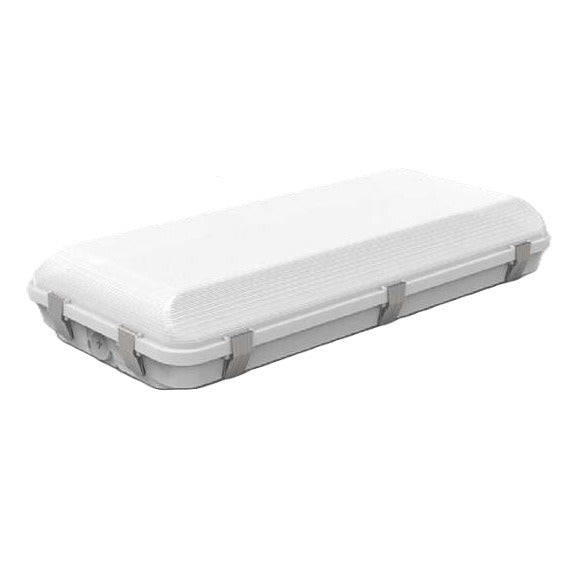

Keystone KT-VTLED105PS-HB2A-8CSA-VDIM Power and Color Select 2FT LED Vapor Tight Light Fixture Dimmable
Keystone KT-VTLED105PS-HB2A-8CSA-VDIM Power and Color Select 2FT LED Vapor Tight Light Fixture Dimmable
Specifications
Specifications
| Part Number# | KT-VTLED105PS-HB2A-8CSA-VDIM |
|---|---|
| Type of Area: | Commercial Offices, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 9,425 - 15,750 |
| Wattage: | 105 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, ANSI, CUL Listed, Dimmable, DLC Approved, DLC Premium, ETL Listed, IP66, NEMA, NSF, UL Listed |
| CRI: | >80 |
| Dimensions: | 25.59" x 12.13" x 4.33" |
| Width: | 12.13" |
| Length: | 25.59" |
| Height: | 4.33" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
Keystone's KT-VTLED105PS-HB2A-8CSA-VDIM is built for durability and high performance in rugged commercial and industrial environments. Featuring Keystone’s Power Select and Color Select technologies, it allows wattage and CCT adjustments between 3500K, 4000K, and 5000K for maximum flexibility. Its NEMA 4X enclosure, IP66 rating, and IK08 impact resistance ensure reliable operation in harsh conditions, while the frosted lens provides uniform, glare-free illumination. With 0–10V dimming, 10kV surge protection, and included mounting hardware, this LED vapor tight light is engineered for efficiency, reliability, and long-lasting performance.
Features:
• Keystone Power Select technology
• Keystone Color Select technology. Adjust CCT between 3500K/4000K/5000K
• Mounting hardware included: Surface Mount Clips and V-hooks
• Traditional design, medium width body, Vapor Tight fixture, suitable
for rugged, demanding applications
• Keystone 0-10V dimming driver with included 10kV surge protection
• NEMA 4X rated enclosure
• IP66 Ingress Protection
• IK08 Impact Rating
• 5VA/Anti- UA Aging PC Lens and Housing
• Ambient operating temperature: -40°C/-40°F to 50ºC/122ºF
