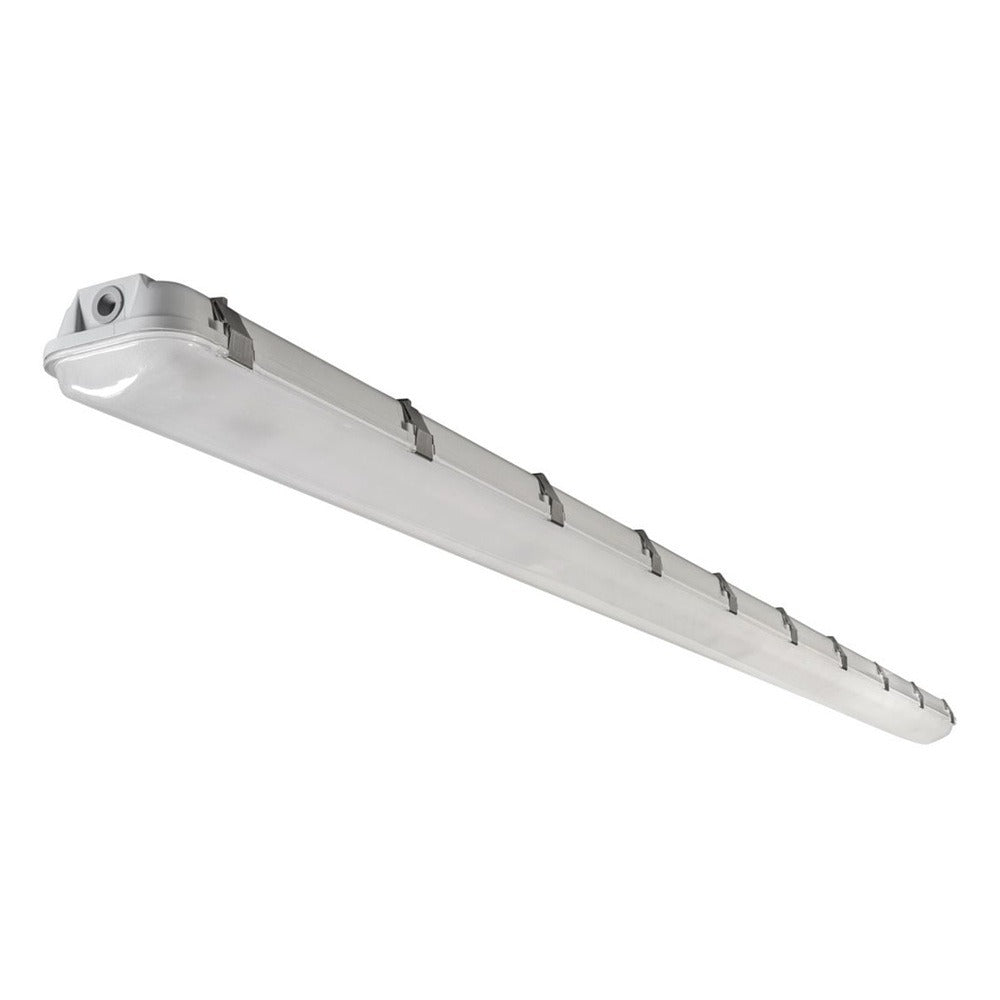

Keystone KT-VTLED100PS-M8A-8CSA-VDIM Power and Color Select 8FT LED Vapor Tight Medium Width Light Fixture Dimmable
Keystone KT-VTLED100PS-M8A-8CSA-VDIM Power and Color Select 8FT LED Vapor Tight Medium Width Light Fixture Dimmable
Specifications
Specifications
| Part Number# | KT-VTLED100PS-M8A-8CSA-VDIM |
|---|---|
| Type of Area: | Commercial Offices, Factory / Industrial |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 8,700 - 15,000 |
| Wattage: | 100 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, ANSI, CUL Listed, Dimmable, DLC Approved, DLC Premium, ETL Listed, IP66, NEMA, UL Listed |
| CRI: | >80 |
| Dimensions: | 98.42" x 5.31" x 3.74" |
| Width: | 5.31" |
| Length: | 98.42" |
| Height: | 3.74" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
| Fixture Length: | 8 Feet / 96 Inches |
Details
Details
ShineRetrofits Input:
The Keystone KT-VTLED100PS-M8A-8CSA-VDIM is an 8-foot LED Vapor Tight Fixture built for tough environments and reliable performance. With Power Select and Color Select technology, you can easily adjust wattage and choose between 3500K, 4000K, or 5000K color temperatures. Its IP66, NEMA 4X, and IK08 ratings ensure protection against water, dust, and impact, making it ideal for demanding industrial and commercial applications. Featuring 0-10V dimming, surge protection, and DLC qualification, this energy-efficient fixture provides long-lasting, high-quality lighting.
Features:
• Keystone Power Select technology
• Keystone Color Select technology. Adjust CCT between 3500K/4000K/5000K
• Mounting Hardware included: V-hooks, Surface Mount clips, and hole plug for out-of-the-box installation.
• Traditional design, medium width body, Vapor Tight fixture, suitable for rugged, demanding applications
• Keystone 0-10V dimming driver with included 10kV surge protection
• NEMA 4X rated enclosure
• IP66 Ingress Protection
• IK08 Impact Rating
• 5VA/Anti- UA Aging PC Lens and Housing
• Ambient operating temperature: -40°C/-40°F to 50ºC/122ºF
• Sensor receptacle designed to accept easy screw-in installation of optional sensors
• LED chip lifetime: L70 >100,000 hours @ 25ºC/77ºF ambient fixture temperature
• Stainless steel 304, lens clips
• UL Certified for Wet Locations
• DesignLights Consortium® (DLC) qualified product. Not all product variations listed on this page are DLC premium. Visit https://designlights.org/qpl/ to confirm if the product meets the DLC Standard or Premium designation.
