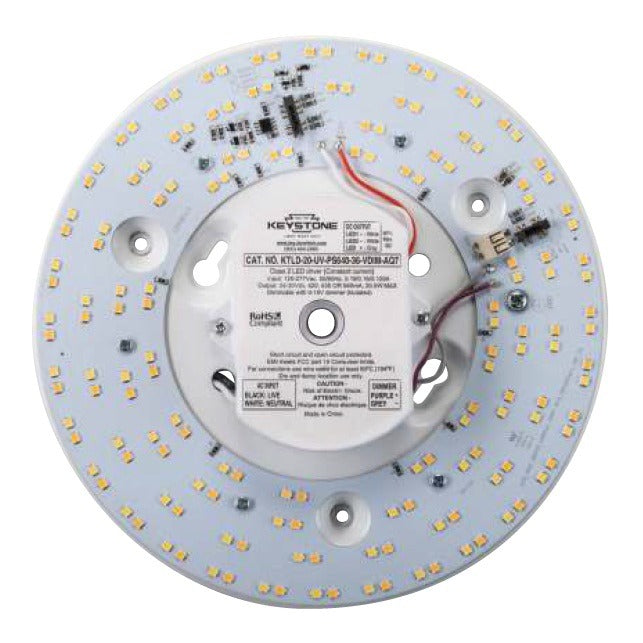

Keystone KT-RKIT20PS-8CP-8CSC-VDIM Wattage and Color Selectable 8-Inch Circular LED Light Engine
Keystone KT-RKIT20PS-8CP-8CSC-VDIM Wattage and Color Selectable 8-Inch Circular LED Light Engine
Specifications
Specifications
| Part Number# | KT-RKIT20PS-8CP-8CSC-VDIM |
|---|---|
| Type of Area: | Schools, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 2,100 - 3,200 |
| Wattage: | 20 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 3.07" x 3.54" x 0.88" |
| Width: | 3.54" |
| Length: | 3.07" |
| Height: | 0.88" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - Retrofit Kit |
Details
Details
ShineRetrofits Input:
Upgrade your lighting with the Keystone KT-RKIT20PS-8CP-8CSC-VDIM — an 8-inch color and wattage selectable circular LED light engine designed for ultimate flexibility and efficiency. This dimmable solution allows you to easily adjust both brightness and color temperature, ensuring the perfect ambiance for any space. Ideal for commercial or residential applications, Keystone’s advanced LED technology delivers long-lasting performance while reducing energy costs. Modernize your space with a reliable, customizable lighting solution that adapts to your needs.
Features:
• Power and CCT are selectable via DIP switches
• Operating temperature: –20ºC/–4ºF to 45ºC/113ºF
• L70 > 50,000 hours
• UL classified
• Meets FCC Part 15, Class B (consumer) limit
• Beam angle: 120º
• THD: < 20% Dimming: 0–10V
• Minimum dimming level: 10%
• Pre-assembled; mounting accessories include
