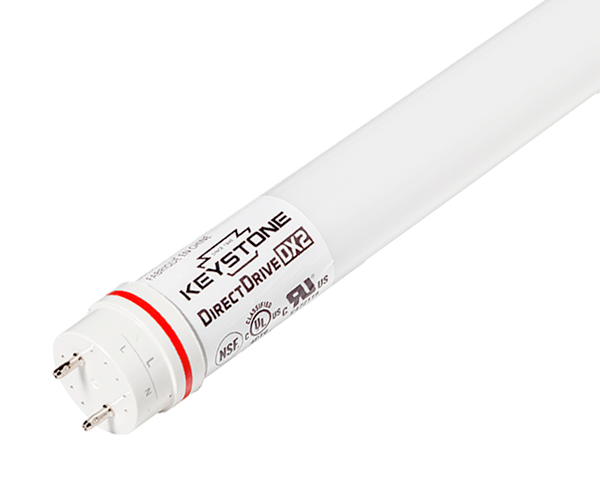

Keystone KT-LED12T8-48G-8CSJ-DX2 DLC Listed 12 Watt 4-Foot T8 LED Linear DX2 Single and Double Ended Wiring Tube Lamp Selectable Color Dimmable
Keystone KT-LED12T8-48G-8CSJ-DX2 DLC Listed 12 Watt 4-Foot T8 LED Linear DX2 Single and Double Ended Wiring Tube Lamp Selectable Color Dimmable
Specifications
Specifications
| Part Number# | KT-LED12T8-48G-8CSJ-DX2 |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Maintenance Rooms, Hospitals, Commercial Offices, Education, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,700 - 1,800 |
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 47.20" x 1.10" Dia |
| Width: | 1.10" Dia |
| Length: | 47.20" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The Keystone KT-LED12T8-48G-8CSJ-DX2 is a DLC-listed 12-watt 4-foot T8 LED linear tube lamp. It features DX2 technology, allowing for both single and double-ended wiring. This versatile lamp offers selectable color options and is dimmable for customizable lighting. Ideal for energy-efficient, flexible lighting solutions.
Features:
• Replacement for conventional fluorescent lamp
• Single- or double-ended line voltage wiring
• Keystone Color Select technology (3000/3500/4000/5000/6500K)
• Instant startup
• Frosted glass lens eliminates pixelation
• Approximately 60% more energy-efficient than standard F32T8 lamps
• Environmentally friendly: No mercury used
• 135+ Lumens per Watt
• Operating temperature: −20ºC/−4ºF to 45ºC/113ºF
• Storage temperature: −30ºC/−22ºF to 60ºC/140ºF
• Operating humidity: 10–80%
• Integral driver (isolated) eliminates the need for an external driver or ballast
• Not compatible with Keystone AC emergency drivers:
KT-EMRG-LED-5-500-AC, KT-EMRG-LED-5-500-AC/DF
KT-EMRG-LED-12-1200-AC, or KT-EMRG-LED-12-1200-AC /DF
• Not rated for use in Vapor Tight style fixtures
• Meets FCC Part 15, Class B
• 50,000+ hour lifetime
• DLC Listed
• UL Classified
• Lamp is dimmable when used with an appropriate dimming accessory (purchased separately). Contact Keystone for more details to find out what is best for the intended application.
Color Select (CCT) Adjustment:
• This fixture is equipped with field-adjustable Keystone Color Select technology
• Adjustable CCT (3000/3500/4000/5000/6500K)
• Adjust the dip switch to desired setting (preset to 4000K CCT)
