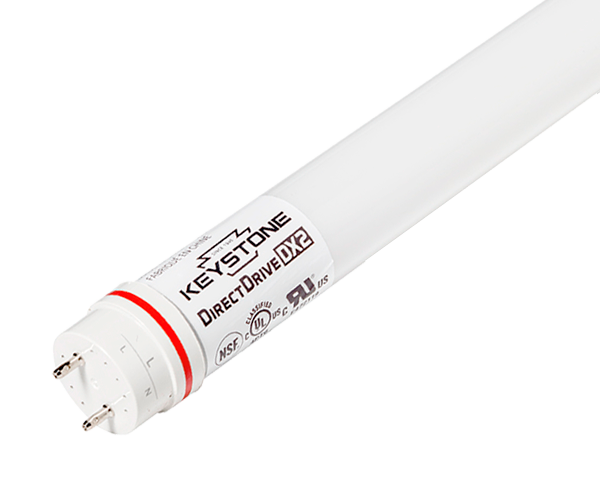

Keystone KT-LED10.5T8-48G-8CSJ-DX2 DLC Listed 10.5 Watt 4-Foot T8 LED Linear DX2 Single and Double Ended Wiring Tube Lamp Selectable Color Dimmable
Keystone KT-LED10.5T8-48G-8CSJ-DX2 DLC Listed 10.5 Watt 4-Foot T8 LED Linear DX2 Single and Double Ended Wiring Tube Lamp Selectable Color Dimmable
Specifications
Specifications
| Part Number# | KT-LED10.5T8-48G-8CSJ-DX2 |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Maintenance Rooms, Hospitals, Commercial Offices, Education, Retail |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 1,575 - 1,650 |
| Wattage: | 10 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 47.20" x 1.10" Dia |
| Width: | 1.10" Dia |
| Length: | 47.20" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Keystone Technologies |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
The Keystone KT-LED10.5T8-48G-8CSJ-DX2 DLC Listed 10.5 Watt 4-Foot T8 LED Linear Tube Lamp supports single and double-ended wiring. It features Keystone Color Select technology, offering selectable color temperatures from 3000K to 6500K. This dimmable lamp is approximately 60% more energy-efficient than standard F32T8 lamps and has a frosted glass lens to eliminate pixelation. It operates from −20ºC to 45ºC and is environmentally friendly without mercury.
Features:
• Replacement for conventional fluorescent lamp
• Single-or double-ended line voltage wiring
• Keystone Color Select technology (3000/3500/4000/5000/6500K)
• Frosted glass lens eliminates pixelation
• Approximately 60% more energy-efficient than standard F32T8 lamps
• Environmentally friendly: No mercury used
• Operating temperature: −20ºC/−4ºF to 45ºC/113ºF
• Storage temperature: −30ºC/−22ºF to 60ºC/140ºF
• Operating humidity: 10–80%
• Integral driver (isolated) eliminates the need for an external driver or ballast
• Not compatible with Keystone AC emergency drivers:
KT-EMRG-LED-5-500-AC, KT-EMRG-LED-5-500-AC/DF KT-EMRG-LED-12-1200-AC, or KT-EMRG-LED-12-1200-AC/DF
• Not rated for use in Vapor Tight style fixtures
• Meets FCC Part 15, Class B
• 50,000+ hour lifetime
• DLC Listed
• UL Classified
• Lamp is dimmable when used with an appropriate dimming accessory (purchased separately). Contact Keystone for more details on what is best for the intended application.
Color Select (CCT) Adjustment:
• This fixture is equipped with field-adjustable Keystone Color Select technology
• Adjustable CCT (3000/3500/4000/5000/6500K)
• Adjust dip switch to desired setting (preset to 4000K CCT)
