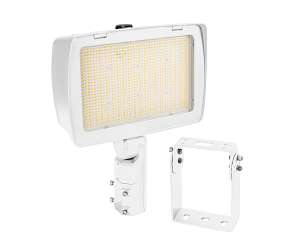

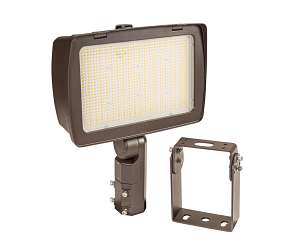

Keystone KT-FLED290PS Wattage and Color Selectable High Power LED Floodlight Fixture with Optic Swap Replaces 1000W MH
Keystone KT-FLED290PS Wattage and Color Selectable High Power LED Floodlight Fixture with Optic Swap Replaces 1000W MH
Specifications
Specifications
| Part Number# | KT-FLED290PS |
|---|---|
| Type of Area: | Landscape & Flood, Sign & Billboards, Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 29,400 - 43,500 |
| Wattage: | 140 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, 1000W HID Equivalent, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | > 80 |
| Width: | 5.76" |
| Length: | 15.34" |
| Height: | 18.89" - 20.33" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120-480V |
| Weight Each: | 21.21 lbs. |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Keystone Technologies’ High Power LED Floodlight is built for superior performance, efficiency, and versatility in commercial, industrial, and large-area lighting applications. Featuring power select, color select, and interchangeable optics, this floodlight provides customizable solutions to fit your exact lighting needs. It operates reliably on both 120–277V and 277–480V input ranges, making it suitable for a wide range of electrical systems. With two mounting options and durable bronze or white finishes, Keystone’s floodlight ensures easy installation, modern aesthetics, and long-lasting performance.
Features:
• Keystone Power Select technology
• Keystone Color Select technology (3000/4000/5000K) High power floodlight design based on established floodlight principles
• Innovative optic swap capability for quick, tool-free lens change
• Three lenses in the box: NEMA 7H × 6V installed, 6H × 6V & 5H × 5V included
• Heavy-duty interchangeable slipfitter and trunnion mount options included
• Die-cast aluminum housing, with optional glare shield accessory (sold separately) 3-pin twist-lock photocell and shorting cap included with NEMA/ANSI C136.10
• 3-pin twist-lock receptacle
• Keystone 0–10V dimming driver with 6kV surge protection
• Ambient operating temperature: –40°C/–40°F to 50°C/122°F
• UL Certified for wet locations; IP65 rated
• Power factor: > 0.95
• THD: < 20%
• LED chip lifetime: L70 > 100,000 hrs @ 25°C/77°F ambient fixture temperature
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
