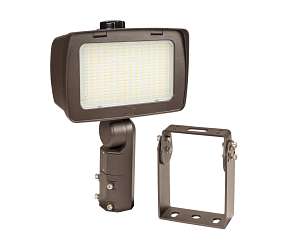

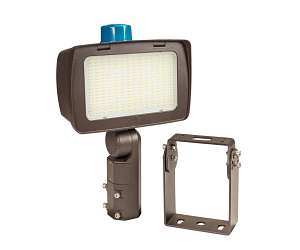

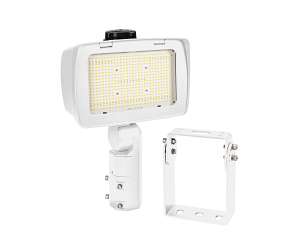

Keystone KT-FLED140PS Wattage and Color Selectable High Power LED Floodlight Fixture with Optic Swap Replaces 400W MH
Keystone KT-FLED140PS Wattage and Color Selectable High Power LED Floodlight Fixture with Optic Swap Replaces 400W MH
Specifications
Specifications
| Part Number# | KT-FLED140PS |
|---|---|
| Type of Area: | Landscape & Flood, Sign & Billboards, Wall Mount & Building Exteriors |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 14,000 - 21,000 |
| Wattage: | 140 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | > 80 |
| Width: | 5.58" |
| Length: | 12.35" |
| Height: | 16.93" - 18.34" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120-480V |
| Weight Each: | 18.12 lbs. |
| Manufacturer: | Keystone Technologies |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Keystone High Power LED Floodlight delivers powerful, energy-efficient lighting for commercial, industrial, and large-area applications. With interchangeable optics, power select, and color select technology, this floodlight adapts to meet your specific lighting needs. It supports both 120–277V and 277–480V input ranges for reliable operation across different electrical systems. Designed with two mounting options and durable bronze or white finishes, it ensures easy installation and long-lasting performance.
Features:
• Keystone Power Select technology
• Keystone Color Select technology (3000/4000/5000K) High power floodlight design based on established floodlight principles
• Innovative optic swap capability for quick, tool-free lens change
• Three lenses in the box: NEMA 7H × 6V installed, 6H × 6V & 5H × 5V included
• Heavy-duty interchangeable slipfitter and trunnion mount options included
• Die-cast aluminum housing, with optional glare shield accessory (sold separately) 3-pin twist-lock photocell and shorting cap included with NEMA/ANSI C136.10
• 3-pin twist-lock receptacle
• Keystone 0–10V dimming driver with 6kV surge protection
• Ambient operating temperature: –40°C/–40°F to 50°C/122°F
• UL Certified for wet locations; IP65 rated
• Power factor: > 0.95
• THD: < 20%
• LED chip lifetime: L70 > 100,000 hrs @ 25°C/77°F ambient fixture temperature
• Meets FCC Part 15, Part B, Class A standards for conducted and radiated emissions
