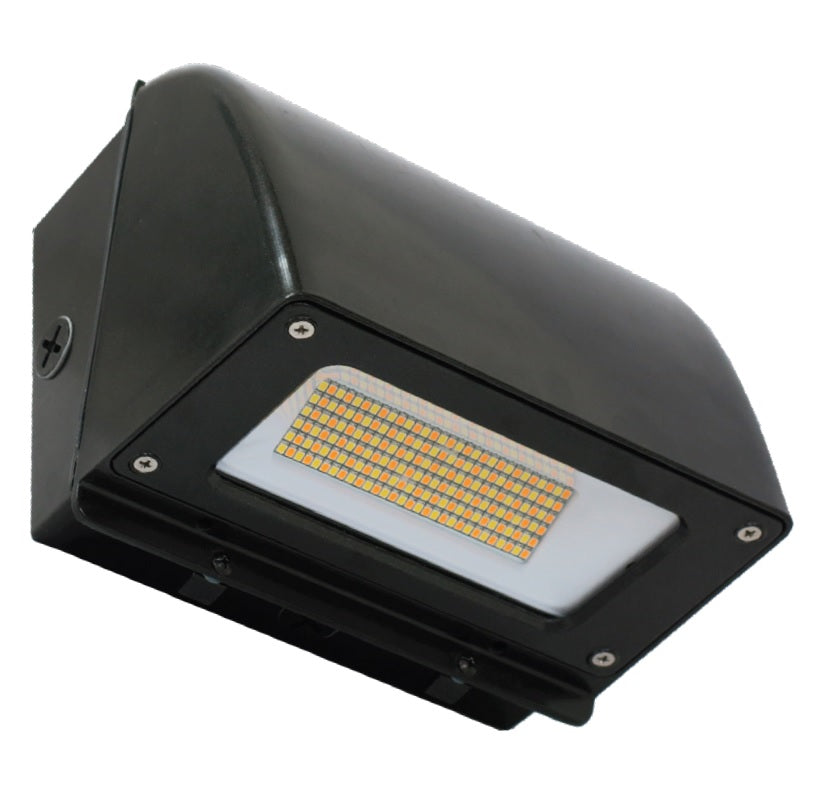

Jarvis Lighting AWP Wattage and Color Adjustable Dark Sky Forward Throw Wall Pack Fixture Dimmable
Jarvis Lighting AWP Wattage and Color Adjustable Dark Sky Forward Throw Wall Pack Fixture Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | AWP-3ML6-30K/40K/50K-UV-BRZ-DTO |
|---|---|
| Type of Area: | Large Retail & Open Areas, Parking Garage, Schools, Wall Mount & Building Exteriors |
| Color Temp: | 3000K/4000K/5000K |
| Lamp Life: | 50,000+ Hours |
| Lumen Output: | 3,366 - 6,732 |
| Wattage: | 47 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 10 Year Warranty, CUL Listed, Dark Sky Compliant, DLC Premium, LM79 / LM80, UL Listed, Title 24 Compliant |
| CRI: | ≥ 70 |
| Dimensions: | 8.00" x 7.10" x 5.90" |
| Width: | 7.10" |
| Length: | 8.00" |
| Height: | 5.90" - 6.90" |
| Dimmable: | Yes |
| Product Warranty: | 10 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.6 lbs |
| Manufacturer: | Jarvis Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Jarvis Lighting's AWP LED Wall pack offers a flexible design and functionality with adjustable color temperature and wattage. It delivers up to 6,732 lumens at soft white, neutral, and daylight with up to 47 wattages only. The fixture can be switched after installation between forward throw and dark sky if site requirements change. Highly efficient and durable making it perfect for security applications, pathways, and perimeter lighting.
Features:
• Unique Flexpack™ design
• Adjustable color temperature and wattage
• Converts between a forward throw and a dark sky wall pack
• Can be switched after installation between forward throw and dark sky if site requirements change
• UV-resistant powder coat finish avoids fading and flaking
• Conduit knockouts on all four sides and rear
• Slim, compact design
• Compatible with Jarvis Link networked lighting control systems
• 10-Year Warranty
