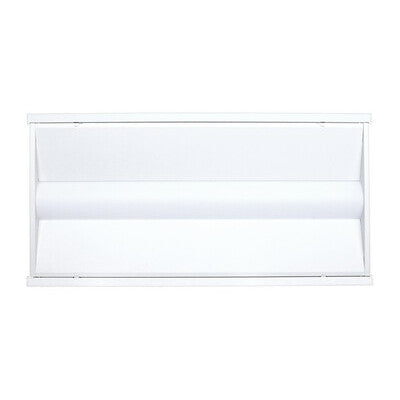

Eiko VOL24R/PS49 DLC Premium Listed 2x4 Recessed LED Volumetric Troffer Retrofit Wattage Selectable Dimmable
Eiko VOL24R/PS49 DLC Premium Listed 2x4 Recessed LED Volumetric Troffer Retrofit Wattage Selectable Dimmable
Specifications
Specifications
| Part Number# | VOL24R/PS49 |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Education, Hospitality, Retail, Healthcare / Disinfection |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 3,700 - 6,300 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Premium, FCC Compliant, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | 47.75" x 1.57" x 11.87" |
| Width: | 1.57" |
| Length: | 47.75" |
| Height: | 11.87" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 15.350 lbs |
| Manufacturer: | Eiko |
| Technology: | LED - Retrofit Kit |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:
This Volumetric Troffer Retrofit is an easy-to-install recessed fixture that can be used in existing fixture housing in various applications such as office and retail, reception areas, hospitality, healthcare and more! Modern fixture with clean styling, PowerSet selectable wattages and optional 3500/4000/5000K FieldCCeT selectable CCT. Long lasting with DLC Premium certification and more than 50,000 hours rated life with 5 year limited warranty.
Features:
• Architectural recessed LED retrofit luminaire installs in minutes utilizing existing fixture housing
• Direct/indirect illumination provides visual comfort with minimal glare
• Clean styling complements today’s modern office decor
• One for one alternative LED solution to fluorescent luminaires/fixtures/troffers
• PowerSet feature allows for multiple “set and forget” lumen stops in each fixture
• FieldCCeT feature allows for multiple “set and forget” CCT options in each fixture
• Up to 50% energy savings over fluorescent troffers
• 0-10V dimmable
• 130 lumens per watt
• Available for 2’x2’ retrofit applications
Listings:
• UL Listed for dry/damp locations
• DesignLights Consortium® Premium Qualified - meets the
requirements for the highest DLC qualification for efficacy and
lumen maintenance
LED Characteristics:
• Rated lifetime L90: >50,000 hours
• PowerSet: 39/32/24/19W
• CRI: >80
Electrical:
• Input voltage: 120-277V
• 0-10V dim-to-off driver (<5% minimum dimming level)
• 12V, 60mA DC auxiliary power
• Power Factor: >.90
• THD: <20%
Construction:
• Reflector precision die-formed, powder-coated steel construction
• Diffuse polycarbonate lens provides even illumination and visual
comfort
• -4°F to 104°F (-20°C to 40°C) operating temperature
Warranty:
• 5 year limited warranty; see eiko.com for warranty details
• Additional warranty options available; consult EiKO for details
Applications:
• Conference rooms
• Retail
• Offices
• Hospitality
• Healthcare
• Schools
• Reception areas
• Corridors
• Foyer
