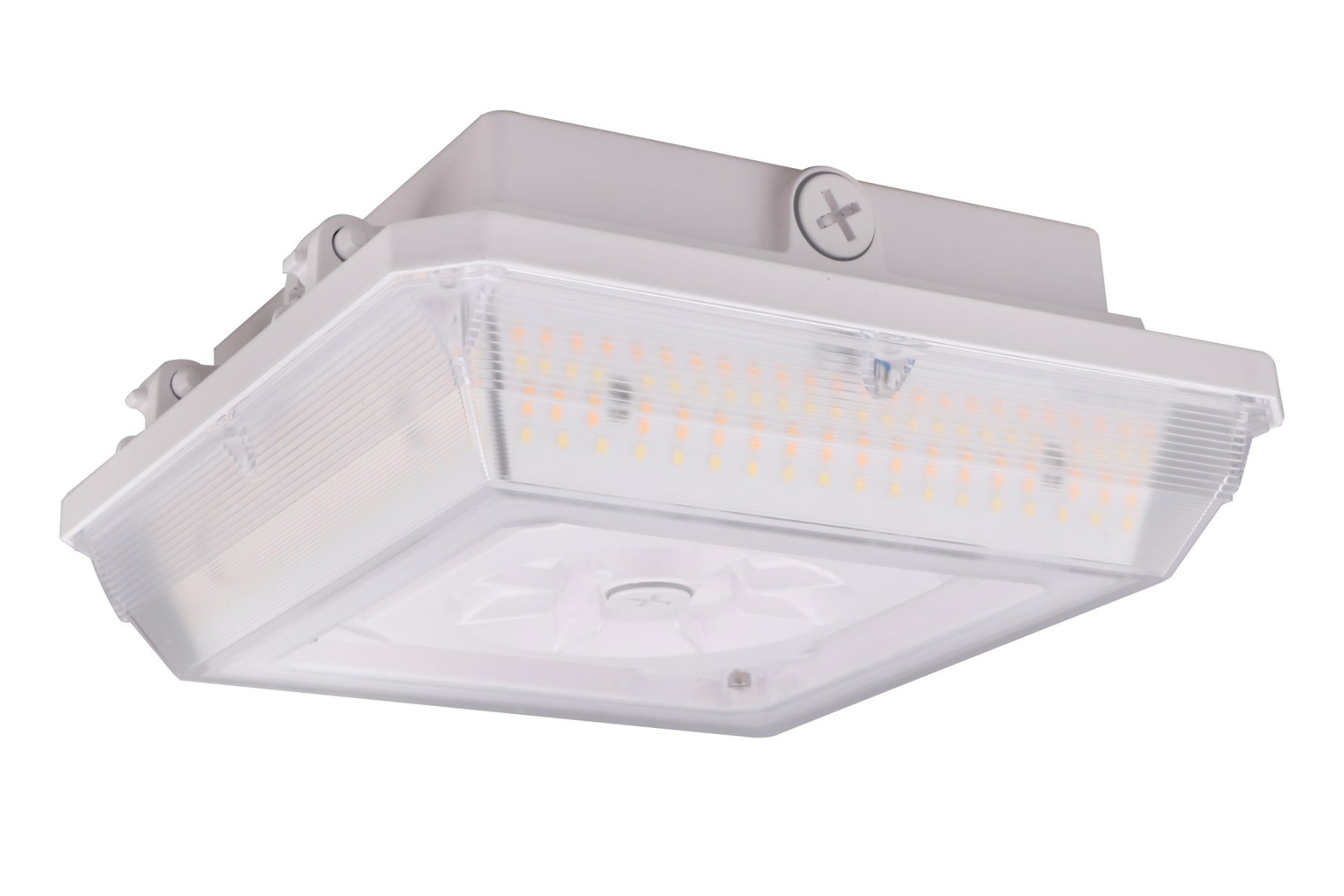

Eiko PG1-PS90-FCCT-H DLC Premium Color and Wattage Selectable LED Parking Garage Fixture Dimmable Replaces Up to 250W HID
Eiko PG1-PS90-FCCT-H DLC Premium Color and Wattage Selectable LED Parking Garage Fixture Dimmable Replaces Up to 250W HID
Specifications
Specifications
| Part Number# | PG1-PS90-FCCT-H |
|---|---|
| Type of Area: | Large Retail & Open Areas, Parking Garage |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 12,600 / 10,500 / 8,400 |
| Wattage: | 90 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, ETL Listed, FCC Compliant, IP65 / IP66 / IP67, ROHS, UL Listed |
| CRI: | >80 |
| Dimensions: | 9.60" x 9.60" x 5.56" |
| Width: | 9.60" |
| Length: | 9.60" |
| Height: | 5.56" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | 120V-347V |
| Weight Each: | 5.1 lbs. |
| Manufacturer: | Eiko |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Eiko's PG1 Series is a modern architectural-style garage and canopy fixture is designed for ease and versatility. It features Controls Ready technology, allowing quick integration of Standalone or Networked Lighting Controls via a screw-in receptacle. A hinged junction box simplifies installation and maintenance, while four 1/2” knockouts and a 3/4” top knockout, along with a 12mm pre-drilled hole for a battery backup test button, offer flexible wiring options. The PowerSet feature enables multiple lumen outputs straight from the box, and FieldCCeT allows users to choose from multiple color temperature settings within a single fixture.
Features:
HIGHLIGHTS
• Architectural modern style garage and canopy
• Controls Ready makes adding controls quick and easy. Includes screw-in receptacle for Standalone sensors or Networked Lighting Controls
• Hinged junction box makes installation and maintenance easier
• Four 1/2” Knockouts (one on each side) plus one 3/4’’ on the top; one 12mm pre-drill hole for battery backup test button.
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provides multiple color temperature settings in one fixture
CERTIFICATIONS
• UL Certified for US & Canada • RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Wet Location
• IP65 Rated
• IK08
• DesignLights Consortium® Premium Qualified - meets the requirements for the highest DLC qualification for efficacy and lumen maintenance
PERFORMANCE
• High efficacy, up to 140 lm/W
• Available in PowerSet models: power-selectable 45/35/35W and 90/75/60W
• Available in FieldCCeT models: field selectable 4000/5000K
• CRI: >80
• Beam Angle: 190°
• Estimated L70: 100,000 Hours
ELECTRICAL
• Input voltage:120-347V • 0-10V dimming, dim-to-off
• 12VDC Aux, 100mA max
• Surge Protection: 4kV (PS45), 6kV (PS90)
• Power factor: >0.9 • THD: ≤20% THERMAL
• -40°F to 113°F (-40°C to 45°C) ambient operating temperature
• Ambient operating temperature with sensor (see selected sensor datasheet)
CONSTRUCTION
• White powder coated die-cast aluminum housing
• Impact-resistant polycarbonate lens
WARRANTY
• 5 Year limited warranty available online. Contact your EiKO sales rep for additional details.
APPLICATIONS
• Canopies
• Parking Garages
