Eiko L8.3WPLC/AB/8FCCT/U/G24D/HR 8.3W Color Selectable LED PLC Type A+B Dual Mode Horizontal Lamp
Eiko L8.3WPLC/AB/8FCCT/U/G24D/HR 8.3W Color Selectable LED PLC Type A+B Dual Mode Horizontal Lamp
Specifications
Specifications
| Part Number# | L8.3WPLC/AB/8FCCT/U/G24D/HR |
|---|---|
| Type of Area: | Office & Small Retail, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 1,010 |
| Wattage: | 8 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, FCC Compliant, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | 6.36" x 1.2" |
| Width: | 1.2" |
| Length: | 6.36" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Eiko |
| Technology: | LED |
Details
Details
ShineRetrofits Input:

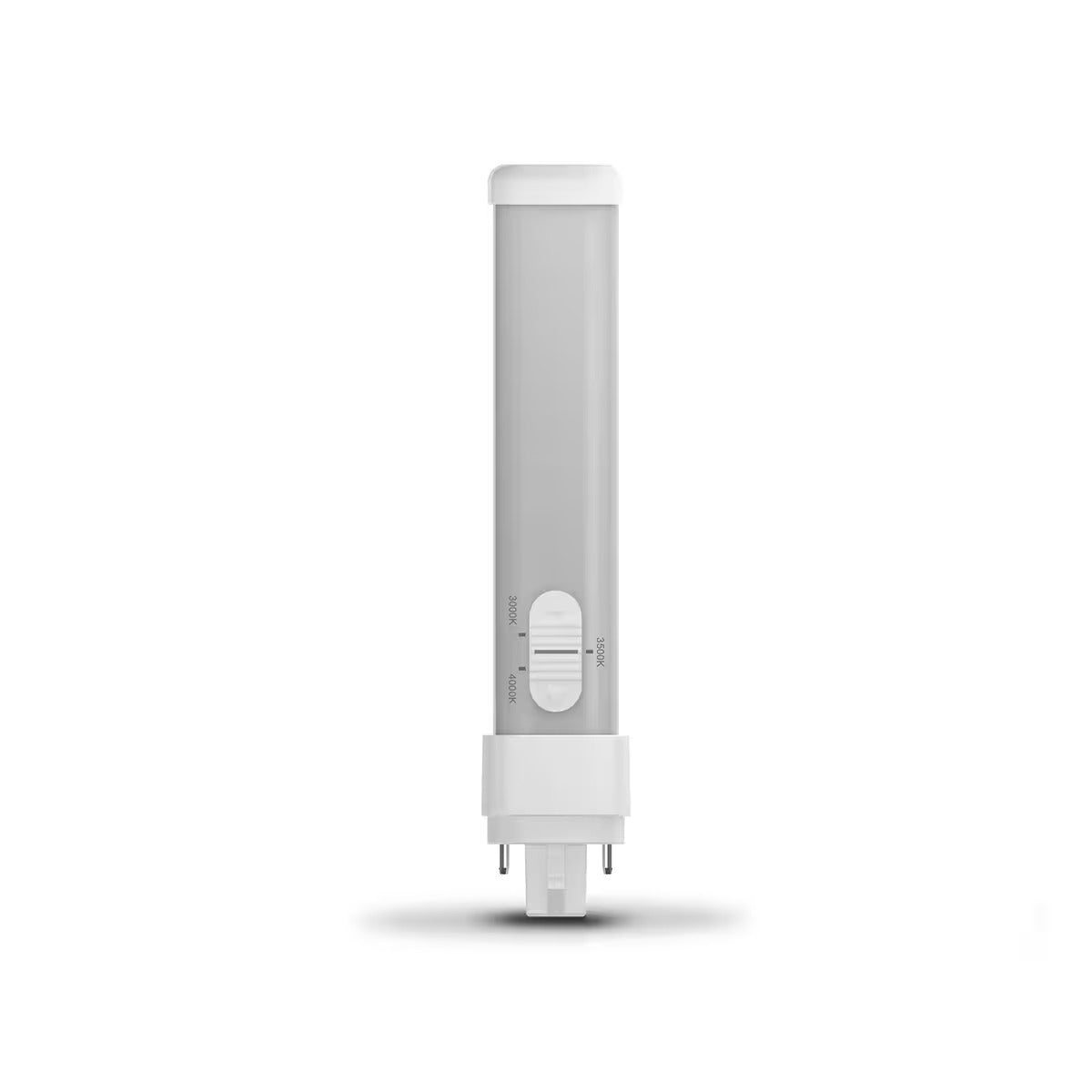

Eiko's 8.5-watt LED PLC lamp is designed with dual-mode Type A+B compatibility for installation flexibility. It operates with either an existing magnetic ballast (Type A) or direct line voltage by bypassing the ballast (Type B), making it suitable for both 2-pin and 4-pin bases. This LED lamp serves as an energy-efficient replacement for traditional G23 and GX23 CFL lamps, with a rotatable base for precision aiming in horizontal applications. Delivering up to 119 lumens per watt, it features selectable color temperatures of 3000K, 3500K, and 4000K and provides instant full brightness.
Features:
• LED PL Type A+B dual mode lamps works on magnetic ballasts or direct line voltage as well as 2 or 4 pin bases
• Works with the existing ballast (Type A) or bypassing the ballast and wiring directly to line voltage (Type B)
• LED PL G23 & GX23 (2-pin) replaces traditional G23 & GX23 (2-pin) 7W, 9W, and 13W CFL lamps (Type A+B installation)
• Rotatable base provides precision aiming (horizontal installation)
• Instantaneous full light output upon power-up
• Polycarbonate lens reduces the risk of injury or breakage
• High efficacy: up to 119 lm/W
• Field-selectable CCT 3000K/3500K/4000K
• CRI >80
• Estimated Lifetime: L70> 50,000 hours
• Aluminum heatsink
• Polybutylene Terephthalate base
• Shatter-resistant lamp housing
• 5-Year limited warranty
