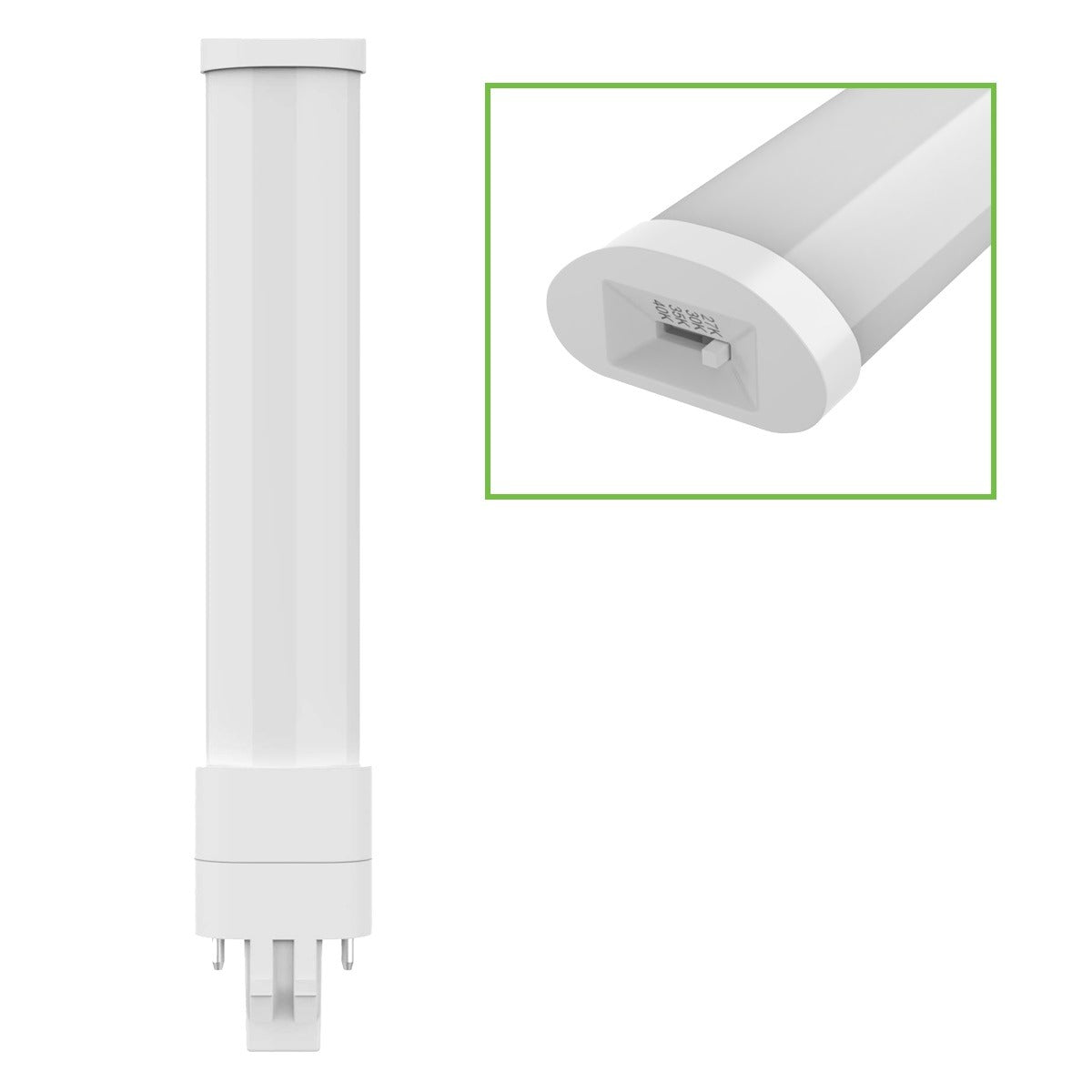

Eiko L5.5WPLS/ABP/8FCCT/U/GX23/H 5.5W Color Selectable LED PLS Type A+B Dual Mode Horizontal Lamp
Eiko L5.5WPLS/ABP/8FCCT/U/GX23/H 5.5W Color Selectable LED PLS Type A+B Dual Mode Horizontal Lamp
Specifications
Specifications
| Part Number# | L5.5WPLS/ABP/8FCCT/U/GX23/H |
|---|---|
| Type of Area: | Office & Small Retail, Commercial Offices, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 620 |
| Wattage: | 5.5 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, FCC Compliant, NSF, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | 7.0" x 1.17" |
| Width: | 1.17" |
| Length: | 7.0" |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Manufacturer: | Eiko |
| Technology: | LED |
Details
Details
ShineRetrofits Input:
Eiko's 5.5-watt LED PLS lamp is designed for versatile compatibility and installation in horizontal fixtures. Featuring Type A+B dual-mode operation, it can function with an existing magnetic ballast (Type A) or be installed directly with line voltage by bypassing the ballast (Type B) suitable for GX23 base. With selectable color temperatures, this lamp achieves a high efficacy and instant full brightness upon power-up. With an L70 lifetime of over 50,000 hours and a 5-year warranty, this lamp provides a reliable, energy-efficient replacement for traditional 13W CFL.
Features:
• LED PL Type A+B dual mode lamps works on magnetic ballasts or direct line voltage as well as 2 or 4 pin bases
• Works with the existing ballast (Type A) or bypassing the ballast and wiring directly to line
voltage (Type B)
• LED PL G23 & GX23 (2-pin) replaces traditional G23 & GX23 (2-pin) 7W, 9W, and 13W CFL lamps (Type A+B installation)
• Instantaneous full light output upon power-up
• Polycarbonate lens reduces the risk of injury or breakage
• High efficacy: up to 113 lm/W
• Field-selectable CCT 27/30/35/4000K
• CRI >80
• Estimated Lifetime: L70> 50,000 hours
• Aluminum heatsink
• Polybutylene Terephthalate base
• Shatter-resistant lamp housing
• 5-Year limited warranty
