Eiko DLC Listed VLR1-24PS45-FCCT-H Wattage and Color Selectable 2x4 LED Volumetric Troffer Retrofit Dimmable
Eiko DLC Listed VLR1-24PS45-FCCT-H Wattage and Color Selectable 2x4 LED Volumetric Troffer Retrofit Dimmable
Specifications
Specifications
| Part Number# | VLR1-24PS45-FCCT-H |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Schools, Hospitals, Commercial Offices, Hospitality, Retail, Healthcare / Disinfection |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 3,640 - 6,300 |
| Wattage: | 45 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, CUL Listed, Dimmable, DLC Approved, FCC Compliant, ROHS, UL Listed |
| CRI: | 80+ |
| Dimensions: | 47.8" x 23.9" x 3.1" |
| Width: | 23.9" |
| Length: | 47.8" |
| Height: | 3.1" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 14 lbs |
| Manufacturer: | Eiko |
| Technology: | LED - Retrofit Kit |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
ShineRetrofits Input:

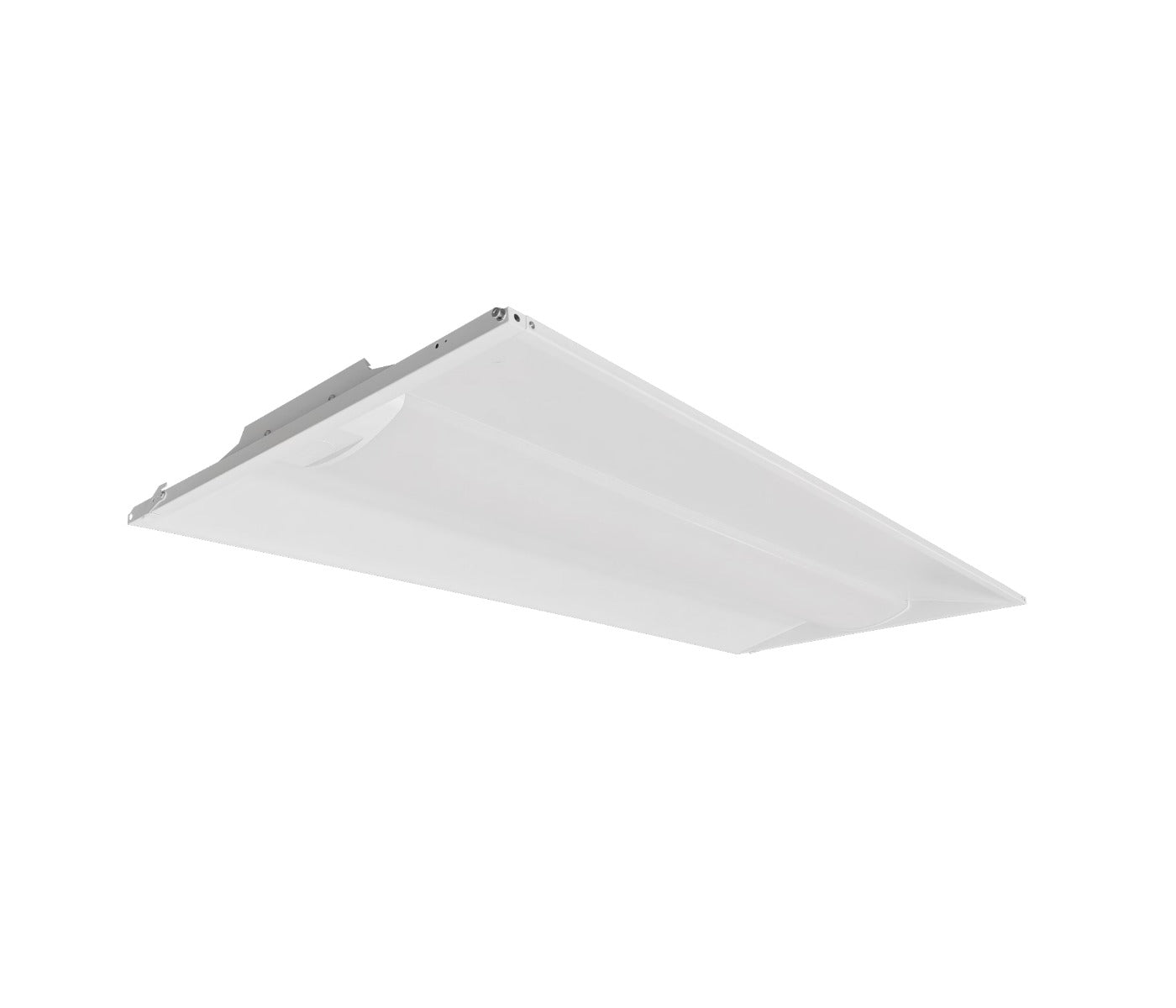

Eiko's VLR1 2x4 LED Volumetric Troffer Retrofit is designed with PowerSet and FieldCCeT features, ensuring flexibility and control. It offers a flicker-free lighting experience, and it comes with an integrated sensor holder for additional control options. It is an energy-efficient solution with a maximum output of 45 watts, delivering an impressive 6,300 lumens of illumination. The Color Rendering Index (CRI) of 80+ ensures accurate color representation, while the 110° beam angle provides wide and even light distribution. The construction of this troffer retrofit is both durable and aesthetically pleasing, with a white powder-coated steel frame and an acrylic lens, making it suitable for a variety of architectural settings.
Features:
HIGHLIGHTS
• Controls Ready Architectural recessed retrofit luminaire
• Controls Ready makes adding controls quick and easy. Includes snap-in receptacle for Standalone (Sept ‘23) and Networked Lighting Controls
• Available in 1’x4’, 2’x2’ and 2’x4’
• Flat modern lens featuring high-quality, non-yellowing PMMA acrylic lens ensures optimal light uniformity
• 5 Piece Design, door housing, 2 support brackets and 2 optional side plates to fill the gaps between the fixtures existing ceiling T-bar ensures stability and security
• PowerSet feature allows for multiple lumen stops out of the box
• FieldCCeT features provides multiple color temperature settings in one fixture
CERTIFICATIONS
• UL listed for US & Canada
• RoHS Compliant
• FCC Compliant
• ICES-005 Compliant
• Damp Location rated
• DesignLights Consortium® Qualified - meets DLC requirements for efficacy and lumen maintenance
PERFORMANCE
• High efficacy, up to 140 lm/W
• Available in PowerSet models: power-selectable 35/30/22W, 45/35/26W, 90/75/65W
• Available in FieldCCeT models: fieldselectable CCT 35/40/5000K
• CRI: >80
• Estimated L70: 100,000 Hours
ELECTRICAL
• Input voltage: 120-277V or 120-347V
• 0-10V dimming, dim-to-off
• 12VDC Aux, 100mA max
• Surge Protection: 2.5 kV
• Power Factor: >0.9
• THD: <20% THERMAL
• -40°F to 122°F (-40°C to 50°C) ambient operating temperature
• Ambient operating temperature with sensor (see selected sensor datasheet)
CONSTRUCTION
• White powder coated steel housing
• IK07 Rated non-yellowing PMMA light diffusing acrylic lens
WARRANTY
• 5-Year limited warranty available online. Contact your EiKO sales rep for additional details.
APPLICATIONS
• Office
• Hospital
• Campus
• Classroom
• Retail
• General Purpose lighting
