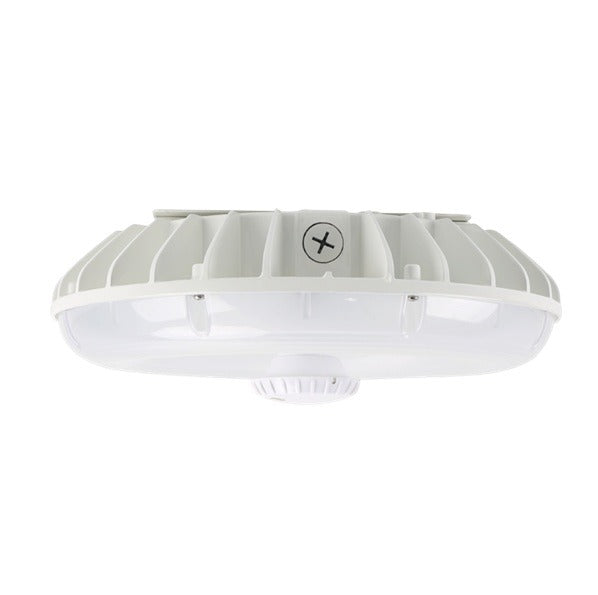

Dauer DCP0360W27VDDKWDPGAD LED Circular Canopy Light – Dimmable, Wattage & Color Temp Selectable
Dauer DCP0360W27VDDKWDPGAD LED Circular Canopy Light – Dimmable, Wattage & Color Temp Selectable
Specifications
Specifications
| Part Number# | DCP0360W27VDDKWDPGAD |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Parking Garage |
| Color Temp: | Selectable CCT |
| Lumen Output: | 3,500 - 7,700 |
| Wattage: | 60 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | 70 |
| Dimensions: | 12" x 3.32" |
| Length: | 12" |
| Height: | 3.32" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5.73 lbs |
| Manufacturer: | Dauer |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
The Dauer DCP03 Circular Canopy Light Fixture is designed for efficiency with tunable wattage and color settings. Delivering 3,500 to 7,700 lumens with a 70 CRI, it ensures reliable and accurate illumination. This dimmable LED canopy light operates on a 120-277V input voltage and is DLC Premium Listed for its performance. Replacing up to 250W metal halide fixtures, it offers long-lasting value backed by a 5-year limited warranty.
Features:
• Rugged die-cast aluminum housing with integral heat sink fins.
• Housing is completely sealed against moisture and environmental contaminants.
• The exterior is protected by a rust-resistant powder coat finish that provides superior resistance to weathering and corrosion.
• Parking garage light distribution.
• Light engines are available in standard 4000K and 5000K configurations.
• A range of lumen options available from 4,000 to 12,300 Lumens, replacing up to 250W metal halide.
• Impact and UV-resistant polycarbonate lens is precisely designed to give a specific light distribution, maximizing efficiency and application spacing.
• Surface-mount or pendant mount options are available.
• Quick-mount bracket eliminates the need to open the luminaire for installation.
• 5 Year Limited Warranty.
• Universal 120-277V input voltage.
• 0-10V dimming driver(s) standard.
• THD: ≤20%, Power Factor: ≥90%.
• DesignLights Consortium® (DLC) Premium qualified.
• UL listed for wet locations.
• Rated for ambient operating temperature -40˚F to 113˚F (-40˚C to 45˚C).
