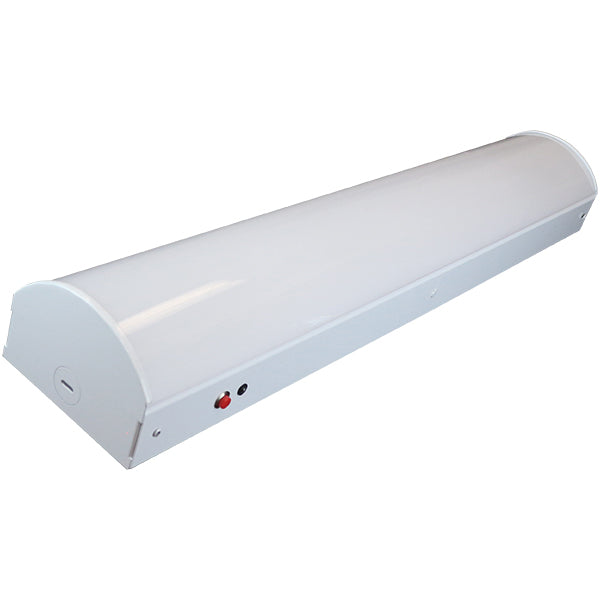

Barron Lighting SSF-2-CP DLC Premium Listed 10/15/20/30 Watt 2Ft LED Linear Stairwell Fixture Switchable CCT and Wattage with Integral Microwave Sensor
Barron Lighting SSF-2-CP DLC Premium Listed 10/15/20/30 Watt 2Ft LED Linear Stairwell Fixture Switchable CCT and Wattage with Integral Microwave Sensor
-
Specsheet:
Specifications
Specifications
| Part Number# | SSF-2-CP |
|---|---|
| Type of Area: | Hangers & Storage, Home & Architectural, Office & Small Retail, Schools, Hotels, Commercial Offices, Retail |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 10W (1290) | 15W (1980) | 20W (2810) | 30W (3850) |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, ETL Listed |
| CRI: | 80 |
| Dimensions: | 24.0" x 4.4" x 3.0” |
| Width: | 4.4" |
| Length: | 24.0" |
| Height: | 3.0” |
| Dimmable: | No |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 4.4 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
| Fixture Length: | 2 Feet / 24 Inches |
Details
Details
ShineRetrofits Input:
This SSF-2-CP is a versatile and durable 2-ft LED Linear Stairwell Fixture, ideal for stairwells and similar applications. Its steel enclosure with a white powder-coated finish, vandal-resistant hardware, and UV-stabilized polycarbonate lens ensures long-lasting performance. This fixture features switchable wattage (10W, 15W, 20W, 30W) and CCT (3000K, 3500K, 4000K), delivering up to 3850 lumens with 130 LPW efficiency and an expected lifespan exceeding 100,000 hours. With integrated features like a microwave motion sensor, dimming driver, and an optional battery backup, it ensures energy savings, compliance, and reliability for any stairwell environment.
SPECIFICATIONS:
Construction:
• Durable 4-3/8” width, 22-gauge steel enclosure in a white powder coated finish, IK08 impact tested, 2’ and 4’ length
• Vandal-resistant Pin-In Torx hardware
• Flanged housing ends secure the lens in place
• Several knockouts across the bottom of the housing and the two ends
• All visible hardware in a white finish to match the enclosure
Optics/LEDs:
• UV-stabilized frosted polycarbonate lens offering an even, diffused light
• Units provide a range of lumen packages by simply selecting the wattage desired for your application;
• 2’ unit – wattage selectable from 10W through 30W offering up to 3850 lumens
• 4’ unit – wattage selectable from 12W through 40W offering up to 5320 lumens
• Switches are located inside the fixture
• Significant energy savings compared to traditional light sources with up to 130 LPW
• Color switchable between 3000K, 3500K, and 4000K CCT. The switch is located inside the fixture.
• L70 >100,000 hours
• CRI ≥80
Electrical:
• Class 2 power supply, 120 to 277VAC, 50/60Hz
• 0-10V dimming driver, 1-100% flicker-free dimming
• 12V auxiliary output from the driver
• 4KV driver protection
• All units are provided with an integral microwave sensor, centered behind the lens. The sensor allows for 2 or 3-step-level dimming and has optional daylight harvesting capabilities. Settings can be adjusted via an optional remote control accessory. See sensor details for default sensor settings.
• Sensor can easily be disabled for on/off fixture operation
Testing & Compliance:
• cETLus Listed for Damp Locations
• Operating temperatures: -20°C to 40°C (-40°F to 104°F)
• DesignLights Consortium® (DLC) PREMIUM Qualified in the stairwell and linear ambient category (consult QPL for qualified models)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
Options:
• Integral battery Backup (BB option) offers 875 lumens and over 90 minutes of emergency-powered illumination for the path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
