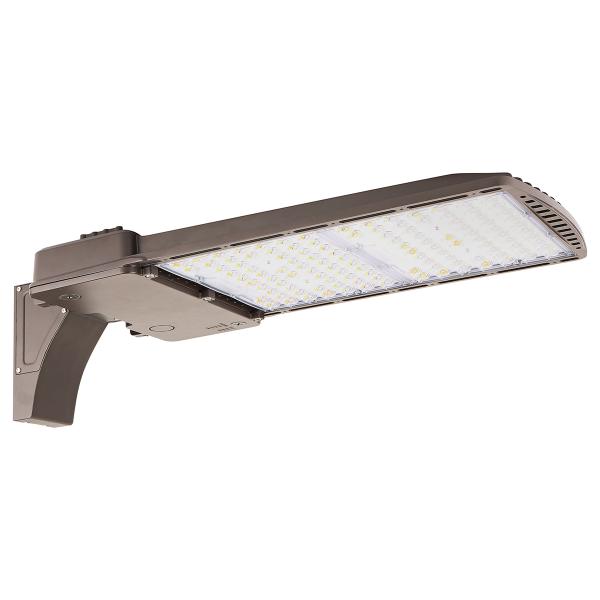

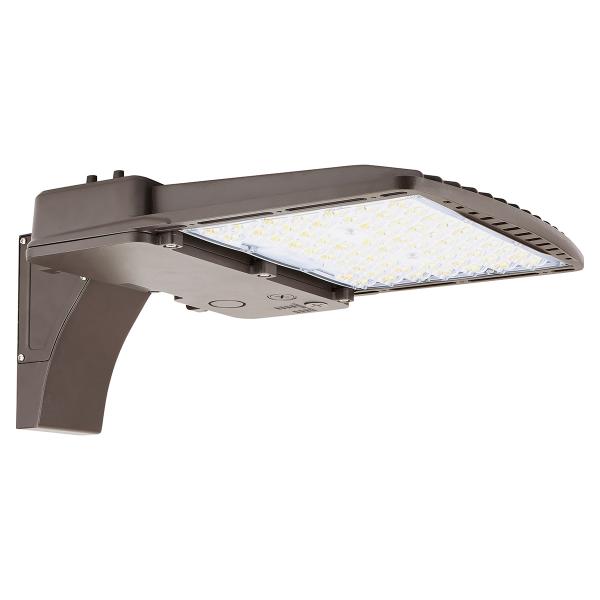

Barron Lighting RXAR Series Wattage and Color Selectable LED Area Light Fixture Dimmable
Barron Lighting RXAR Series Wattage and Color Selectable LED Area Light Fixture Dimmable
Specifications
Specifications
| Part Number# | RXAR |
|---|---|
| Type of Area: | Gym & Sports, Pole / Street / Parking Lot, Road & Street |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 6,400 - 60,000 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, IP65 / IP66 / IP67, UL Listed |
| CRI: | ≥80 |
| Width: | 13.01" |
| Length: | 15.59" - 24.90" |
| Height: | 2.52" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -40 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 12.0 - 18.5 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
Barron Lighting RXAR Series sets a new standard in LED area lighting, blending robust performance with exceptional versatility. Crafted from durable die-cast aluminum and equipped with high-efficiency LEDs achieving up to 172 lumens per watt, it ensures longevity and energy efficiency. Available in various distributions and wattages from 40 to 400 watts, with field-switchable CCT options, it caters to diverse lighting requirements while maintaining zero uplight to combat light pollution. Designed for ease of installation and maintenance, it includes a straight arm for universal mounting and features a hinged driver access door, making it ideal for various outdoor applications.
Construction:
• Sleek die-cast aluminum housing with stainless steel hardware and powder-coated finish
• Integral heat sink fins maximize heat dissipation
• Hinged driver access door for ease of maintenance
• Straight arm for 4” and 5” square or round pole included standard, other mounting accessories available
• Slotted bolt pattern suitable for retrofit to most existing drill hole patterns
• Includes a 12” whip (5 conductors provided for convenience, dimming leads not connected)
Optics/LEDs:
• 40 to 400 Watts with lumen packages up to 60,000 lumens
• Designed with zero uplight to eliminate light pollution
• Efficacies up to 172 LPW maximize energy savings and utility rebates
• Type II, III, IV, and V distributions optimize light distribution
• Easily field switchable between 3000K, 4000K, and 5000K CCT (4000K and 5000K for 400W models)
• L70 of >100,000 hours
• L90 of 40,000 hours
• CRI ≥80
Electrical:
• Class 2 power supply, 120-277VAC, 50/60Hz
• 0-10V Dimming driver
• Power Factor ≥ 0.90
• 347/480VAC Dedicated driver option
• 10KA(@120-277V) or 20KA(@347-480V) surge protection
Testing & Compliance:
• cULus Listed for Wet Locations, tested to meet IP65 requirements
• DesignLights Consortium® (DLC) PREMIUM Qualified (consult QPL for qualified models)
• Operating temperature: -40°C to 45°C (-40°F to 113°F), -40°C to 40°C (-40°F to 104°F) for the 400W model
• 3G Vibration rated enclosure
Installation:
• Hinged driver door for ease of access (coin plugs on the driver door provide ease of access to dipswitches for power and CCT selectability)
• Standard with pole mount arm suitable for 4” or 5” square or round
poles. Arm features an access door for easy wiring on-site
• Additional contractor-friendly mounts such as slipfitter, trunnion, swivel, adjustable pole mount, and wall bracket
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
• 10 Year Warranty available upon request, consult factory
