Barron Lighting MQHB Series Wattage and Color Adjustable Mini LED Linear Highbay Light Fixture Dimmable
Barron Lighting MQHB Series Wattage and Color Adjustable Mini LED Linear Highbay Light Fixture Dimmable
Specifications
Specifications
| Part Number# | MQHB |
|---|---|
| Type of Area: | Gym & Sports, Industrial & Warehouse, Large Retail & Open Areas, Manufacturing Plants, Factory / Industrial, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 13,800 - 60,000 |
| Wattage: | 400 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed, Title 24 Compliant |
| CRI: | ≥80 |
| Width: | 10.2" |
| Length: | 16.5" - 44.1" |
| Height: | 1.8" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 5.5 - 13.0 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:

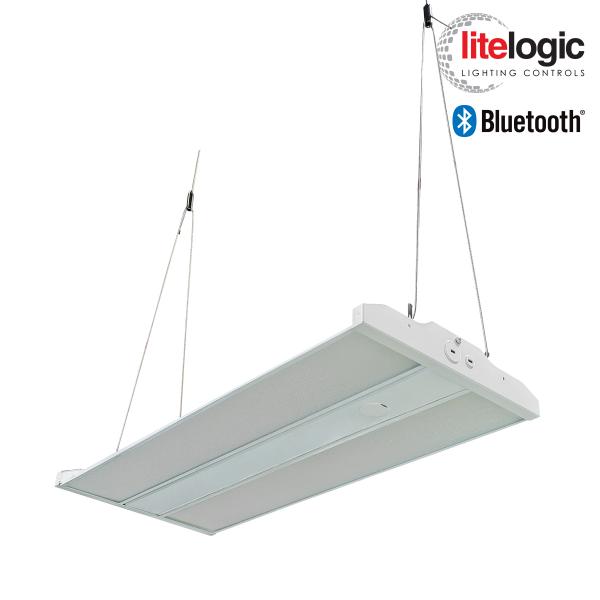

Barron Lighting's Trace-Lite MQHB Series Mini LED Linear Highbay is a compact and low-profile light fixture offering superb performance and energy efficiency. It is a cost-effective solution available in both static and CCT/power selectable configurations, with outputs up to 60,000 lumens. The fixture is designed for versatility, featuring options such as general or aisle lens distribution, integral battery backup, line cords, and accessories like LiteLogic Bluetooth® enabled sensors, 480V step-down transformers, and various mounting kits. Ideal for large interior spaces with mounting heights up to 50 feet, the MQHB Series is also DesignLights Consortium® (DLC) PREMIUM Qualified for energy rebates.
SPECIFICATIONS
Construction:
• Die-formed steel housing in a white finish
• Polycarbonate lens offered in both a standard wide (120°) and optional Aisle lens distribution (40°x110°)
• Mini configuration, as small as 10.2” wide and 16.5” long
• Isolated central driver compartment optimizes thermal dissipation
• Built-in receptacle on the front panel for easy plug-and-play sensor installation
• ½” knockout on both ends as well as in the central panel
Optics/LEDs:
• Standard wide (120°) and optional Aisle lens distribution (40°x110°)
• Multiple lumen packages from 13,800 to 60,000 lumens
• Available in 4000K or 5000K CCT
• Two configurations are CCT (4000K/5000K) & power switchable (3 levels):
• 135W (15,000lm, 18,500lm, 20,250lm)
• 200W (23,250lm, 27,750lm, 30,000lm)
• Switch located and easily accessible outside the enclosure (on switchable configurations maximizes energy savings and utility rebates
• Efficacy up to 150lm/w
• CRI ≥80
• L70 > 100,000hrs
• L90 > 40,000hrs
Electrical:
• Class 2 power supply, Universal 120-277VAC, 50/60Hz
• Power Factor > 0.90
• 0-10V Dimming driver
• 480V Step-Down Option
• Built-in drive surge protection L-N: 4kV, L/N-GND: 6kV
Testing & Compliance:
• cULus Listed for Damp Locations
• DesignLights Consortium® (DLC) PREMIUM Qualified (consult QPL for qualified models)
• Meets State of California Title 24 requirements for dimming and control of light fixtures
• Operating temperatures: -20°C to 50°C (-4°F to 122°F) (When a fixture is a minimum of 18” from the ceiling)
Accessories:
• Plug and Play Occupancy Sensors – receptacle built on the central front panel
• Dimming occupancy sensor, PIR, with daylight harvesting capabilities, 3.5mm AUX port (TL-MSP12)
• Litelogic Wireless Bluetooth PIR Sensor with daylight harvesting capabilities, 120/277VAC, 3.5mm AUX port (LE-MS3-AUX-HB1)
• Remote for TL-MSP12 occupancy sensor (TL-MSSW-REMOTE)
• Stem or conduit mounts allow for surface or conduit mount installation
• Wireguard kit for field installation
• Multiple line cords (indoor rated) for field installation (LC6, LC15)
• Field-installed In-line 10kVA surge protector for 120/277VAC, 320V, 420J (20300032)
• Field-installed In-line 10kVA surge protector for 480VAC, 1500V, 570J (20300033)
Warranty:
• Five Year Warranty (Terms and Conditions Apply)
