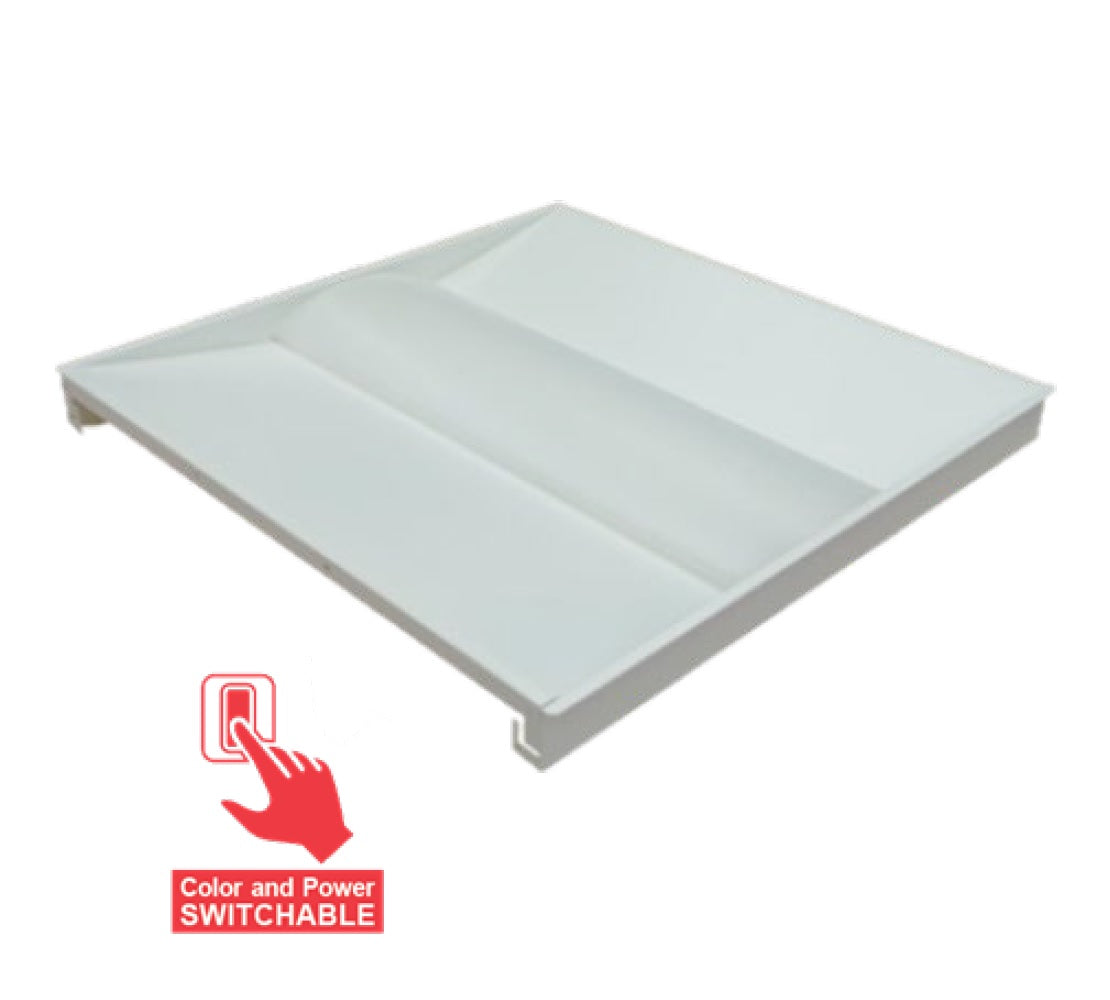

Barron Lighting CBLQ-24-CP DLC Premium Listed Wattage and Color Adjustable 2x4 LED Center Basket Troffer Light Fixture Dimmable
Barron Lighting CBLQ-24-CP DLC Premium Listed Wattage and Color Adjustable 2x4 LED Center Basket Troffer Light Fixture Dimmable
-
Specsheet:
Specifications
Specifications
| Part Number# | CBLQ-24-CP |
|---|---|
| Type of Area: | Gas Station & Convenience Store, Office & Small Retail, Schools, Hospitals, Commercial Offices, Retail |
| Lamp Life: | 100,000 Hours |
| Lumen Output: | 4,250 - 6,250 |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, DLC Premium, UL Listed |
| CRI: | 80 |
| Dimensions: | 47.8" x 23.75" x 2.12" |
| Width: | 23.75" |
| Length: | 47.8" |
| Height: | 2.12" |
| Dimmable: | Yes |
| Product Warranty: | 5 Year |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | Multivolt 120V-277V |
| Weight Each: | 11.5 lbs |
| Manufacturer: | Barron |
| Technology: | LED - New Fixture |
| Fixture Length: | 4 Feet / 48 Inches |
Details
Details
Barron Lighting CBLQ-24-CP DLC Premium Listed Wattage and Color Adjustable 2x4 LED Center Basket Troffer Light Fixture Dimmable
SPECIFICATIONS
Construction:
• Precision die-formed steel housing in a white finish
• Low profile design, only 2.1” thick
• Recessed design fits most standard T-bar grid ceilings
• Wattage and CCT switches located on driver junction box
• Large driver box for easy installation and wiring
Optics/LEDs:
• PMMA diffused lens providing uniform soft light, 120° distribution
• Efficacies up to 127 LPW maximize energy savings and utility rebates
• Switchable from 3500K, 4000K and 5000K CCT. Switch located on the side of the driver box
• CRI ≥80
• L70> 100,000 hours
• Reported L90 of 54,000 hours
Electrical:
• 120-277VAC, 50/60Hz
• 0-10V Dimming driver
• Power Factor > 0.90
• Power switchable, switch located on the side of the power box
o 2x4 configuration between 34w, 42w and 50w
Installation:
• Unit simply lifts through grid ceiling and rests on T-bars
• Easy installation in new construction or retrofit
• Standard recessed mounting in most 2’x2’ or 2’x4’ grid ceiling
• Surface mounting
• Earthquake clips included
• Easily set wattage and CCT during installation using the adjustment switches located on the driver box
Options:
• Integral battery backup offers up to 1000 lumens of emergency powered
illumination for 90 minutes for path of egress. Rated for ambient temperatures of 0°C to 40°C (32°F to 104°F)
Accessories:
• Optional Surface Mount Kit (LPX-22-SMK and LPX-24-SMK)
• Optional Flange mount Kit (LP22-FMK and LP24-FMK)
• Optional Y-Cable Suspension Mount Kit (LPX-CMK)
• Field-installed 6’ Metal clad whip (6 conductor, #18, for use in dimming applications)
Testing and Compliance:
• cULus listed for wet locations, rated for insulated ceilings (IC rated)
• IP65 rated
• DesignLights Consortium® (DLC) PREMIUM Qualified
• Operating temperatures: -20°C to 45°C (-4°F to 113°F)
Warranty:
• Five Year warranty (terms and conditions apply)
