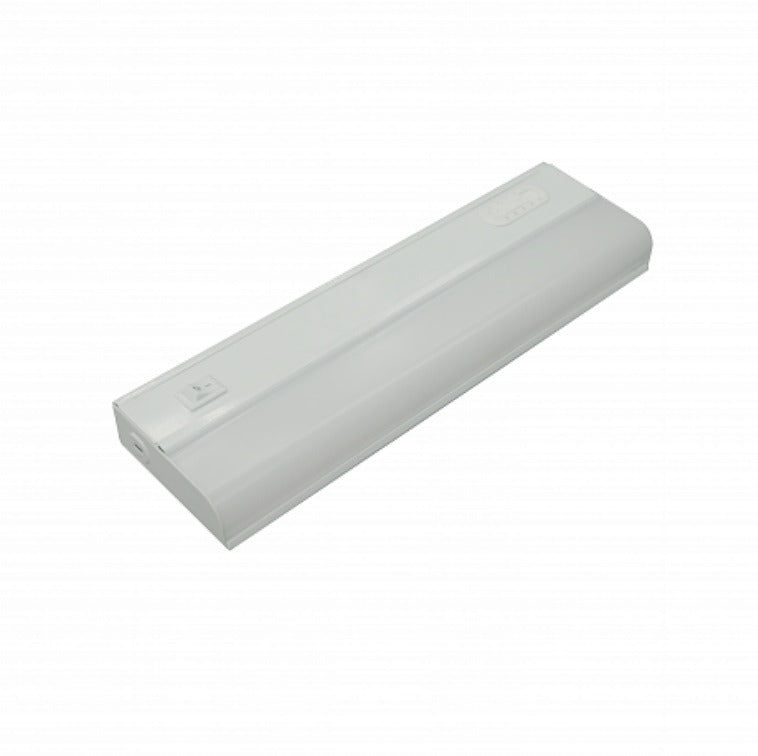

ASD Lighting ASD-UBN Series Color Selectable LED Under Cabinet Bullnose Light Fixture TRIAC Dimming
ASD Lighting ASD-UBN Series Color Selectable LED Under Cabinet Bullnose Light Fixture TRIAC Dimming
Specifications
Specifications
| Part Number# | ASD-UBN-12WH |
|---|---|
| Type of Area: | Home & Architectural, Office & Small Retail, Commercial Offices, Hospitality, Retail |
| Color Temp: | Selectable CCT |
| Lamp Life: | 41,001 - 50,000 Hours |
| Lumen Output: | 382 - 1,051 |
| Wattage: | 12 Watt |
| Ballast Start Type: | Instant Start |
| Certifications | 5 Year Warranty, Dimmable, UL Listed |
| CRI: | > 90 |
| Width: | 3.5" |
| Length: | 12" - 24" |
| Height: | 1.12" |
| Dimmable: | Yes |
| Product Warranty: | 5 year limited warranty |
| Minimum Start Temperature: | -4 Deg F |
| Voltage: | 120V |
| Weight Each: | 1 - 1.6 lbs |
| Manufacturer: | ASD Lighting |
| Technology: | LED - New Fixture |
Details
Details
ShineRetrofits Input:
ASD Lighting's LED Under Cabinet Bullnose Light offers customizable lighting with an easy on/off switch, perfect for hidden backlighting. Its acrylic lens with a 110° beam angle and CRI90+ ensures even light distribution, operating on a 120V circuit. With selectable color temperatures (2700K to 5000K) and smooth dimming from 10% to 100%, it adapts to any ambiance. Quick to install and rated for damp locations, this fixture has a long lifespan of 50,000 hours and comes with a 5-year warranty for quality assurance.
Features:
• DESIGN. LED UNDER CABINET BULLNOSE LIGHT with ON/OFF switch is perfect for a hidden backlight. The acrylic lens with a 110° beam angle and CRI90+ grants you even light distribution. It is designed to operate on 120V circuits.
• COLOR SELECTABLE. You can choose a 2700K soft white, 3000K warm white, 3500K neutral white, 4000K cool white, or 5000K daylight color temperature.
• DIMMING. Smooth triac dimming capabilities ranging from 10% to 100% with modern LED dimmers allow you to control the look and feel of your space.
• INSTALLATION. Quick and easy hardwired installation. It is also Damp Locations rated.
• ADVANTAGES: With a lifespan of 50,000 hours, these fixtures are made to last decades under normal operation! ASD provides a 5-year limited warranty and UL certification to guarantee top-quality products and safety!
