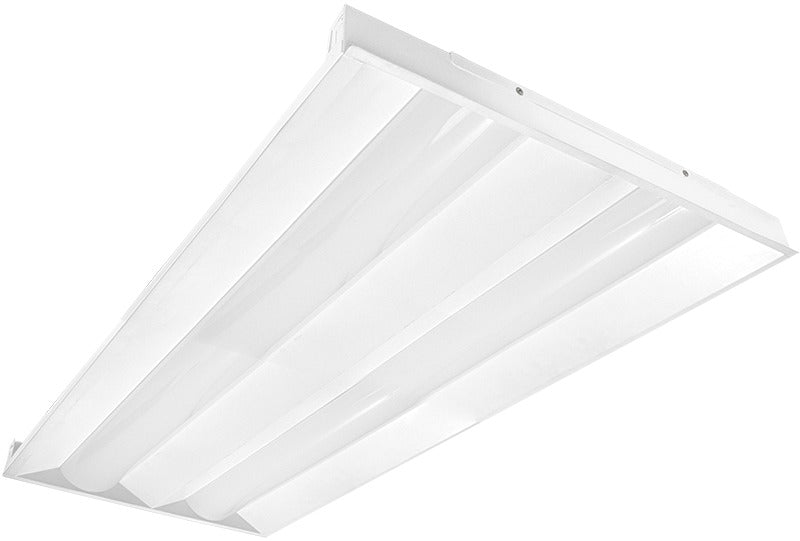

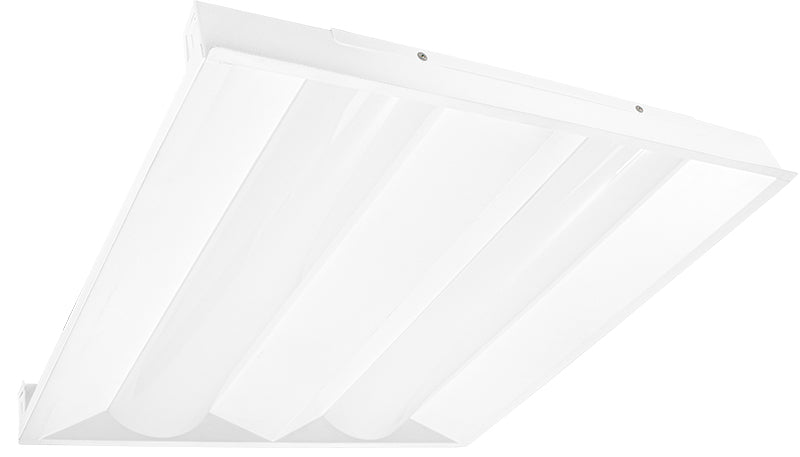

Westgate LTRD Series Wattage and Color Selectable LED Dual Lens Troffer Light Fixture Dimmable
PART# LTRD
Web Price
Please call 1-800-983-1315 for the lowest available price
- Lumen:3,150 - 6,250lm
- Wattage:50 Watt
-
| Type of Area | Office & Small Retail, Schools, Hospitals, Commercial Offices, Education, Hospitality, Retail, Healthcare / Disinfection |
|---|---|
| Certifications | UL Listed, IP20 |
| Color Temp | Selectable CCT |
| Dimmable | Yes |
| Lamp Life: | 50,000 Hours |
| CRI | ≥ 80 |
| Length | 23..75" - 47.5" |
| Width | 23.75" |
| Height | 2.40" |
| Lumen Output: | 3,150 - 6,250 |
| Manufacturer | Westgate |
| Product Warranty | 5 Year |
| Part Number | LTRD Series |
| Minimum Start Temperature | -20 Deg F |
| Technology | LED - New Fixture |
| Voltage | Multivolt 120V-277V |
| Wattage | 50 Watt |
| Power Factor | >0.92 |
ShineRetrofits Input:
Westgate's LTRB Series LED Back-Lit Troffer Light Fixture is perfect for various indoor commercial applications, from hotels to offices. It provides soft, wide light emission with a rated life of 50,000 hours. Featuring multiple color temperature and power options, this fixture includes pre-installed earthquake and suspension hooks for easy installation. With a beam angle of 110°, no flickering or RF interference, and an external driver mounted on top, it ensures both performance and reliability. The fixture also comes with a 5-year warranty for added peace of mind.
Features:
• High-quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
• Multi CCT: Selectable Multi-CCT & Power Switches Inside The Driver Box
• Dimmable: 0~10V Dimming
• Total Lumens: 3150LM/ 3750LM/ 4375LM
• Color Temperatures: 3500K/4000K/5000K
• Color Rendering Index: CRI ≥ 80
• IP Rating: IP20 Indoor use only
• Driver disconnect provided where required to comply with US and Canadian codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• 50,000 Hours Rated Life
• Lens: Polycarbonate
• 5-Year Warranty
ShineRetrofits Input:
Westgate's LTRB Series LED Back-Lit Troffer Light Fixture is perfect for various indoor commercial applications, from hotels to offices. It provides soft, wide light emission with a rated life of 50,000 hours. Featuring multiple color temperature and power options, this fixture includes pre-installed earthquake and suspension hooks for easy installation. With a beam angle of 110°, no flickering or RF interference, and an external driver mounted on top, it ensures both performance and reliability. The fixture also comes with a 5-year warranty for added peace of mind.
Features:
• High-quality LED Chips Provide High Efficiency, Heat Dissipation, Stability, and Lumen Maintenance
• Multi CCT: Selectable Multi-CCT & Power Switches Inside The Driver Box
• Dimmable: 0~10V Dimming
• Total Lumens: 3150LM/ 3750LM/ 4375LM
• Color Temperatures: 3500K/4000K/5000K
• Color Rendering Index: CRI ≥ 80
• IP Rating: IP20 Indoor use only
• Driver disconnect provided where required to comply with US and Canadian codes
• Performance Engineered Optical Lens Assembly Delivers Unique Beam Angles and Reduces Glare
• 50,000 Hours Rated Life
• Lens: Polycarbonate
• 5-Year Warranty
